PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 600 × 990 mm
Seat width	490 mm
Seat depth	450 mm
Seat height range (lowest to highest)	420 mm to 520 mm
Backrest height above seat	420 mm
Armrest height above seat	210 mm
Five-star base outer diameter	640 mm
Caster diameter	50 mm
Side panel thickness	15 mm
Seat cushion thickness	80 mm
Knee clearance under seat (lowest position)	160 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	16 kg
Seat foam density	45 kg/m³
Back foam density	35 kg/m³
Foam rebound rate	45%
Gas lift static load rating	150 kg
Five-star base static load rating	1136 kg
Caster rolling durability	100000 cycles
Tilt mechanism durability	100000 cycles
Recommended maximum user weight	136 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Quilted light off-white faux leather with visible diamond stitching
Outer side panels	Bent plywood with light oak veneer finish, dark brown edge trim
Integrated armrests	Padded, upholstered to match seat/back, supported by wood side structure
Internal seat frame	12 mm thick molded plywood
Internal back frame	10 mm thick molded plywood
Tilt mechanism	3 mm thick black powder-coated steel
Gas lift	Chrome-plated steel Class 3 gas lift, 50 mm outer diameter, 100 mm stroke
Five-star base	Polished die-cast aluminum, 2.5 mm wall thickness
Casters	Black nylon twin-wheel casters with PU tread, 50 mm diameter
Upholstery stitching	10 stitches per 100 mm seam pitch
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic height adjustment via right-side lever, 100 mm total vertical stroke
360-degree swivel rotation	Full 360-degree horizontal rotation enabled by central swivel joint between seat and gas lift
Tilt function with tension adjustment	Rearward tilt of 12 degrees from upright position, adjustable tilt tension via front knob to match user weight
Tilt lock	Lockable upright position via left-side lever for fixed seating posture
Rolling mobility	Smooth rolling on all five casters, suitable for hard wood, tile and low-pile carpet surfaces
Fixed integrated armrests	Padded armrests fixed to wood side panels, providing consistent arm support with no height or width adjustment
Weight-activated tilt support	Tilt resistance automatically adjusts partially with user weight for balanced recline
Synchro-tilt seat tracking	Seat tilts 5 degrees backward in coordination with backrest tilt to maintain consistent leg contact
Recline Angle / Lock Reference	125° with 3 suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office	Suitable for senior staff workspaces, providing professional appearance and ergonomic support for 8 hours daily use
Conference and meeting rooms	Appropriate for boardroom and meeting spaces, with fixed armrests and polished finish for formal meeting environments
Home office workspace	Ideal for residential home offices, with low-profile refined design that complements modern residential interiors
Boutique coworking spaces	Suitable for premium coworking private offices and dedicated desk areas, balancing style and functional adjustability
Consultation and client seating	Usable for client-facing areas such as design studios, legal offices and consulting firms, conveying professional approachable aesthetic
Formal conference and meeting rooms	Appropriate for boardroom and meeting spaces, with fixed armrests and refined finish for professional meeting environments
Premium boutique coworking spaces	Suitable for premium coworking private offices and dedicated desk areas, balancing style and functional adjustability for diverse user groups
Client-facing consultation areas	Usable for client-facing spaces such as design studios, legal offices and consulting firms, conveying a professional, approachable aesthetic

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Applicable European standard for office work chairs, defining dimensional and safety requirements for seating used in office environments
EN 1335-2:2018	Applicable European standard for office chair safety, strength and durability requirements for structural components
EN 1335-3:2009	Applicable European standard for office chair test methods to validate structural and functional performance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applicable North American standard for general-purpose office chairs, defining static load, durability and stability test requirements
Recommended maximum user weight	136 kg

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Applicable standards and test results require confirmation
GB/T 24821-2009	Applicable standard for office swivel chairs, to verify stability, strength and durability of base, gas lift and mechanism
GB 18584-2001	Applicable standard for formaldehyde and VOC emission limits for wood and upholstered furniture components, to confirm indoor air quality compliance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Applicable standards and test results require confirmation;
2. GB/T 24821-2009: Applicable standard for office swivel chairs, to verify stability, strength and durability of base, gas lift and mechanism;
3. GB 18584-2001: Applicable standard for formaldehyde and VOC emission limits for wood and upholstered furniture components, to confirm indoor air quality compliance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · 1725-X09

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · 1725-X09

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · 1725-X09Open Export Tool

Quick Actions

Post an RFQ

Product Description

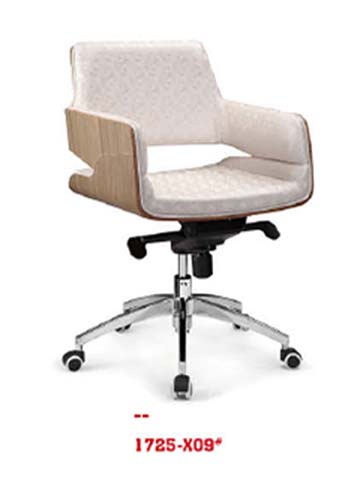

The Modern Upholstered Swivel Executive Office Chair with Wood Side Panels (model 1725-X09, unbranded) presents a refined, balanced silhouette that blends soft upholstered forms with structured natural wood accents. Quilted light off-white faux leather with diamond stitching covers the padded seat and contoured backrest, flanked by bent plywood side panels finished in light oak veneer with dark brown edge trim. Padded, upholstered armrests integrate directly with these wood side panels, creating a cohesive, streamlined profile anchored by a polished aluminum five-star base. Overall proportions follow standard mid-back executive chair dimensions, with a compact footprint that avoids visual bulk in both open and enclosed spaces. Construction provides supportive internal molded plywood frames for the seat and back with a black powder-coated steel tilt mechanism, chrome-plated steel gas lift, and black nylon twin-wheel casters with PU tread. Seat and backrest padding uses high-resilience foam sized for medium-firm, long-wear support, with a dedicated lumbar support zone built into the backrest structure. Functional features are tailored for flexible daily use: pneumatic seat height adjustment operates via a right-side lever, with full 360-degree swivel rotation for easy reach across work surfaces. The synchro-tilt mechanism coordinates 5 degrees of backward seat tilt with 12 degrees of backrest recline, with adjustable tension controlled via a front under-seat knob, partial weight-activated resistance for balanced recline, and a left-side lever to lock the chair in an upright position. The five casters roll smoothly across hardwood, tile, and low-pile carpet surfaces. Fixed integrated armrests deliver consistent upper body support without protruding adjustment hardware. This chair fits a wide range of commercial and residential settings, including private executive offices, formal conference and boardrooms, residential home offices, premium boutique coworking spaces, and client-facing consultation areas such as design studios, legal offices, and consulting firms. Its light wood and neutral upholstery palette complements both mid-century modern and contemporary interior schemes, while its durable build supports both individual daily use and multi-user shared environments. For procurement planning, note the chair ships knocked down in two cartons, with reference assembly time of 40 minutes per unit. Container loading references support bulk order planning, and purchasers should confirm material grade, coating specifications, and exact component details directly with suppliers prior to final order placement, as some finish and thickness details are not confirmed via supplier documentation. The chair supports a maximum recommended user weight aligned with general office seating load standards, making it suitable for broad user groups across intended applications.

Modern Upholstered Swivel Executive Office Chair with Wood Side Panels Specifications
