PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	540 × 600 × 850 mm
Seat height from floor	450 mm
Seat width	480 mm
Seat depth	460 mm
Seat padding thickness	60 mm
Backrest height above seat	400 mm
Backrest width at widest point	460 mm
Leg spread width at floor	540 mm
Leg section thickness	30 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	8 kg
Static seat load capacity	150 kg
Recommended user weight limit	120 kg
Seat foam density	40 kg/m³
Back foam density	30 kg/m³
Foam rebound rate	60%
Fabric abrasion resistance	30000 Martindale cycles
Leg static load per leg	50 kg
Seat cushion foam density	40 kg/m³
Backrest foam density	30 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Lime green woven polyester fabric
Seat cushion core	High-density polyurethane foam
Back cushion core	Medium-density polyurethane foam
Seat and back shell	12mm dark walnut-stained bent plywood
Support legs	Solid beech wood with dark walnut stain
Frame under-seat cross support	Metal mounting plates with wood screws
Foot glides	Black plastic floor protection glides
Upholstery attachment	Concealed staple fastening to bentwood shell
Seat and backrest upholstery fabric	Lime green matte woven polyester fabric, 1mm thickness
Backrest cushion core	30 kg/m³ medium-density polyurethane foam, 40mm thickness
Seat and back structural shell	12mm dark walnut-stained bent laminated beech plywood
Under-seat frame connection hardware	2mm thick zinc-plated steel mounting plates with wood screws

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating position	Fixed upright ergonomic posture with 10 degree backrest recline
Floor protection	Included plastic glides prevent scratching on tile, wood and laminate floors
Assembly requirement	Knock-down leg attachment to pre-assembled seat/back shell
Stacking capability	Non-stackable construction
Swivel function	Fixed non-swivel base
Armrest support	Armless design allows easy under-table tucking
Cleaning access	Smooth woven fabric surface allows spot cleaning with mild upholstery cleaner
Backrest tilt angle from vertical	10 degrees
Seating posture support	Fixed upright position with 10 degree backrest recline from vertical, no adjustable tilt mechanism
Floor protection function	Press-fit nylon glides at each leg end eliminate scratching on hard floor surfaces, no casters for stable stationary placement
Rotation function	Fixed non-swivel base, legs rigidly mounted to seat shell with no rotating bearing mechanism
Under-table tucking design	Armless profile with maximum width 480mm at seat, fully tucks under standard dining tables with 720mm minimum knee clearance

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping cartons	1 per chair
Shipping carton dimensions	600 x 640 x 500 mm
Gross weight per carton	10 kg
Carton volume per unit	0.192 CBM
Assembly time per unit	15 minutes
20ft GP container loading quantity	170 units
40ft HQ container loading quantity	420 units
Packaging materials	5-layer corrugated carton, polyethylene foam corner protection, polybag dust cover, hardware packet with assembly tool
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential dining space	Suitable for 6seat dining sets in home dining rooms, armless design allows easy tucking under standard height dining tables
Cafe and bistro seating	Appropriate for casual food service environments, fabric upholstery provides guest comfort for 60 minute dining visits
Meeting room side seating	Usable as guest seating around small conference tables, minimalist design complements modern office interiors
Home office task seating	Suitable as an occasional desk chair for home workspaces, 450mm seat height aligns with standard 750mm desk heights
Waiting area seating	Can be deployed in office reception or salon waiting areas, lightweight construction allows easy repositioning by staff
Recommended table compatibility	Pairs with dining or meeting tables with 750 mm tabletop height for correct ergonomic knee clearance
Residential dining room use	Suitable for 6seat dining sets in home dining areas, armless design allows full tucking under 750mm height dining tables to save floor space
Casual cafe and bistro seating	Appropriate for light commercial food service environments, 30000 Martindale fabric rating withstands regular guest use for 60 minute dining visits

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Furniture - Strength, durability and safety - Requirements for domestic seating, applicable for residential use performance verification
EN 1022:2018	Furniture - Seating - Determination of stability, applicable for tipping resistance testing of the angled four-leg base

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.1 General-Purpose Office Chairs

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to solid wood and bentwood structural components of this chair
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing of bentwood plywood and finish materials
GB/T 19976-2005	Furniture test method for chair and stool strength and durability, applicable for static load, impact and fatigue testing of this chair
GB 20400-2006	Limit of harmful substances in leather and fur, applicable if fabric contains blended fiber components for restricted substance testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to solid wood and bentwood structural components of this chair;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing of bentwood plywood and finish materials;
3. GB/T 19976-2005: Furniture test method for chair and stool strength and durability, applicable for static load, impact and fatigue testing of this chair;
4. GB 20400-2006: Limit of harmful substances in leather and fur, applicable if fabric contains blended fiber components for restricted substance testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DC-FAB-042-GRN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DC-FAB-042-GRN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DC-FAB-042-GRNOpen Export Tool

Quick Actions

Post an RFQ

Product Description

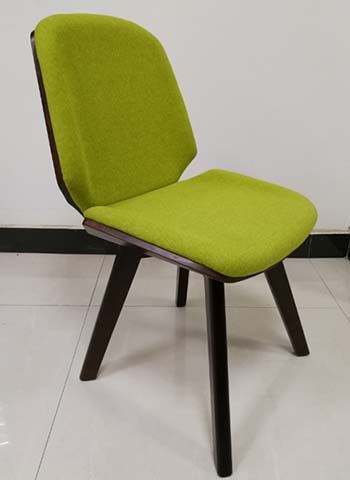

This armless upholstered dining chair, model DC-FAB-042-GRN, features a streamlined mid-century inspired silhouette defined by a continuous curved bentwood shell upholstered in matte lime green woven fabric, supported by four tapered, angled solid beech legs finished in a matching dark walnut stain. Its armless profile creates a clean, uncluttered visual line, with dark stained wood trim peeking neatly along upholstered edges to complement the bright fabric finish.
The chair’s core structure relies on a bent laminated beech plywood shell that delivers integrated rigidity across the seat and back, padded with high-density polyurethane foam in the seat and medium-density polyurethane foam in the backrest for balanced, durable support. The solid beech legs affix to the shell via zinc-plated steel mounting plates secured with wood screws to reduce long-term joint loosening, while press-fit nylon glides at each leg end prevent scratches on hard flooring surfaces including tile, wood, and laminate. The woven fabric surface offers a low-pile, smooth texture that resists crumb trapping, and accommodates spot cleaning with mild upholstery cleaner. Designed for fixed, upright seating with a gentle 10-degree backrest recline, the chair has no swivel, tilt, or stacking functionality, and its armless form tucks fully under standard height dining tables to save unused floor space.
This model fits equally well in residential and light commercial settings: it works as part of home dining sets, occasional home office desk seating, casual cafe and bistro guest seating, small meeting room side chairs, or reception waiting area seating, pairing appropriately with 750mm height tabletops for ergonomic knee clearance.
For procurement, note that final confirmation of exact fabric composition, stain treatment ratings, foam fire ratings, and hardware grade is required from supplying partners prior to bulk order placement. The chair ships knock-down, with legs requiring attachment to the pre-assembled seat and back shell, and is packaged in protective corrugated cartons with foam corner protection and included assembly hardware. Its rated static seat load capacity aligns with light commercial and residential use standards, with a fabric abrasion rating suited to regular light-traffic dining environments.

Fabric Upholstered Dining Chair with Dark Wood Angled Legs Specifications
