PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	640 × 620 × 1010 mm
Seat height	450 mm
Seat width	500 mm
Seat depth	480 mm
Backrest height	580 mm
Backrest width	490 mm
Armrest height above seat	200 mm
Armrest panel thickness	25 mm
Sled base leg diameter	25 mm
Sled base front span width	520 mm
Sled base rear span width	480 mm
Floor clearance under seat	280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	16 kg
Static seat load capacity	136 kg
Recommended user weight limit	120 kg
Backrest static load resistance	68 kg
Sled base tip resistance backward	12 degrees
Foam indentation load deflection (seat)	45 kg
Foam indentation load deflection (back)	35 kg
Foam rebound rate	40 %
Fabric abrasion resistance (Martindale)	50000 cycles
Seam stitch pitch	8 stitches per 30mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	1.2mm thick cream polyurethane (PU) leather
Back upholstery	1.2mm thick cream polyurethane (PU) leather with vertical pleated stitching
Outer armrest/side panels	Dark brown/black molded rigid composite panel with polished edge
Armrest top padding	15mm thick high-resilience polyurethane foam under PU upholstery
Seat padding	60mm thick high-resilience cold-cure polyurethane foam
Back padding	40mm thick high-resilience polyurethane foam
Support frame	1.5mm thick bent plywood or molded composite inner shell
Sled base	1.5mm wall thickness polished chrome-plated mild steel tube
Floor glides	Black non-marking rubber end caps on base feet
Edge piping	Contrast cream stitched piping along all upholstery edges
Mounting hardware	Zinc-plated steel bolts connecting seat shell to sled base
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating action	Fixed position non-swivel, non-tilting seating
Integrated armrest support	Continuous curved armrests connecting seat to backrest
Floor protection	Non-marking rubber glides at all four base contact points
Lumbar support	Contoured mid-back padding with vertical pleat flex
Cantilever flex response	Chrome steel base provides 10mm vertical deflection under full load
Cleanability	Smooth non-porous PU upholstery surface
Stacking capability	Minimum 4 chair vertical stacking
Edge safety	Rounded padded front seat edge
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping cartons	1
Shipping carton dimensions	670 x 650 x 700 mm
Gross shipping weight	19 kg
Shipping volume per unit	0.305 CBM
Assembly time	10 minutes
20ft GP container loading quantity	88 units
40ft HQ container loading quantity	220 units
Protective packaging	Polyethylene wrap + corner foam blocks + 5-ply corrugated carton
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate conference rooms	Fixed stable seating positioned around meeting tables, supports long meeting use with clean professional aesthetic matching executive office decor
Executive visitor areas	Guest seating in private offices and reception zones, high-end contrasting finish creates polished professional impression for clients and visitors
Hotel business centers and meeting spaces	Durable contract-grade seating for high-traffic hospitality meeting areas, resistant to frequent cleaning and heavy daily use
Training room seating	Comfortable fixed seating for day-long training sessions, supportive padding reduces attendee fatigue, cantilever flex provides subtle movement without distraction
Government formal meeting spaces	Conservative professional fixed seating for official meeting rooms, stable construction and stitched formal finish meets official space furnishing requirements
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-2:2018	Office furniture - Office work chairs - Part 2: Safety requirements, applicable for fixed visitor seating structural safety, stability and strength
EN 1022:2018	Domestic and non-domestic seating - Determination of stability, applicable for cantilever chair tip resistance testing
EN 13722:2021	Furniture - Seating - Test methods for the determination of strength and durability of non-domestic seating

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017 Test 5	Backrest static load test, applicable to validate back structure resistance to 68kg static load without failure

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable if dark side panels use wood veneer or wood-based composite construction
GB 18580-2017	Formaldehyde emission limits for wood-based panels used in furniture, applicable to inner structural shell and side panels
GB/T 27717-2011	Office furniture - Public seating, applicable for structural strength, stability and durability of fixed visitor conference chairs

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable if dark side panels use wood veneer or wood-based composite construction;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels used in furniture, applicable to inner structural shell and side panels;
3. GB/T 27717-2011: Office furniture - Public seating, applicable for structural strength, stability and durability of fixed visitor conference chairs;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CONF-CANT-001-CR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CONF-CANT-001-CR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CONF-CANT-001-CROpen Export Tool

Quick Actions

Post an RFQ

Product Description

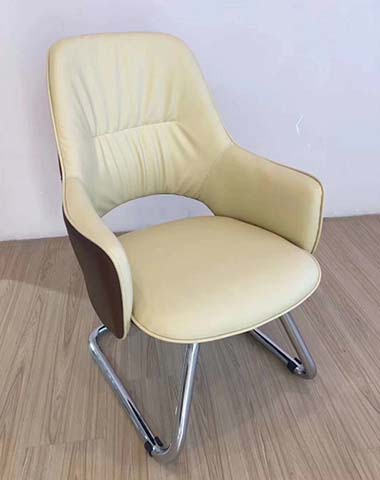

The Cream PU Upholstered Cantilever Conference Armchair (model CONF-CANT-001-CR) is an unbranded fixed-position visitor and meeting seat defined by a polished, professional two-tone visual profile. Its soft cream polyurethane upholstery is accented by dark molded side panels that run continuously from the integrated curved armrests to the seat-back junction, paired with a sleek polished chrome-plated steel sled base for a streamlined, contemporary silhouette that balances warm neutral upholstery with cool metallic and deep contrasting structural accents. Vertical pleated stitching across the backrest and matching cream edge piping lend a tailored, refined finish, while the continuous wrap-around arm design creates a cohesive, inviting seat form. Built for regular commercial use, the chair features high-resilience polyurethane foam padding across the seat, back, and armrest tops, supported by a hidden inner structural shell. The chrome sled base is fitted with non-marking black rubber glides to prevent floor scuffing, and zinc-plated steel bolts secure the seat shell to the base for long-term structural integrity. The smooth, non-porous PU upholstery offers simple wipe-clean maintenance suitable for regular disinfection, while the cantilever base delivers gentle, springy flex under load to reduce seated fatigue without complex adjustable mechanisms. Additional functional details include a contoured mid-back shape for built-in lumbar support, a rounded waterfall seat edge to reduce thigh pressure, and vertical stacking capability for space-saving storage when seats are not in use. The fixed seat height aligns to standard 750mm desk heights for ergonomic use during meetings. This armchair is well suited for a broad range of formal and semi-formal spaces, including corporate conference rooms, executive office visitor areas, hotel business centers and function spaces, training rooms, and government formal meeting venues. Its neutral cream finish complements a wide range of interior palettes, while its stable non-rolling base prevents unwanted movement during discussions, and its durable upholstery stands up to high-traffic daily use. For procurement planning, note that final material confirmation for the dark side panels and inner support shell is required prior to bulk purchase, as construction options include molded composite, bent plywood, or ABS variants. Units ship in protective corrugated packaging with foam corner protection, with simple assembly required if delivered knock-down, and standardized load quantities are available for full container shipments to support large-scale furnishing projects.

Cream PU Upholstered Cantilever Conference Armchair with Dark Side Panels and Chrome Sled Base Specifications
