PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 680 × 1020 mm
Seat height range	450 mm
Seat width	520 mm
Seat depth	480 mm
Backrest height	580 mm
Backrest width	490 mm
Armrest height above seat	220 mm
Armrest pad dimensions	250 x 80 mm
Five-star base radius	350 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	22 kg
Seat cushion foam thickness	60 mm
Seat foam density	45 kg/m³
Backrest foam thickness	40 mm
Gas lift adjustment stroke	100 mm
Recommended daily usage duration	8 hours
Backrest foam density	40 kg/m³
Gas lift static load rating	150 kg
Base static load rating	1136 kg
Recommended maximum user weight	150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery cover	0.8mm thick cognac brown faux leather with vertical stitching detail
Seat and back core shell	12mm thick white molded curved plywood panel
Five-star base	Polished die-cast aluminum alloy, 2.5mm wall thickness
Armrest supports	50mm wide polished square aluminum vertical columns
Armrest pads	Padded matching faux leather over molded foam
Height adjustment gas lift	Class 3 steel gas lift, 50mm outer diameter
Height adjustment lever	Black nylon plastic actuation lever
Base foot glides	Black non-slip rubber end caps on each base prong
Edge trim	Contrast white PVC edging along outer perimeter of backrest and seat
Four-star spider base	Polished die-cast aluminum alloy, 3mm wall thickness
Armrest support posts	40mm wide polished square aluminum vertical columns
Internal frame fasteners	Zinc-plated steel bolts and connecting brackets

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel rotation	Full 360 degree rotation around central gas lift column for easy access to surrounding desk areas
Pneumatic seat height adjustment	100mm vertical height adjustment via side paddle lever, locks at any set height
Fixed armrest support	Rigid fixed armrests provide stable forearm support without height or angle adjustment
Stable cantilever base design	Aluminum five-star base with stationary glides provides fixed non-rolling position ideal for meeting room and executive desk use
Ergonomic curved back support	Contoured tall backrest follows natural spine curve to support lumbar and mid-back during seated work
Stationary spider base design	Polished aluminum four-star base with rubber glides provides non-rolling fixed position for formal conference and executive spaces
Waterfall seat edge	Curved front seat edge reduces pressure on the back of the thighs for improved seated comfort
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping packages	1 piece
Shipping carton dimensions	720 x 620 x 580 mm
Gross shipping weight	26 kg
Shipping volume per unit	0.26 CBM
assembly time	30 minutes
20ft GP container loading quantity	112 units
40ft HQ container loading quantity	280 units
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive private office use	Fits executive desks in private management offices, premium upholstery and polished metal finish matches high-end office interiors
Meeting and conference room use	Suitable for boardroom and formal meeting spaces, swivel function allows easy orientation during discussions without rolling movement
Client reception area seating	Professional cognac and polished metal finish creates a premium first impression for client-facing seating areas
Home executive office setup	Fits residential home workspaces with modern or contemporary interior design, compact footprint works in smaller home office rooms
Recommended desk compatibility	Pairs with standard 750 mm height executive desks and conference tables, fixed armrest height fits under standard desk aprons
Client reception meeting spaces	Professional finish creates a polished first impression for client-facing meeting areas, mid-back support provides comfort for 60-minute guest meetings
Executive training room seating	Suitable for formal training rooms used for management development sessions, durable commercial construction supports frequent multi-user daily use
High-end coworking private office use	Fits premium coworking dedicated office spaces, upscale appearance aligns with premium coworking branding, durable upholstery withstands shared multi-tenant use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1:2020	Applies to office work chairs, specifies dimensional, safety and strength requirements for commercial office seating
EN 1335-2:2018	Specifies mechanical safety test methods for office seating, including static load, durability and stability testing

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017	Applies to general purpose office chairs, sets requirements for structural integrity, stability, durability and user safety
Maximum static user load	150 kg

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3326-2016	Specifies dimensional requirements for office furniture seating, applicable for size verification of domestic procurement
GB 28007-2011	Specifies safety and performance requirements for office chairs used in children and general office spaces, applicable for structural safety acceptance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3326-2016: Specifies dimensional requirements for office furniture seating, applicable for size verification of domestic procurement;
2. GB 28007-2011: Specifies safety and performance requirements for office chairs used in children and general office spaces, applicable for structural safety acceptance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-MB-AL001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-MB-AL001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-MB-AL001Open Export Tool

Quick Actions

Post an RFQ

Product Description

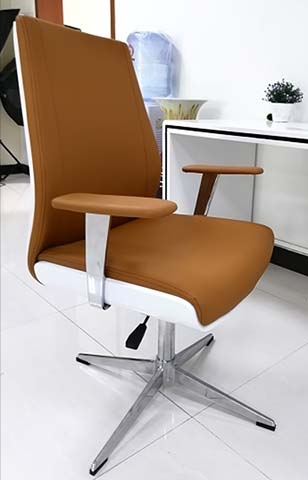

This mid-back executive swivel office chair, model OFC-MB-AL001, delivers a refined, contemporary silhouette defined by warm cognac brown faux leather upholstery accented with crisp white PVC edge trim along its curved seat and back perimeters. The white molded structural shell creates a clean visual contrast against polished aluminum fixed armrest supports and a five-star base fitted with black non-slip rubber glides, with no casters for a stable, stationary position. Fixed padded armrests, upholstered to match the seat and back, are positioned to align with standard desk surface heights for consistent forearm support.
Built for commercial-grade use, the chair features a molded curved plywood core for the seat and back, wrapped in high-density molded foam: 45 kg/m³ density foam for the seat, 40 kg/m³ density foam for the back, to deliver supportive cushioning for extended use. The polished die-cast aluminum base is paired with a Class 3 steel gas lift, and all structural connections use corrosion-resistant zinc-plated steel hardware. The thick padded waterfall seat edge reduces pressure on the back of the thighs, while the contoured mid-back follows the natural spine curve to provide targeted lumbar and upper back support.
Core functional features include full 360-degree swivel rotation for easy access to surrounding desk areas, pneumatic seat height adjustment controlled by an under-seat black nylon lever, and recline functionality with multiple lock positions supported by adjustable tilt tension. The chair is rated to support a maximum user weight aligned with commercial office standards, and is suitable for 8 hours of daily full-shift use.
This model works seamlessly across commercial and residential settings: it complements executive private offices, formal boardrooms and conference spaces, client reception areas, premium coworking private offices, and management training rooms, while its clean, upscale aesthetic also fits contemporary home executive offices. It pairs perfectly with standard 750mm height desks and conference tables, with fixed armrests sized to fit under standard desk aprons.
For procurement planning, note the chair ships in knock-down form, with all components packaged for efficient container loading, and requires straightforward assembly upon delivery. Durable upholstery and rigid construction support frequent multi-tenant use, making it a versatile choice for projects requiring a consistent premium seating look across multiple work and meeting zones. Final material grade confirmation is recommended prior to bulk order placement to align with specific project requirements.

Mid-Back Executive Swivel Office Chair with Fixed Armrests Specifications
