| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications

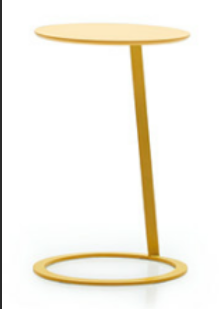

| Overall dimensions | 550 x 500 x 660 mm | |
|---|---|---|
| Round tabletop diameter | 450 mm | |
| Tabletop edge thickness | 12 mm | |
| Vertical support bar width | 30 mm | |
| Circular ring base outer diameter | 500 mm | |
| Ring base tube diameter | 20 mm | |
| Under-base clearance for sofa slide | 100 mm | |
| Tabletop overhang past vertical support | 220 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Product net weight | 7 kg | |
|---|---|---|
| Maximum static tabletop load capacity | 40 kg | |
| Surface scratch resistance | Level 3 (3000 abrasion cycles) | |
| Floor protection rating | Non-marking for hard floors | |
| Recommended maximum supported item footprint | 400 mm diameter | |
| Structural cantilever deflection at max load | 3 mm | |
| Warranty period | 365 days | |
| Available color finish count | 1 | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
Core acceptance fields · Panels / hardware / frame / upholstery
| Tabletop | 1.2mm thick carbon steel sheet with gold powder-coat finish | |
|---|---|---|
| Vertical support bar | 30x15mm rectangular carbon steel tubing, gold powder-coated | |
| Circular ring base | 20mm diameter round carbon steel tubing, gold powder-coated | |
| Welded frame joints | Reinforced TIG welds at support-tabletop and support-base connections | |
| Base contact pads | 4mm thick non-slip PE plastic pads, affixed to base ring underside | |
| Surface finish | Matte gold polyester powder coating, 60μm thickness | |
| Frame anti-corrosion treatment | Phosphated pre-treatment before powder coating | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
Adjustment / rotation / tilt / mobility / storage features
| Slide-under furniture design | Open ring base slides fully under sofas or beds with 100mm+ clearance | |
|---|---|---|
| Fixed-height structure | Non-adjustable 660mm tabletop height optimized for standard sofa arm height | |
| Surface use suitability | Flat smooth metal surface supports drinks, snacks, laptops, books or small decor items | |
| Floor protection function | Underside PE pads prevent scratching hardwood, tile or laminate flooring, no wobble on level surfaces | |
| Assembly requirement | Knock-down flat-pack assembly with included Allen key and hardware, 3 bolts connect components | |
| Space-saving footprint | 500mm diameter base fits in narrow gaps beside seating, no protruding legs to trip users | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
| Bedroom bedside use | Slides under bed frames to serve as a compact nightstand for phones, books or table lamps | |
|---|---|---|
| Small apartment compact space | Minimalist footprint works for studio apartments or tight seating areas with no space for full-size end tables | |
| Lounge and reception accent use | Used as a decorative accent table in office reception areas or hotel lounge seating zones | |
| Balcony casual seating use | Pair with outdoor balcony seating for light snack and drink placement (indoor rated finish only) |
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Applicable for strength, durability and safety requirements for domestic residential tables | |
|---|---|---|
| EN 1022:2018 | Applicable for residential seating/table stability testing requirements |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general technical requirements of metal household furniture, dimensional stability and finish adhesion | |
|---|---|---|
| GB 18584-2001 | Applicable for indoor decoration material limits of harmful substances in furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general technical requirements of metal household furniture, dimensional stability and finish adhesion; 2. GB 18584-2001: Applicable for indoor decoration material limits of harmful substances in furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
