Automatic mm / inch conversion · Core engineering specifications
| Overall assembled dimensions | 914 x 406 x 1022 mm | |
|---|---|---|
| Single door panel width | 450 mm | |
| Door panel height | 860 mm | |
| Top overhang front/side | 20 mm | |
| Plinth base height | 100 mm | |
| Top/bottom light gray trim height | 31 mm | |
| Side vertical trim width | 18 mm | |
| Interior usable storage depth | 380 mm | |
| Adjustable shelf thickness | 18 mm | |
| Interior shelf vertical clearance per compartment | 270 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Total static load capacity | 225 kg | |
|---|---|---|
| Per adjustable shelf static load | 45 kg | |
| Hinge cycle rating | 80000 open/close cycles | |
| Drawer slide static load (if fitted) | 25 kg | |
| Unit net weight | 34 kg | |
| Anti-tip anchoring load rating | 50 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery

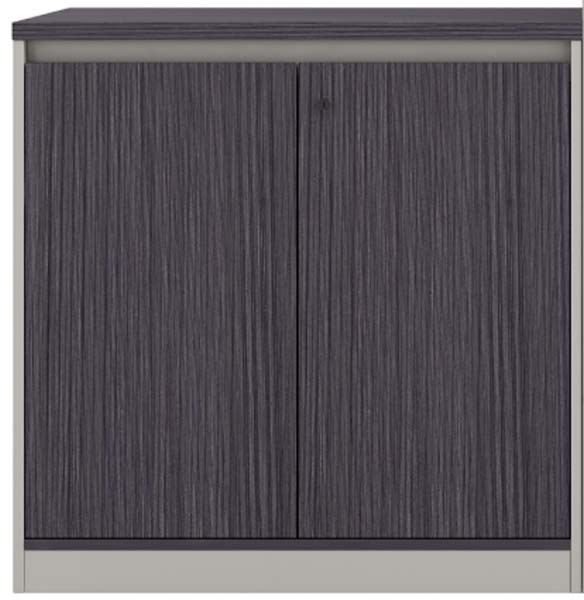

| Door panels | 18mm MDF core with dark vertical woodgrain thermofused laminate | |
|---|---|---|
| Carcass side/top/bottom panels | 16mm particleboard core with light gray matte laminate | |
| Back panel | 3mm hardboard with dark matching finish | |
| Edge banding | 1mm PVC matching door and carcass colors | |
| Door hinges | Cold-rolled steel 110-degree concealed hinges | |
| Shelf supports | Nickel-plated steel 5mm pin supports | |
| Adjustable shelves | 18mm MDF with matching light gray laminate | |
| Foot levelers | Nylon base 12mm thread adjustable glides | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Door operation | Two equal-width hinged doors swing outward 110 degrees for full interior access | |
|---|---|---|
| Shelf adjustability | 3 shelf positions with 64mm vertical spacing to accommodate mixed-height stored items | |
| Door alignment | Concealed hinges include 2mm side/height adjustment for consistent door gap | |
| Storage configuration | 1 fixed middle shelf plus 1 adjustable shelf creates 3 enclosed storage compartments | |
| Anti-tip protection | Included wall anchor strap secures cabinet to wall to prevent forward tipping | |
| Optional locking | Pre-drilled hole accepts optional central cam lock to secure both doors | |
| Leveling adjustment | Hidden glides under plinth adjust 10mm to compensate for uneven floor surfaces | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Office workspace storage | Fits under standard desk height or alongside workstations for file and supply storage | |
|---|---|---|
| Home office storage | Suitable for home workspaces to store documents, office supplies, and small equipment | |
| Living room side storage | Works as a sideboard for media accessories, books, and household items | |
| Break room storage | Suitable for storing break room supplies, dishes, and dry goods in office pantries | |
| Reception area storage | Placed behind reception desks to store forms, office supplies, and visitor materials | |
| Recommended companion furniture | Pairs with matching height-adjustable desks and office chairs for coordinated office setups |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to structural stability testing | |
|---|---|---|
| EN 14074-2004 | Office storage furniture test methods for strength and durability | |
| EN 12521:2015 | Furniture strength, durability and safety requirements for domestic and storage furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2022 | Standard for storage furniture performance and safety for office environments |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural acceptance | |
|---|---|---|
| GB/T 4893.1-2021 | Surface wear resistance test for furniture surfaces, applicable to laminate finish validation | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural acceptance; 2. GB/T 4893.1-2021: Surface wear resistance test for furniture surfaces, applicable to laminate finish validation; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
