PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	600 × 350 × 900 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	28 kg
Top surface static load capacity	30 kg
Leveler foot adjustment range	10 mm
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Top surface	Light oak-effect melamine-faced particleboard
Side panels	Matte white melamine-faced particleboard
Divider and shelves	Light grey melamine-faced particleboard
Lower door panels	Light oak-effect melamine-faced particleboard
Back panel	3 mm hardboard
Leveler feet	Injection-molded PP plastic
Panel edge banding	0.8 mm PVC edge banding
Door hinges	Cold-rolled steel concealed hinges
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage layout	Two upper open display bays, one lower closed compartment
Door operation	Side-hinged doors open outward to access lower storage
Floor leveling	Four adjustable feet stabilize the cabinet on uneven floors
Surface protection	Melamine finish resists daily scratches and water splashes
Freestanding installation	Requires no wall mounting for standard use
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Home living room	Suitable for compact side storage next to sofas
Home office	Usable as a short side bookcase next to work desks
Entryway	Functions as an entry console for keys and small decor
Small bedroom	Fits alongside beds for linen and personal item storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture safety requirements	EN 14749:2016
Formaldehyde emission	EN 312:2010

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Panel formaldehyde emission	GB/T 17657
Furniture structural safety	GB/T 3324

Standardized tender description text

This product must meet the following technical requirements:
1. Panel formaldehyde emission: GB/T 17657;
2. Furniture structural safety: GB/T 3324;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SCB-2OP2DR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SCB-2OP2DR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SCB-2OP2DR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

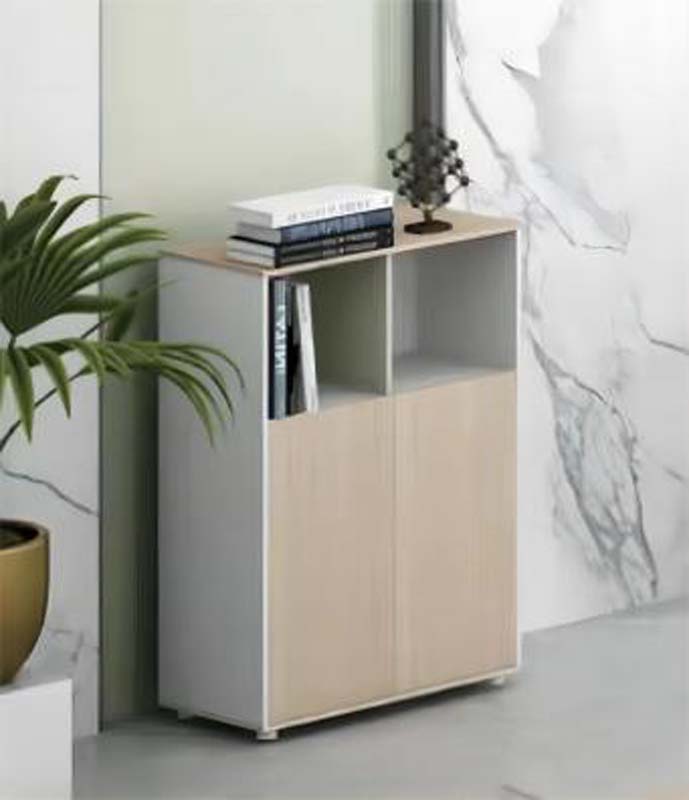

The Two-Door Open Shelf Storage Cabinet, model SCB-2OP2DR-01, is an unbranded freestanding storage solution defined by a contemporary two-tone aesthetic. Its form balances open display and concealed storage, with two upper open bays positioned above a lower closed compartment accessed via outward-opening side-hinged doors. The color palette combines light oak-effect melamine surfaces for the top and lower door panels, matte white melamine for side panels, and light grey melamine for internal dividers and shelves, creating a understated, versatile visual profile that suits a range of interior schemes. Constructed from melamine-faced particleboard, the cabinet features robust panel gauges: 25 mm thick main carcass and shelves, 22 mm thick door fronts, a 3 mm hardboard back panel, and 0.8 mm PVC edge banding on all panel edges, with a 2 mm edge band thickness for high-wear perimeters. Hardware includes cold-rolled steel concealed hinges that open 165 degrees, tested for 80000 operational cycles, with drawer slides rated for 45 kg per pair and 50000 open-close cycles, and injection-molded PP plastic adjustable leveler feet. The four feet offer 10 mm of adjustment to stabilize the unit on uneven flooring, while the durable melamine finish resists daily scratches and water splashes for low-maintenance upkeep. Functional storage is optimized with a 30 kg static load capacity for the top surface, and 30 kg distributed load capacity per shelf. The cabinet requires no wall mounting for standard freestanding use, though an 80 mm cable or vent opening may be fitted as needed. Its compact footprint makes it suitable for diverse small-footprint spaces: it works as compact side storage adjacent to living room sofas, a short side bookcase beside home office desks, an entry console for keys and small decorative items, and bedside storage for linens and personal belongings in small bedrooms. For procurement, note that each unit ships as one set, with a 40-minute reference assembly time. Buyers should also account for packaging logistics when coordinating delivery and receiving, and note that wall anti-tip fixings with at least two attachment points are specified for cabinet products above 1200 mm, though this model does not require them for standard installation at its finished height.

Two-Door Open Shelf Storage Cabinet Specifications
