PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	900 × 400 × 850 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

2-door cabinet unit net weight	38 kg
Top shelf static load capacity	30 kg
Recommended service life	8 years
Surface abrasion resistance	2000 cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer cabinet frame	Dark gray melamine-faced particle board
Lower door panels	Brown diagonal textured melamine-faced MDF
Horizontal fluted trim	Dark gray ribbed ABS decorative strip
Top edge trim	Rounded dark gray PVC edge banding
Internal shelving	18mm thick matching particle board with PVC edge banding
Door hinges	Cold-rolled steel concealed soft-close hinges
Base plinth	Powder-coated dark gray steel support strip
Open shelf surfaces	Matte dark melamine finish, stain resistant
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Enclosed door storage	Hinged doors swing open 110 degrees to access full lower cabinet interior
Open shelf organization	Two-tier open upper storage holds frequently accessed items without door opening
3-door model shelf division	Vertical middle divider splits middle shelf into two separate storage zones
Top display surface	Raised perimeter lip prevents small items sliding off flat top surface
Soft-close door operation	Concealed hinges provide 5-second soft close to eliminate slamming noise
Adjustable internal shelves	Shelf supports allow 32mm incremental height adjustment for flexible storage
Floor-standing installation	Plinth base sits directly on level floor without wall mounting required
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office side placement	Positioned beside executive desk for document and supply storage
Open office tea station use	Placed in pantry area for cups, tea supplies and reading materials
Reception area display storage	Used behind reception desk for brochures, decor and visitor supplies
Small meeting room storage	Installed along meeting room wall for meeting materials and equipment
Home office side cabinet	Used in home workspaces for office supplies, books and personal items
Corridor temporary storage	Placed in office corridors for frequently used public supplies

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · STG-2D-3D-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · STG-2D-3D-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · STG-2D-3D-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

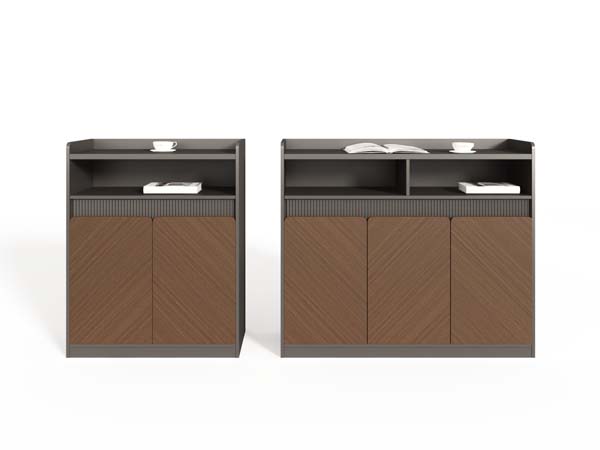

The Modern Two-Tone Low Storage Cabinet with Open Upper Shelf and Diagonal Patterned Doors is a versatile floor-standing office side storage unit suited for mixed public and semi-public workspace settings. Visually, it balances a sleek contemporary profile with two-tone finishes: the outer cabinet frame and raised top surface are finished in matte dark gray, paired with lower door panels in a warm brown diagonal texture, accented by dark gray ribbed ABS horizontal trim and rounded dark gray PVC edge banding along the top edge for a polished, cohesive look. The layout integrates a two-tier open upper shelving section above closed lower cabinetry, with the middle open shelf split by a vertical divider to create two distinct storage zones, while the flat top display surface features a raised perimeter lip to stop small items from sliding off.
Built for durable everyday use, the unit is constructed primarily from melamine-faced particle board, with 25mm thick carcass panels and open shelves, 22mm thick textured door panels, a 9mm back panel, and 2mm thick edge banding across all finished edges. The base plinth uses a powder-coated dark gray steel support strip for stable, wall-mount-free placement directly on level floors, while concealed cold-rolled steel hinges deliver a 5-second soft-close action to eliminate slamming, and drawer slides (on applicable configurations) are engineered for frequent operation. Internal shelves feature 32mm incremental height adjustment to accommodate varied item sizes, with stain-resistant open shelf surfaces that simplify routine cleaning.
Functionally, the cabinet supports both immediate access and concealed storage: the open upper tiers hold frequently used items without requiring door operation, while the hinged lower doors swing open to grant full access to the enclosed interior for bulk or less frequently accessed items. It performs reliably in a range of spaces: positioned alongside executive desks for document and supply storage, placed in office pantry areas to hold tea supplies and reading materials, set behind reception desks for brochures and visitor amenities, installed along small meeting room walls for meeting materials, used in home offices for books and personal work supplies, or placed in office corridors for frequently accessed public items.
Procurement teams should note the unit ships unbranded under model STG-2D-3D-001, with a reference assembly time of 40 minutes per set, requiring floor space that accommodates its packaged dimensions, and accounting for a packaged gross weight aligned with split-carton delivery; the recommended service life is 8 years, with specified load ratings for shelves, hardware cycle ratings, and surface abrasion resistance aligned with regular commercial workspace use.

Modern Two-Tone Low Storage Cabinet with Open Upper Shelf and Diagonal Patterned Doors Specifications
