PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

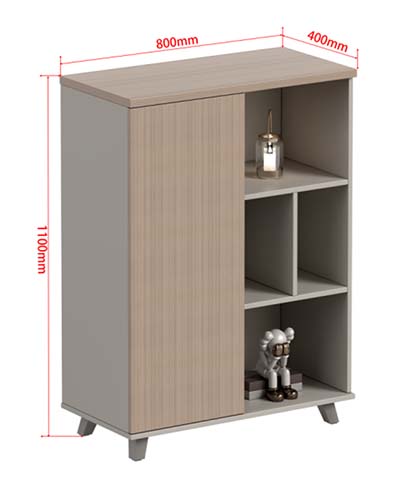

Overall dimensions (W × D × H)	800 × 400 × 1100 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total cabinet weight	42 kg
Top surface static load	30 kg
Horizontal shelf load	12 kg per shelf
Enclosed bay storage load	25 kg
Whole-cabinet recommended live load	60 kg
Storage capacity	4 visible compartments plus 1 full-height enclosed bay
Floor contact points	4 angled support legs
Tip-restraint requirement	1 wall anchor strap for use over 900 mm height
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main carcass	18 mm wood-based particleboard or MDF panels with melamine facing
Top panel	18 mm light-oak melamine-laminated wood-based panel with eased edge
Sliding door	15 mm fluted light-oak decorative panel running in top and bottom tracks
Open shelves and dividers	18 mm gray melamine-faced panels with square exposed edges
Back panel	9 mm lightweight hardboard or melamine-back panel set into the rear rebate
Support legs	Four matte gray angled composite or coated wooden legs with foot pads

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Sliding door operation	Full-height fluted panel slides horizontally to cover the left storage bay and reduce dust exposure
Open display storage	Four open compartments provide immediate-access display space with one divided middle row
Mixed storage layout	Left enclosed bay conceals items while the right shelves expose books, decor, or daily-use objects
Freestanding installation	Cabinet rests on four angled legs and does not require built-in floor fixing; wall anchoring is recommended for anti-tip safety

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Export carton size	860 x 460 x 160 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office or home storage area	Suitable beside a workstation or in a pantry for documents, samples, decor, and daily materials because it combines concealed and open storage
Living room or lounge display zone	The open cubbies display decorative objects while the fluted door hides less presentable items

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · STC-8004001100-FD4C

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · STC-8004001100-FD4C

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · STC-8004001100-FD4COpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Fluted-Door Storage Cabinet with Open Cubbies, model STC-8004001100-FD4C, is an unbranded freestanding storage cabinet designed to balance display, concealment, and a light contemporary appearance. Its front elevation combines four visible open compartments with a full-height enclosed bay on the left. A full-height fluted light-oak panel slides horizontally in top and bottom tracks to cover this bay, while the open cubbies on the right present books, decorative objects, or daily-use items within easy reach. A divided middle row gives the open section a structured, asymmetrical display layout. Four matte gray angled legs lift the cabinet above the floor and support its elongated, modern silhouette. The cabinet is built from wood-based panels with melamine facing. The main carcass uses 18 mm particleboard or MDF panels, while the stated carcass and shelf thickness is 25 mm. The top is an 18 mm light-oak melamine-laminated panel with an eased edge, and the open shelves and dividers are 18 mm gray melamine-faced panels with square exposed edges. The 15 mm fluted light-oak decorative sliding door adds texture to the exterior, and the 9 mm lightweight hardboard or melamine-back panel is set into a rear rebate. The support legs are angled composite or coated wooden legs with foot pads, finished in matte gray. Functionally, the piece offers mixed storage rather than a single enclosed closet. The sliding door conceals the left bay and helps reduce dust exposure, while the four open compartments provide immediate-access shelving for items that are used frequently or intended for display. The cabinet has a rated top surface static load of 30 kg, a horizontal shelf load of 12 kg per shelf, an enclosed bay storage load of 25 kg, and a whole-cabinet recommended live load of 60 kg. Its total cabinet weight is 42 kg. This cabinet is suited to a living room or lounge display zone, where the open cubbies can showcase decor and the fluted door can hide less presentable items. It also works beside a workstation or in a pantry for documents, samples, decor, and daily materials in office or home storage areas. Because it is freestanding, it rests on its four angled legs without built-in floor fixing, although wall anchoring is recommended for anti-tip safety. Procurement planning should allow for flat-pack delivery and assembly. Reference assembly time is 40 minutes per set. Logistical details include an export carton size of 860 by 460 by 160 mm, with packaging information also referencing split-carcass carton dimensions and multiple package-count descriptions. The reference packaged gross weight is 100 kg per set and the reference packaging volume is 0.65 cubic meter per set, so buyers should confirm final pack configuration before shipping or installation scheduling.

Fluted-Door Storage Cabinet with Open Cubbies Specifications
