Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 2400 x 400 x 800 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Overall product weight | 78 kg | |
|---|---|---|
| Top surface static load capacity | 80 kg | |
| Total enclosed storage volume | 0.58 cbm | |
| Open shelf storage volume | 0.07 cbm | |
| Lock mechanism cycle life | 10000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet body panels | 18mm thick melamine-faced particleboard | |
|---|---|---|
| Top surface panels | 18mm thick dark matte melamine particleboard | |
| Door hinges | Cold-rolled steel concealed hinges | |
| Door locks | Zinc alloy keyed cam locks | |
| Internal shelves | 18mm thick matching melamine particleboard | |
| Edge banding | 1mm thick PVC edge banding | |
| Back panel | 5mm thick hardboard | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features

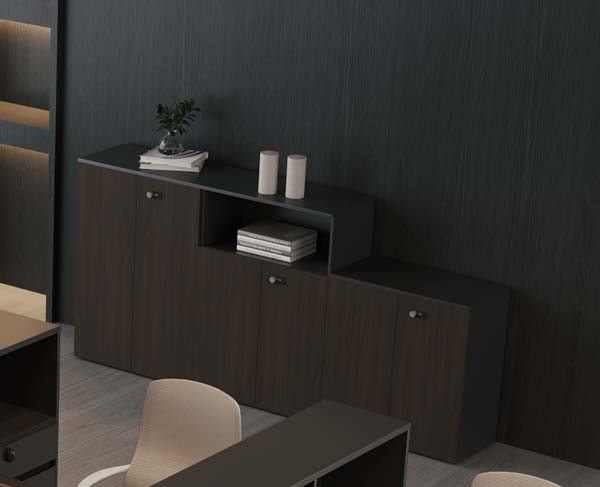

| Locked storage compartments | Three separate double-door locked sections with keyed cam locks | |
|---|---|---|
| Central open shelf | Recessed open compartment without door | |
| Stepped profile design | Three tiered height segments along cabinet length | |
| Freestanding installation | Floor-placed design without wall mounting required | |
| Soft-close door operation | Concealed hinges with dampened closing action | |
| Leveling adjustment | Optional hidden foot pads at base (not visible) | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office side storage | Placed against wall behind executive desk to store documents and office supplies | |
|---|---|---|
| Open plan office filing zone | Used as low partition storage between workstations to divide space | |
| Conference room accessory storage | Positioned along conference room wall to store meeting materials and display decor | |
| Manager workspace credenza | Paired with desk units to create a complete executive workspace | |
| Reception area back storage | Placed behind reception desk to store visitor materials and reception supplies |
EU Market Access Requirements* EN Standards
| Office storage furniture safety | EN 14073:2004 | |
|---|---|---|
| Formaldehyde emission for wood panels | EN 312:2010 | |
| Surface durability for work surfaces | EN 15185:2011 |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| Panel furniture formaldehyde emission | GB/T 17657 | |
|---|---|---|
| Surface wear resistance | GB/T 4893.8 | |
| Structural strength for storage cabinets | GB/T 10357.5 |
This product must meet the following technical requirements: 1. Panel furniture formaldehyde emission: GB/T 17657; 2. Surface wear resistance: GB/T 4893.8; 3. Structural strength for storage cabinets: GB/T 10357.5; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
