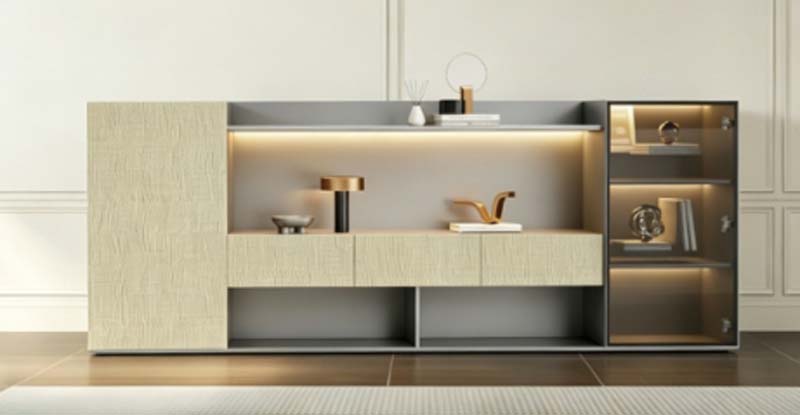

Product supplierModern Asymmetrical Floor-Standing TV Media Console with Integrated LED Lighting, E1-grade engineered wood (MDF core) with matte grey laminate finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2000 × 400 × 600 mm | |
|---|---|---|
| Overall unit dimensions | 2000 x 400 x 600 mm | |
| Left solid door compartment dimensions | 480 x 380 x 580 mm | |
| Upper LED open display shelf dimensions | 1000 x 360 x 220 mm | |
| Middle drawer unit dimensions | 1000 x 380 x 160 mm | |
| Single drawer front dimensions | 330 x 150 x 18 mm | |
| Lower open cubby dimensions (each) | 490 x 380 x 180 mm | |
| Right glass display cabinet dimensions | 480 x 380 x 580 mm | |
| Glass cabinet internal shelf spacing | 180 mm | |
| Top surface panel thickness | 25 mm | |
| Carcass side/back panel thickness | 18 mm | |
| Tinted glass door thickness | 8 mm | |
| Cable management opening diameter | 60 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total top surface static load capacity | 159 kg | |
|---|---|---|
| Maximum supported TV screen size | 2030 mm (80 in) | |
| LED strip operating lifespan | 30000 hours | |
| Unit net weight | 72 kg | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Door hinge cycle rating | 80000 open/close cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main cabinet carcass | E1-grade engineered wood (MDF core) with matte grey laminate finish | |
|---|---|---|
| Left door and drawer fronts | Engineered wood substrate with embossed textured beige linen-look matte finish | |
| Right display door | 8mm tinted smoked tempered safety glass with polished edges | |
| Internal cabinet shelves (glass compartment) | 18mm thick engineered wood with matching matte grey laminate finish | |
| Display lighting | 24V warm white (3000K) LED strip recessed under upper shelf lip | |
| Drawer slides | Cold-rolled steel soft-close full-extension side-mount slides | |
| Door hinges | Concealed steel soft-close hydraulic hinges with 110-degree opening angle | |
| Base plinth | 18mm thick engineered wood with matching matte finish, full perimeter flush floor support | |
| Surface finish coating | Scratch-resistant and spill-proof matte PU coating | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Upper open shelf integrated LED lighting | Warm white accent lighting controlled by hidden touch switch on unit side | |
|---|---|---|
| Three middle drawers | Full-extension soft-close operation, opens flush without protruding handles | |
| Left full-height solid door cabinet | Single hinged door with 110-degree opening, provides concealed storage for bulk items | |
| Right glass display cabinet | Hinged tinted glass door, three adjustable shelves for collectible display with internal LED | |
| Lower open cubbies | Two open bays designed for media device placement with rear cable access | |
| Rear cable management cutouts | Pre-drilled openings behind open bays and glass cabinet for wire routing | |
| Internal shelf adjustability | Glass cabinet shelves support 5-level height adjustment for variable item sizes | |
| Flush floor installation | No elevated legs, sits directly on finished floor with hidden leveler feet | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary living room application | Placement below wall-mounted TVs as central media storage and display unit | |
|---|---|---|
| Display storage use | Right glass cabinet for collectibles, decor and books with integrated accent lighting | |
| Media equipment storage | Open lower cubbies house set-top boxes, gaming consoles and audio equipment with cable management | |
| Style compatibility | Matches modern minimalist, light luxury and contemporary neutral interior design schemes | |
| Alternative dining room use | Functions as a low sideboard for tableware storage and decor display in open-plan spaces | |
| Recommended placement clearance | 100mm rear clearance from wall for cable routing and ventilation |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 312:2010 | Particleboard performance specification, applicable for engineered wood substrate acceptance | |
|---|---|---|
| EN 14749:2016 | Safety and strength requirements for domestic storage furniture, applicable for structural load testing | |
| EN 62471:2008 | Photobiological safety of LED lighting products, applicable for integrated LED strip inspection |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel structural integrity inspection | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade required for indoor use | |
| GB/T 4893.8-2013 | Surface wear resistance test for furniture coatings, applicable for finish durability inspection |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel structural integrity inspection; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade required for indoor use; 3. GB/T 4893.8-2013: Surface wear resistance test for furniture coatings, applicable for finish durability inspection; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
