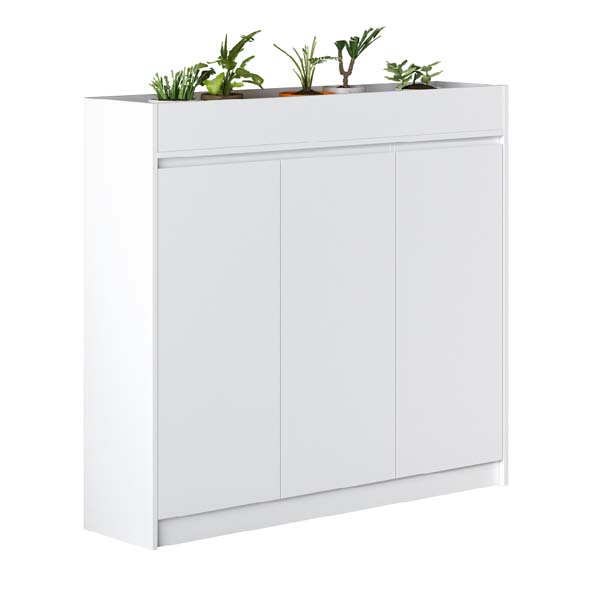

Product supplierWhite Office Partition Storage Cabinet with Integrated Top Planter Box, 18mm melamine-faced particle board
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 300 × 1100 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity (planter + storage) | 150 kg | |
|---|---|---|
| Unit net weight | 48 kg | |
| Recommended maximum potted plant count | 4 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main cabinet panels | 18mm melamine-faced particle board | |
|---|---|---|
| Structural side/top panels | 25mm melamine-faced particle board | |
| Door hinges | Concealed soft-close steel hinges | |
| Internal shelf | 18mm melamine-faced particle board | |
| Planter trough inner liner | Waterproof HDPE liner | |
| Plinth base | 18mm melamine-faced particle board | |
| Edge banding | 2mm thick PVC edge banding | |
| Back panel | 3mm thick hardboard | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage access | 3 full-height hinged doors | |
|---|---|---|
| Space division | Freestanding low-height partition | |
| Integrated greenery display | Recessed top planter trough | |
| Door operation | Soft-close hinge mechanism | |
| Floor clearance | 80mm raised plinth | |
| Water protection | Integrated waterproof liner | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open office zone division | Placed between workstations to create visual separation with greenery | |
|---|---|---|
| Reception area decor | Positioned behind reception desks for storage and decorative plant display | |
| Break room storage | Used in lounge areas to store supplies while adding green decorative elements | |
| Corridor side furnishing | Installed along office corridors for low-profile storage without blocking pathways | |
| Small office space separation | Used in compact offices to divide work and meeting zones without full walls |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office storage safety requirement | EN 14073:2004 | |
|---|---|---|
| Formaldehyde emission for wood panels | EN 312:2010 | |
| Surface durability test | EN 15185:2011 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.6 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Panel furniture dimensional tolerance | GB/T 3324 | |
|---|---|---|
| Formaldehyde emission limit | GB 18580 | |
| Surface wear resistance | GB/T 17657 |
Standardized tender description text
This product must meet the following technical requirements: 1. Panel furniture dimensional tolerance: GB/T 3324; 2. Formaldehyde emission limit: GB 18580; 3. Surface wear resistance: GB/T 17657; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
