Automatic mm / inch conversion · Core engineering specifications

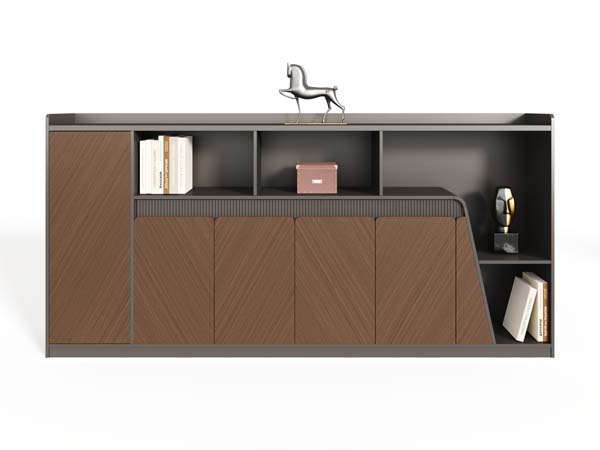

| Overall dimensions | 1830 x 560 x 900 mm | |
|---|---|---|
| Left full-height door width | 320 mm | |
| Upper open cubby width per unit | 380 mm | |
| Middle cabinet section width | 1100 mm | |
| Sloped right open niche width | 410 mm | |
| Top display ledge height | 50 mm | |
| Lower closed door height | 480 mm | |
| Upper open cubby height | 280 mm | |
| Right open shelf height per tier | 250 mm | |
| Internal shelf depth | 480 mm | |
| Carcass panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Door panel thickness | 18 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Unit net weight | 65 kg | |
|---|---|---|
| Top surface static load capacity | 50 kg | |
| Open shelf static load per level | 25 kg | |
| Internal closed cabinet shelf load | 30 kg | |
| Recommended maximum user count | 10 users per unit | |
| Hinge cycle rating | 80000 open/close cycles | |
| Drawer/slide load rating | 35 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Warranty period | 5 years | |
| Shelf Distributed Load | 30 kg/shelf |
Core acceptance fields · Panels / hardware / frame / upholstery
| Structural frame | 18mm thick matte dark grey MFC (melamine faced chipboard) | |
|---|---|---|
| Door panels | 18mm engineered wood with brown diagonal textured laminate finish | |
| Vertical trim panel | Dark grey fluted MDF decorative panel | |
| Shelf panels | 18mm matching dark grey melamine engineered wood | |
| Back panel | 9mm hardboard with dark matte finish | |
| Door hinges | Soft-close steel concealed hinges | |
| Edge banding | 1mm thick PVC edge banding matching panel finish | |
| Foot levelers | Adjustable nylon glides with steel screw stems | |
| Anti-tip hardware | 2 steel wall anchor brackets | |
| Finish coating | Low-VOC matte lacquer over textured panels | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
Adjustment / rotation / tilt / mobility / storage features
| Closed door storage | 5 hinged doors (1 left full-height, 4 middle) concealing interior storage | |
|---|---|---|
| Upper open storage | 3 divided cubbies for quick-access books and frequently used items | |
| Sloped niche display | 2-tier angled right open shelves for decorative display and curation | |
| Adjustable internal shelves | 2 height positions per closed compartment for flexible storage | |
| Soft-close door mechanism | Doors close with damped motion to reduce office noise | |
| Top display ledge | Full-width raised lip prevents decorative items from sliding off top | |
| Leveling adjustment | Adjustable feet compensate for uneven office flooring | |
| Anti-tip anchoring | Wall anchors prevent tipping when fully loaded or accessed by children | |
| File storage compatibility | Internal compartments accommodate A4 and letter-size hanging files | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office behind desk | Placed behind executive desks for file storage and curated display | |
|---|---|---|
| Open office team storage zone | Used in shared work areas for shared document and supply storage | |
| Meeting room side storage | Positioned along meeting room walls for materials, awards and supplies | |
| Reception area display | Installed in reception zones to display branded decor and informational materials | |
| Private office workspace | Used in individual private offices for personal storage and work accessories | |
| Manager office configuration | Paired with executive desks and seating for cohesive premium office suites | |
| Light commercial lounge storage | Deployed in office lounge areas for reading material and accessory storage |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office furniture storage units safety and strength requirements | |
|---|---|---|
| EN 14074:2004 | Office storage units test methods for structural durability | |
| EN 717-1:2004 | Wood-based panel formaldehyde emission testing standard |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Standard for office storage units safety and performance | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Sustainability standard for business and institutional furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural performance | |
|---|---|---|
| GB/T 4897-2015 | Particleboard specifications applicable to MFC carcass material quality | |
| GB 18584-2001 | Indoor decoration material formaldehyde emission limit for wooden furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural performance; 2. GB/T 4897-2015: Particleboard specifications applicable to MFC carcass material quality; 3. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
