PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 1200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Cabinet net weight	56 kg
Top surface distributed load	40 kg
Open shelf distributed load	25 kg
Lower cabinet total distributed load	60 kg
Binder capacity on open shelf	18 lever-arch binders
Lower interior archive-box capacity	6 standard archive boxes
Door hardware cycle rating	50,000 opening cycles
Recommended wall-anchoring force	1.5 kN pull-over resistance
Warranty period	5 years
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Exterior doors and top	25 mm melamine-faced engineered-wood panels with light oak vertical grain
Cabinet side and interior panels	Gray melamine-faced engineered-wood panels with matching impact-resistant edges
Back panel	9 mm gray hardboard or melamine-lined engineered-wood backing
Edge banding	2 mm PVC edge banding on exposed top, door, and side edges
Door locks	Black key-operated cam locks, two lock positions visible
Door hinges	Concealed 35 mm cup hinges with 100-degree opening angle

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Door storage	Three independent swing doors conceal the lower compartment, with two visible key locks for restricted file storage.
Open filing bay	The upper open shelf supports upright binders and frequently used documents without door interference.
Leveling installation	Four adjustable base glides align the cabinet on carpet, tile, or raised office floors.
Anti-tip use	The freestanding cabinet should use two wall anchors when loaded heavily or installed in walkways.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office filing and shared storage	Suitable for workstations, administrative areas, and manager offices where open daily files and locked confidential storage are both required.
Ancillary room and copy-point storage	Fits beside printers or copiers for paper stock, forms, archive boxes, and reference documents, with the top serving as a temporary pickup surface.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-LCK-1204001200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-LCK-1204001200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-LCK-1204001200Open Export Tool

Quick Actions

Post an RFQ

Product Description

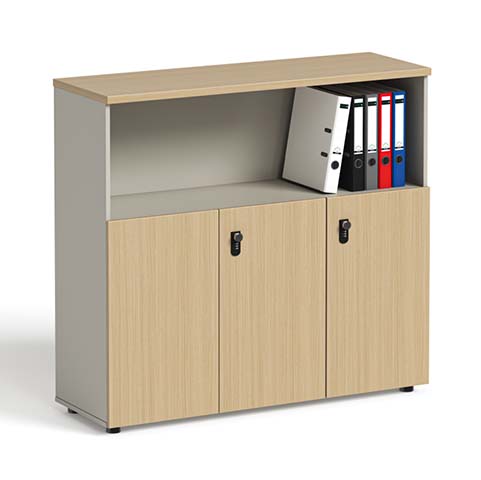

The Combination Office Storage Cabinet with Open Shelf and Three Locking Doors is a freestanding storage cabinet designed to balance visible daily filing with controlled lower storage. Its upper section presents an open shelf for immediate access, while three independent swing doors conceal the lower compartment, creating a clean two-zone layout. Two visible key-operated cam locks provide restricted access within the door section, making the cabinet suitable for files that should be separated from open office materials. Visually, the exterior doors and top use light oak vertical-grain melamine-faced engineered-wood panels, paired with gray cabinet sides and interior panels. The gray interior back continues the understated commercial finish, while black locks and black leveling glides provide discreet functional accents. Exposed top, door, and side edges are protected with 2 mm PVC edge banding, and interior panels use matching impact-resistant edges. Construction uses 25 mm panels for the carcass, top, doors, and open shelf, with a 22 mm door-front specification and a 9 mm gray hardboard or melamine-lined engineered-wood back panel. The doors operate on concealed 35 mm cup hinges with a 100-degree opening angle and carry a 50,000 opening-cycle hardware rating. Four adjustable black glides allow the cabinet to be aligned on carpet, tile, or raised office floors. For safe use, two wall anchors should be fitted when the cabinet is heavily loaded or placed in walkways. The open filing bay supports upright lever-arch binders and frequently used documents, with a stated capacity of 18 binders and a distributed load of 25 kg. The lower cabinet provides space for 6 standard archive boxes and has a total distributed load of 60 kg. The top surface offers a 40 kg distributed load and can serve as a temporary pickup or sorting area in active work settings. This cabinet is well suited to workstations, administrative areas, and manager offices where open reference files and locked confidential storage are needed together. It also works beside printers or copiers for paper stock, forms, archive boxes, and reference documents. Procurement planning should account for site access, wall-anchor installation, leveling on uneven floors, and the need to coordinate locked storage access with staff key control. The cabinet is supplied unbranded under model OFC-LCK-1204001200, with a listed reference assembly time of 40 minutes per set and multi-carton packaging. Its net weight is 56 kg.

Combination Office Storage Cabinet with Open Shelf and Three Locking Doors Specifications
