PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product weight	48 kg
Top surface static load capacity	50 kg
Recommended maximum total load	160 kg
Surface scratch resistance rating	2000 cycles
Product service life	8 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Top countertop	25mm E1 grade particleboard with walnut wood grain melamine finish
Cabinet body panels	18mm E1 grade particleboard with matching walnut melamine laminate
Door and drawer fronts	18mm E1 grade particleboard with walnut melamine finish, edge-banded
Pull handles	Black matte powder-coated zinc alloy
Back panel	3mm hardboard with matching wood grain finish
Internal shelves	18mm particleboard with melamine finish, fixed position
Base plinth	18mm engineered wood with matching melamine finish
Drawer slides	Cold-rolled steel side-mount 3/4 extension slides
Door hinges	Cold-rolled steel concealed hinges with 110 degree opening angle
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Backsplash containment	80mm raised lip around three sides of top surface prevents items sliding off rear/side edges
Upper drawer storage	Two equal-width drawers provide separate enclosed storage for small items
Central open access	Open middle shelf offers immediate access to frequently used items without door operation
Closed side storage	Two side hinged doors conceal stored items to reduce visual clutter
Hardware corrosion protection	Matte black powder coated handles resist smudging and everyday wear
Freestanding installation	No wall mounting required, pre-assembled base sits flat on level flooring
Surface stain resistance	Melamine finished surfaces wipe clean with standard non-abrasive cleaning agents
Drawer operation	Side-mount slides provide smooth pull-out action with 75% extension for full compartment access
Door operation	Concealed hinges allow 110 degree door swing for unobstructed access to internal storage
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Breakroom kitchen use	Functions as a tea/coffee prep station with backsplash to contain spills
Home dining sideboard	Stores tableware, linens and serving pieces adjacent to dining areas
Office storage use	Holds documents, office supplies and small equipment next to workstations
Entryway console use	Provides storage for entry items with open shelf for daily-use objects
Healthcare clinic storage	Stores general supplies in consultation and break areas with easy-clean surfaces
Hotel guest room pantry	Serves as a mini refreshment station with storage for guest amenities

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 312:2010	Particleboard performance requirements, applicable for structural board load rating
EN 14749:2016	Safety and strength requirements for domestic and kitchen storage furniture

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural stability and finish quality
GB 18584-2001	Limit of formaldehyde emission from wooden furniture, applicable for indoor air safety

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural stability and finish quality;
2. GB 18584-2001: Limit of formaldehyde emission from wooden furniture, applicable for indoor air safety;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · STC-WG-1200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · STC-WG-1200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · STC-WG-1200Open Export Tool

Quick Actions

Post an RFQ

Product Description

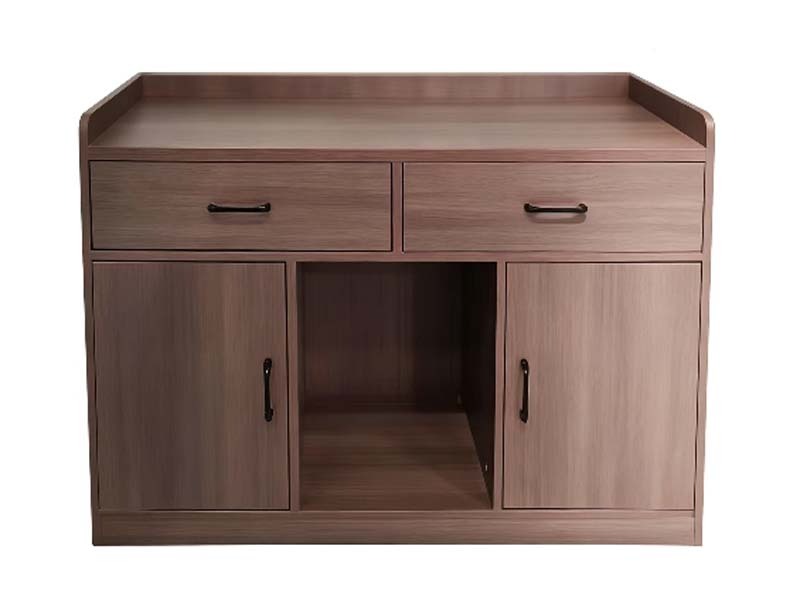

The Walnut Grain Freestanding Storage Cabinet with Raised Backsplash, 2 Drawers, 2 Doors and Open Shelf (model STC-WG-1200) is a versatile unbranded freestanding storage solution defined by a warm, cohesive walnut wood grain aesthetic accented with matte black hardware. Its linear silhouette features a continuous top surface edged with an integrated backsplash, upper rows of two equal-width drawers, a central exposed open shelf, and two lower hinged side doors, creating a balanced composition of concealed, semi-open, and open storage zones that sits flush on finished flooring without required wall fixation.
Constructed with durable E1 grade engineered wood panels finished in scratch and stain-resistant walnut grain melamine, the unit is built with thick structural panels for consistent stability, paired with cold-rolled steel drawer slides and concealed 110-degree opening hinges, plus matte black powder-coated zinc alloy pulls that resist smudging and everyday corrosion. The 9mm hardboard back panel and 25mm thick structural carcass, shelf, and top counter surfaces support robust weight limits across all storage zones, with edge banding on door and drawer fronts for a polished, long-wearing finish.
Functionally, the cabinet is designed for flexible everyday use: the 80mm three-sided raised backsplash contains spills and prevents items from sliding off rear or side edges, the two upper drawers keep small items organized in enclosed separate compartments, the middle open shelf allows instant access to frequently used items without operating doors, and the two lower hinged doors conceal stored items to minimize visual clutter. All melamine surfaces wipe clean easily with standard non-abrasive cleaning products.
This cabinet suits a broad range of both commercial and residential spaces: it works as a tea and coffee prep station in workplace breakrooms, a sideboard for tableware and linens in home dining areas, supply storage adjacent to office workstations, an entryway console for daily essentials, a supply cabinet in healthcare clinic consultation and break spaces, and a compact refreshment pantry in hotel guest rooms.
For procurement, teams should note the unit ships in split flat-pack cartons with a total packaged gross weight of 100kg per set, requires 40 minutes of on-site assembly per unit, and is designed for placement on fully level flooring. Load ratings, rated surface durability, and 8-year service life should be cross-referenced against intended use cases to ensure alignment with facility needs, and cleaning protocols should avoid abrasive agents to preserve the melamine finish.

Walnut Grain Freestanding Storage Cabinet with Raised Backsplash, 2 Drawers, 2 Doors and Open Shelf Specifications
