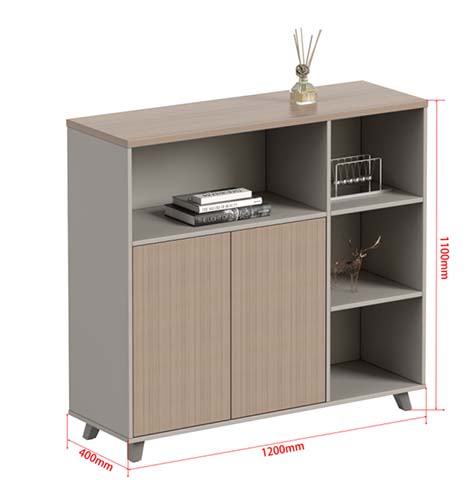

Product supplier1200 mm Two-Door Open-Shelf Storage Cabinet, 18 mm melamine-faced particleboard or MDF in light oak grain
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 400 × 1100 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 52 kg | |
|---|---|---|
| Top surface distributed load | 40 kg | |
| Fixed open-shelf load per shelf | 15 kg | |
| Enclosed cabinet interior shelf load | 20 kg | |
| Total cabinet distributed storage load | 75 kg | |
| Storage compartments | 5 accessible zones | |
| Recommended number of movers | 2 people | |
| Door hinge cycling reference | 50000 cycles | |
| Warranty reference | 3 years | |
| Shelf Distributed Load | 30 kg/shelf |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Top and exterior panels | 18 mm melamine-faced particleboard or MDF in light oak grain | |
|---|---|---|
| Interior and side panels | Grey melamine-faced board with matching sealed edges | |
| Door fronts | Light oak melamine panels with vertical fluted texture | |
| Back panel | 9 mm melamine or hardboard back panel | |
| Edge banding | PVC or ABS edge banding in light grey or matching wood tone | |
| Hinges and fasteners | Steel concealed hinges with cam-lock panel connectors |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Enclosed storage | Two hinged doors conceal a lower cabinet for files, office materials and items requiring visual privacy. | |
|---|---|---|
| Open display storage | Five open shelf spaces provide immediate access to books, binders, baskets and decorative objects. | |
| Right-side vertical organization | A three-tier open column separates frequently used items from the larger enclosed bay. | |
| Floor-standing installation | The cabinet rests on four angled feet and requires placement on a level floor; wall anchoring is recommended for high-use areas. |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 1260 x 460 x 160 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office and workstation support area | Suitable for document storage, personal items and display beside workstations or in team zones. | |
|---|---|---|
| Reception and meeting back-of-room storage | Can be placed behind reception or in meeting rooms for catalogs, refreshment items and decorative display. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16121 | Non-domestic storage furniture safety, strength, durability and stability requirements. | |
|---|---|---|
| EN 16122 | Test methods for domestic and non-domestic storage furniture, covering shelves, doors and structural stability. | |
| EN 13986 | Wood-based panels for construction use with dimensional and characteristic declarations. |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Applicable standards and test results require confirmation |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel dimensions, edge quality, stability and workmanship. | |
|---|---|---|
| GB/T 3325-2017 | Test method for strength and durability of metal furniture hardware, relevant where steel hinges and connectors are supplied. | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels used in interior furniture. |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel dimensions, edge quality, stability and workmanship.; 2. GB/T 3325-2017: Test method for strength and durability of metal furniture hardware, relevant where steel hinges and connectors are supplied.; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels used in interior furniture.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
