PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 400 × 800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Cabinet net weight	62 kg
Top distributed display load	40 kg
Single adjustable shelf load	20 kg
Total cabinet storage load	100 kg
Door hinge rating	40,000 open-close cycles per door
Lock quantity	2 keyed cylinders
Storage capacity	10 standard 75 mm binder widths
Recommended wall-anchor pull-out resistance	500 N
Foot load per support	165 N static
Top load surface	1740 x 360 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Door panels	Matte white wood-based panel, 18 mm thick, with straight sealed edges
Carcass and upper fascia	Light grey wood-based panel with smooth melamine-style surface
Internal shelves	18 mm horizontal wood-based panels supported by four metal shelf pegs per shelf
Locks and keys	Two black key-operated cylinder locks mounted on the front doors
Door hinges	Concealed metal hinges with 110-degree opening angle and side adjustment
Base plinth	Black recessed kick plate or plinth rail with small floor contact pads

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Locked compartment layout	Two keyed bays secure five swing doors, separating the left pair from the right three-door section
Door operation	Each hinged door opens outward to 110 degrees and uses adjustable concealed hinges
Internal adjustment	Each bay accepts shelves at 32 mm pitch positions using removable metal supports
Planter display	The continuous upper shelf holds decorative pots and trays above the closed storage area

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	2 flat-packed cartons
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSC-1800-WH-PL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSC-1800-WH-PL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSC-1800-WH-PLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

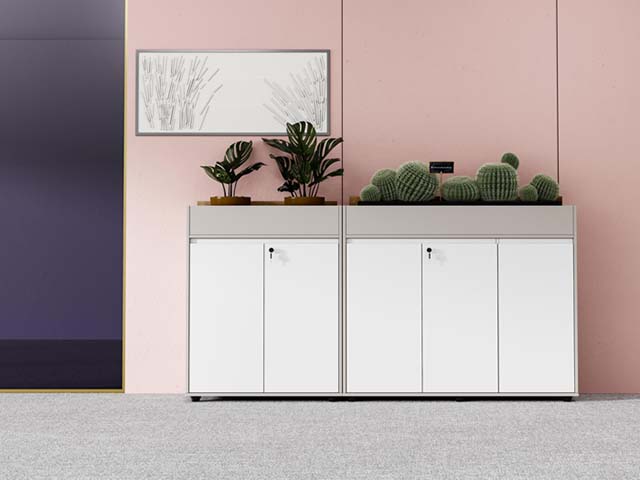

The Low Five-Door Lockable Office Storage Cabinet with Planter Shelf is a modern low cabinet combining concealed storage with an accessible upper display area. Its front elevation features five outward-opening swing doors with a clean matte white finish, set against a light grey carcass and upper fascia. A continuous planter shelf runs across the top, while the black recessed plinth gives the cabinet a grounded, streamlined appearance suited to organised interior settings. Two keyed bays divide the five doors into a left paired-door section and a right three-door section, providing separate lockable storage zones. The cabinet is built from wood-based panels with smooth melamine-style surfaces on the carcass and fascia. The supplied panel thickness is 25 millimetres for the carcass and shelves, 22 millimetres for the door fronts, and 9 millimetres for the back panel, with separate door panel details specifying 18 millimetre matte white wood-based panels with straight sealed edges. Doors use concealed metal hinges with a 110-degree opening angle and side adjustment, and two black key-operated cylinder locks are fitted to the front doors. The base includes a recessed kick plate or plinth rail with small floor contact pads. Internally, horizontal shelves rest on four removable metal shelf pegs per shelf, and each bay supports adjustment at 32 millimetre pitch positions. This allows the storage space to be arranged for binders, stationery, office supplies, or personal items. The rated layout accommodates 10 standard 75 millimetre binder widths, while the upper shelf is intended for decorative pots and trays rather than primary storage. Published load ratings include a 40 kilogram top distributed display load, 20 kilograms per adjustable shelf, and 100 kilograms total cabinet storage load. Each door hinge is rated for 40,000 open-close cycles. The model suits commercial interiors such as offices, co-working spaces, reception zones, meeting rooms, and staff breakout areas, as well as residential studies or home offices where a lower profile and planter display are preferred. It is supplied as a flat-packed product; buyers should plan for two cartons, allow the stated 40-minute assembly time per set, and confirm site access, floor protection, and internal shelving needs before purchase. The unbranded presentation makes the cabinet suitable for projects where a neutral modern look and practical lockable storage take priority over branded detailing.

Low Five-Door Lockable Office Storage Cabinet with Planter Shelf Specifications
