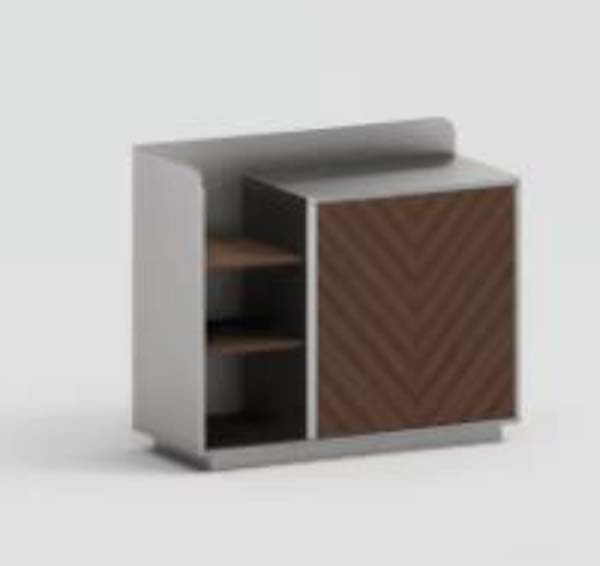

Product supplierModern Low Storage Side Cabinet with Herringbone Wood Door and Glass Compartment, 18mm E1-grade particleboard with matte light gray lacquer finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1000 × 400 × 700 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit net weight | 48 kg | |
|---|---|---|
| Top surface static load capacity | 50 kg | |
| Total internal storage volume | 224 L | |
| Door cycle durability rating | 20000 open/close cycles | |
| Recommended maximum user weight for top surface use | 80 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet carcass | 18mm E1-grade particleboard with matte light gray lacquer finish | |
|---|---|---|
| Right compartment door | MDF substrate with chevron-pattern walnut wood veneer, matte clear coat | |
| Left compartment door | 5mm smoked tempered glass with polished edge trim | |
| Internal shelves | 15mm matching walnut-veneered engineered wood, adjustable with metal shelf pins | |
| Base plinth | 18mm matte light gray lacquered engineered wood, fully enclosed perimeter base | |
| Door sliding track | Anodized aluminum alloy top/bottom track, silent nylon glides | |
| Back panel | 3mm hardboard with matching gray finish, nailed to carcass rear | |
| Top surface edging | 1mm ABS edge banding matching light gray frame finish | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | Sliding double-door design, doors travel along top/bottom aluminum tracks, no outward swing space required | |
|---|---|---|
| Left compartment storage | Two adjustable-height shelves, open display or storage visible through smoked glass | |
| Right compartment storage | Enclosed hidden storage behind solid wood door, 1 fixed interior shelf for concealed item organization | |
| Top surface utility | Flat, level top surface suitable for displaying decor, small media devices, or tabletop accessories | |
| Shelf adjustability | Shelf pins support 5 different height positions at 32mm increments, allowing flexible compartment heights | |
| Floor protection | Integral plinth base with hidden adjustable glides to compensate for uneven floor surfaces | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Living room application | Positioned as a low TV stand or sideboard along a wall for media and item storage | |
|---|---|---|
| Home office application | Used as a low printer stand or office storage credenza next to a work desk | |
| Entryway application | Placed in residential entry foyers to store shoes, keys, and daily carry items | |
| Dining space application | Used as a small dining sideboard to store tableware, linens, and serving pieces | |
| Target user group | Design-focused residential and small commercial users seeking modern mixed-material storage units | |
| Recommended placement clearance | Reserve 100mm rear clearance from walls for ventilation and cleaning access |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
