PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1830 × 510 × 810 mm
Left low-tier module height	650 mm
Middle medium-tier module height	730 mm
Right high-tier module height	810 mm
Middle open shelf compartment dimensions (W x D x H)	580 x 450 x 280 mm
Single cabinet door width	305 mm
Plinth base floor clearance	30 mm
Cabinet door panel thickness	18 mm
Interior shelf depth (enclosed compartments)	470 mm
Middle open shelf panel thickness	25 mm
Carcass back panel thickness	9 mm
Edge band thickness	2 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	73 kg
Maximum distributed top surface load	73 kg
Maximum load per adjustable interior shelf	25 kg
Maximum load per enclosed cabinet compartment	50 kg
Open shelf maximum distributed load	15 kg
Recommended user capacity	15 office staff
Surface scratch resistance rating	2000 cycles
Hinge open/close cycle rating	80000 cycles
Lock mechanism cycle rating	10000 cycles
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass panels	E1 grade engineered wood composite
Exterior surface finish	Matte dark grey melamine laminate
Cabinet door cores	18mm thick particleboard core
Back panel	9mm thick hardboard
Hardware (hinges, locks, handles)	Powder-coated zinc alloy
Plinth base	Powder-coated steel frame
Open shelf interior back panel	Dark matte wood veneer laminate
Edge banding	2mm thick PVC edge trim
Adjustable interior shelves	18mm thick engineered wood with metal shelf pins
Anti-tip hardware	Steel wall anchor brackets
Protective base glides	Nylon floor glides
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Door lock function	Keyed cam locks on each door pair secure three separate storage compartments
Door hinge function	110-degree soft-close concealed hinges allow full access to interior storage
Interior shelf adjustability	5-position height-adjustable shelves in all enclosed compartments allow customized storage for files and supplies
Open shelf function	Recessed middle open niche provides display and frequently accessed item storage
Storage compartment configuration	Three stepped height modules provide tiered enclosed storage plus one open display zone
Anti-tip safety function	Two included steel wall anchors prevent forward tipping when fully loaded or doors are open
File storage compatibility	Enclosed compartments support letter, legal, and A4 size hanging file folders
Surface maintenance function	Stain-resistant matte finish allows wipe-clean maintenance with standard office cleaning products
Floor protection function	Nylon base glides prevent scuffing and scratching on hard office flooring materials
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office back wall storage	Placed behind executive desks to store documents, office supplies, and display decorative items
Open-plan office team storage zone	Positioned along partition walls to provide shared secured storage for adjacent workstations
Reception area storage and display	Used in reception zones to store office materials and display company branding or decor
Conference room auxiliary storage	Placed along conference room walls to store meeting materials, AV accessories, and refreshment supplies
Small office multi-function storage	Suited for home or small private offices to store files, equipment, and personal work items
Recommended matching furniture	Paired with 2000 mm wide executive desks, ergonomic office chairs, and matching mobile filing pedestals
Installation location note	Positioned against load-bearing walls for secure anti-tip anchor attachment

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Office storage furniture safety requirements, applicable to structural stability and load testing
EN 14074:2004	Office furniture movable parts strength and durability, applicable to hinges and lock mechanisms
EN 312:2010	Particleboard performance requirements, applicable to wood-based panel structural grade

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Storage furniture performance standard, applicable to static load and stability testing for commercial office use
ANSI/BIFMA X5.1-2017	General office furniture safety requirements, applicable to edge and surface safety standards

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural performance and finish durability
GB 18580-2017	Formaldehyde emission limit for wood-based panels, required minimum E1 grade for indoor office use
GB/T 4897.3-2003	Particleboard specification for furniture use, applicable to door and carcass panel material requirements

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural performance and finish durability;
2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required minimum E1 grade for indoor office use;
3. GB/T 4897.3-2003: Particleboard specification for furniture use, applicable to door and carcass panel material requirements;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OF-STP-06D-OS-1830

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OF-STP-06D-OS-1830

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OF-STP-06D-OS-1830Open Export Tool

Quick Actions

Post an RFQ

Product Description

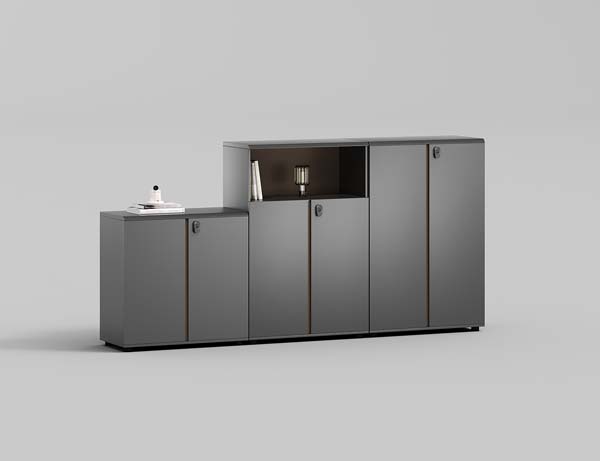

The Stepped Dark Grey Lockable Office Storage Sideboard, model OF-STP-06D-OS-1830, features a modern, asymmetrical stepped silhouette defined by three tiered height modules: a left low section at 650mm, middle medium section at 730mm, and right high section at 810mm, with an overall footprint of 1830mm wide, 510mm deep, and 810mm tall. A recessed open display niche sits within the middle module, measuring 580mm wide, 450mm deep, and 280mm tall, backed with dark matte wood veneer laminate to create a visual focal point alongside enclosed cabinet sections. Each cabinet door is 305mm wide with an 18mm particleboard core, set atop a powder-coated steel plinth base with 30mm floor clearance for easy under-unit cleaning.
Constructed for commercial use, the unit uses E1 grade engineered wood composite for its main carcass, finished with matte dark grey melamine laminate that carries a 2000-cycle surface scratch resistance rating. All edges are sealed with 2mm thick PVC edge trim, while the back panel is formed from 9mm hardboard. Hardware including hinges, locks, and handles is made from powder-coated zinc alloy, with 110-degree soft-close concealed hinges that enable full, quiet access to interior spaces. The product has a net weight of 73kg, with a maximum distributed top surface load of 73kg, 50kg maximum load per enclosed cabinet compartment, 25kg maximum load per adjustable interior shelf, and 15kg maximum distributed load for the open niche.
Practical functionality is tailored to office workflow: keyed cam locks on each door pair secure three separate enclosed storage zones, which support letter, legal, and A4 size hanging file folders. All enclosed compartments include 5-position height-adjustable shelves held in place with metal pins to accommodate files, supplies, or equipment of varying sizes. The middle open niche provides convenient access to frequently used items and display space, while two included steel wall anchors deliver anti-tip safety for full-load or open-door use.
This sideboard fits a range of professional settings: it serves as back-wall storage behind executive desks, shared secured storage along open-plan office partition walls, combined storage and display for reception areas, auxiliary supply storage for conference rooms, and multi-function storage for small private or home offices. It is designed for use by up to 15 office staff, and pairs ideally with 2000mm wide executive desks, ergonomic office chairs, and matching mobile filing pedestals.
For procurement, note the unit ships as one set split across cartons, with a total packaged gross weight of 100kg and total packaging volume of 0.65 cubic meters per set; reference assembly time is 40 minutes per set. When specifying, confirm load requirements align with rated capacities, and plan for secure wall anchoring during installation to support safe long-term use.

Stepped Dark Grey Lockable Office Storage Sideboard with Open Display Niche Specifications
