Automatic mm / inch conversion · Core engineering specifications

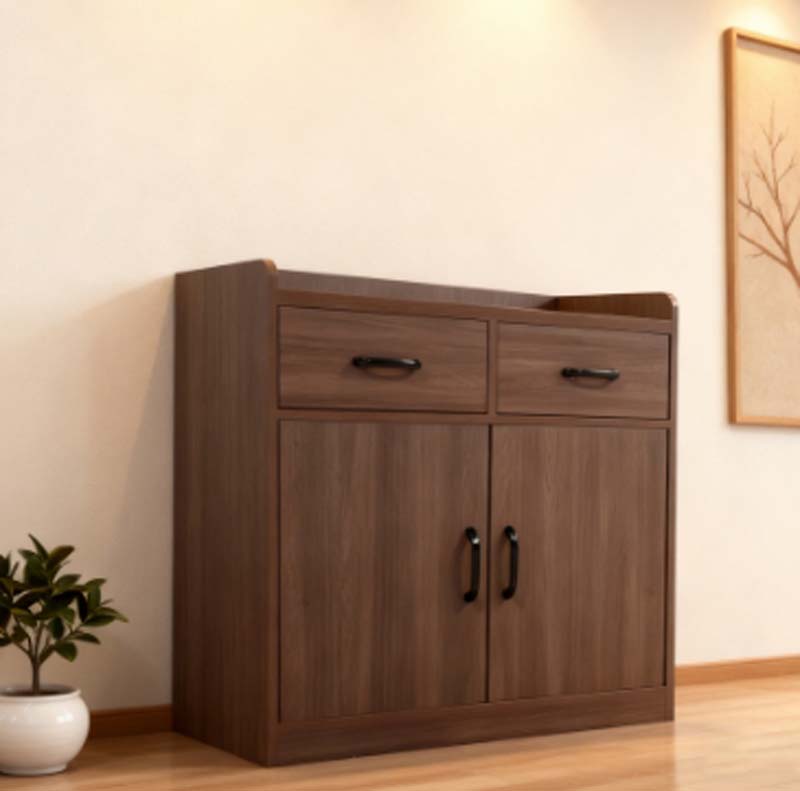

| Overall dimensions | 1016 x 400 x 914 mm | |
|---|---|---|
| Rear back lip height | 50 mm | |
| Individual upper drawer inner dimensions | 440 x 320 x 120 mm | |
| Lower cabinet compartment interior height | 580 mm | |
| Adjustable interior shelf thickness | 18 mm | |
| Carcass side panel thickness | 18 mm | |
| Door panel thickness | 16 mm | |
| Drawer panel thickness | 15 mm | |
| Back panel thickness | 5 mm | |
| Edge banding thickness | 1 mm | |
| Handle length | 100 mm | |
| Floor clearance | 0 mm | |
| Shelf adjustment hole spacing | 32 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Total product net weight | 28 kg | |
|---|---|---|
| Top surface static load capacity | 30 kg | |
| Anti-tip anchor pull-out resistance | 500 N | |
| Recommended user load rating | 80 kg total distributed load | |
| Warranty period | 1 year | |
| Available color options | 3 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main carcass panels | 18mm particle board with walnut grain melamine laminate | |
|---|---|---|
| Door and drawer fronts | 16 mm particle board with matching walnut grain laminate | |
| Back panel | 5mm hardboard with plain brown finish | |
| Adjustable interior shelf | 18mm particle board with walnut laminate finish | |
| Pull handles | Black painted zinc alloy bar pulls | |
| Drawer slides | Cold-rolled steel side-mount 3-section slides | |
| Door hinges | Cold-rolled steel concealed cup hinges | |
| Edge banding | 1mm PVC matching walnut grain finish | |
| Base plinth | 18mm particle board with matching laminate, full floor contact | |
| Rear back lip | 18mm particle board with matching walnut laminate | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
Adjustment / rotation / tilt / mobility / storage features
| Upper drawer operation | Two equal side-by-side drawers pull outward on side-mount slides for small item storage | |
|---|---|---|
| Lower door access | Two side-by-side hinged doors open outward to access enclosed lower storage | |
| Interior shelf adjustment | Single adjustable shelf behind doors supports 3 height positions via pin holes | |
| Top surface retention | Raised rear lip prevents small placed items from sliding off against the wall | |
| Door hinge opening angle | 110 degrees | |
| Drawer slide travel | 300 mm | |
| Hinge cycle rating | 50000 open/close cycles | |
| Drawer slide cycle rating | 30000 open/close cycles | |
| Anti-tip securing | Wall anchor kit included to prevent tipping when loaded | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Residential entryway use | Suitable for entryways to store keys, mail, accessories and everyday items | |
|---|---|---|
| Living room storage use | Suitable for placement under wall art to store media, blankets and household supplies | |
| Dining room sideboard use | Suitable for dining areas to store table linens, cutlery and serving ware | |
| Bedroom storage use | Suitable for bedrooms to store linens, clothing accessories and personal items | |
| Recommended installation | Secure to wall with included anti-tip hardware to prevent tip-over hazards | |
| Cleaning and maintenance | Wipe surfaces with soft dry cloth; avoid abrasive cleaners to preserve laminate finish | |
| Placement requirement | Position flush against interior walls with baseboard clearance accommodated by plinth design |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applicable to safety and performance requirements for domestic storage cabinets | |
|---|---|---|
| EN 312:2010 | Applicable to particle board performance requirements for furniture use | |
| EN 12521:2015 | Applicable to strength, durability and stability requirements for domestic furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable to general technical requirements for wooden furniture cabinets | |
|---|---|---|
| GB/T 4897.3-2015 | Applicable to particle board used for furniture structural components | |
| GB 18580-2017 | Applicable to formaldehyde emission limits for wood-based panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable to general technical requirements for wooden furniture cabinets; 2. GB/T 4897.3-2015: Applicable to particle board used for furniture structural components; 3. GB 18580-2017: Applicable to formaldehyde emission limits for wood-based panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
