PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 400 × 750 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight reference	38 kg
Top distributed static load	50 kg
Shelf distributed static load	30 kg
Total cabinet distributed storage load	80 kg
Door cycle rating	50,000 openings
Hinge load per pair	12 kg per door
Recommended floor load	1.3 kPa at occupied load
Color options	2 finishes visible or standard
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Door faces	Vertical-grain light oak melamine-faced panels with matching edge banding
Carcass sides	Silver-grey melamine-faced panel with square sealed edges
Top panel	Light oak melamine surface with matching edged perimeter and slight overhang
Internal shelf	18 mm melamine-coated wood-based panel with shelf supports
Back closure	9 mm melamine or hardboard back panel fitted into a recessed frame
Hinges and lock	Steel concealed hinges and black keyed cylinder lock with compact escutcheon

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-door access	Two side-by-side hinged doors open from the center to expose one full-width storage bay
Keyed security	Single lock on the right door secures both doors through an internal shoot or interlock connection
Adjustable shelf layout	One shelf uses removable supports and provides two storage levels at 345 mm and 345 mm clear height
Floor levelling	Four adjustable feet compensate for uneven floors and provide 20 mm under-cabinet clearance

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office and workstation storage	Suitable beside desks or in open-plan offices for binders, personal items and departmental supplies, with lockable control of shared contents.
Administrative and educational spaces	Suited to reception back areas, teacher rooms and administration zones where compact floor-standing storage is needed without wall fixing.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSC-800400750-2D

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSC-800400750-2D

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSC-800400750-2DOpen Export Tool

Quick Actions

Post an RFQ

Product Description

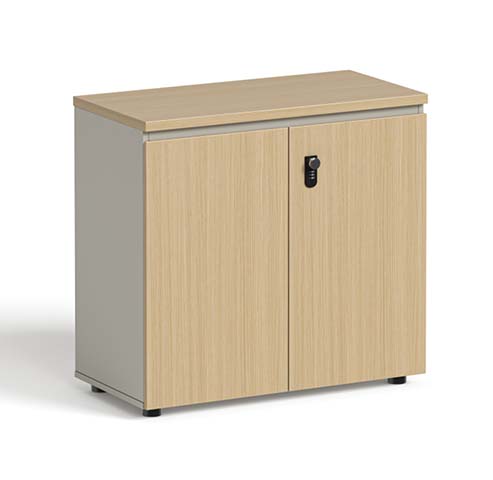

The Low Lockable Two-Door Office Storage Cabinet is a compact floor-standing storage solution with a composed two-tone appearance. Door faces and the top surface use vertical-grain light oak melamine with matching edge banding, while the carcass sides are finished in silver-grey melamine with square sealed edges. The top panel has a slight overhang, and the cabinet rests on four black adjustable levelling feet. Two side-by-side doors meet at the centre, presenting a clean double-door front suited to professional interiors. Construction uses 25 mm thick carcass panels and a 25 mm shelf, with 22 mm door fronts and a 9 mm back closure fitted into a recessed frame. Door faces are melamine-faced panels with matching edge banding, and the internal shelf is an 8 mm melamine-coated wood-based panel supported by removable shelf supports. Steel concealed hinges support the doors, while a black keyed cylinder lock with a compact escutcheon provides controlled access. The cabinet has a reference net weight of 38 kg. The two hinged doors open from the centre to reveal one full-width storage bay. A single lock on the right door secures both doors through an internal shoot or interlock connection, making the cabinet appropriate for shared or departmental contents. The removable shelf creates two storage levels, each with 345 mm clear height, allowing flexible placement for binders, personal items, and general supplies. Four adjustable feet compensate for uneven floors and maintain a 20 mm clearance beneath the cabinet. Rated storage capacity includes a 50 kg distributed static load on the top, a 30 kg distributed static load on the shelf, and an 80 kg total distributed storage load. Each door is supported with a hinge load rating of 12 kg per pair, and the door cycle rating is 50,000 openings. The recommended floor load is 1.3 kPa at occupied load. This low cabinet is suitable beside desks or within open-plan offices, as well as in reception back areas, teacher rooms, and administration zones. Its freestanding form offers storage without wall fixing, while the lockable doors help manage access in shared work settings. For procurement planning, the model is LSC-800400750D and is supplied unbranded. Reference assembly time is 40 minutes per set. Logistics data notes one set across two cartons, while packaged gross weight is recorded as 100 kg per set in three cartons; the reference packaging volume is 0.65 cubic metres per set, with reference carton dimensions of 2100 by 700 by 350 millimetres according to carcass split. Buyers should reconcile carton count and delivery details before ordering.
