Automatic mm / inch conversion · Core engineering specifications

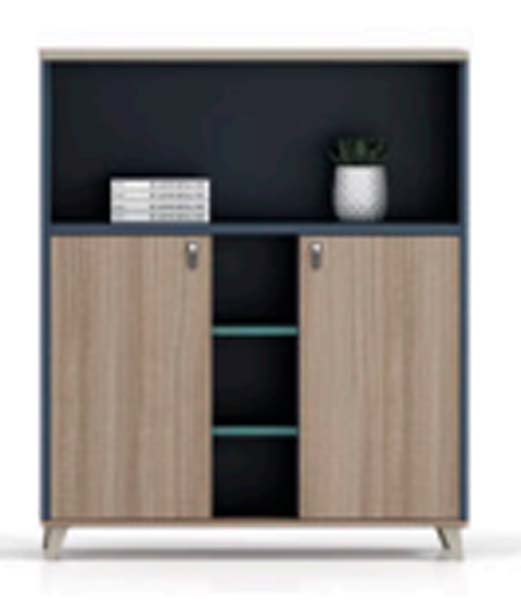

| Overall dimensions (W x D x H) | 1200 x 480 x 1000 mm | |
|---|---|---|
| Upper full-width open display shelf internal height | 280 mm | |
| Central open shelf column width | 260 mm | |
| Per central open shelf compartment internal height | 190 mm | |
| Tapered metal leg height | 100 mm | |
| Floor clearance under cabinet | 80 mm | |
| Main cabinet panel thickness (carcass, doors, shelves) | 16 mm | |
| Edge banding thickness | 1 mm | |
| Open shelf usable depth | 440 mm | |
| Closed cabinet internal usable depth | 450 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Unit net weight | 40 kg | |
|---|---|---|
| Per fixed/adjustable shelf static load capacity | 25 kg | |
| Recommended maximum user weight for top surface standing | 100 kg | |
| Key lock cycle rating | 10000 cycles | |
| Door hinge cycle rating | 50000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet carcass and frame | 16mm E1 grade particleboard with dark blue matte laminate | |
|---|---|---|
| Side cabinet door panels | 16mm particleboard with light oak woodgrain laminate | |
| Central shelf edge accents | 16mm particleboard with teal matte paint finish | |
| Tapered support legs | 1.5mm thick powder-coated carbon steel | |
| Back panel | 3mm thick hardboard with dark matte finish | |
| Door locks | Zinc alloy keyed cylinder locks, 2 keys per lock | |
| Door hinges | Cold-rolled steel concealed soft-close hinges | |
| Shelf surfaces | 16mm particleboard with dark matte laminate, anti-scratch coating | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Dual side locking storage | Two keyed cylinder locks secure left and right closed door compartments | |
|---|---|---|
| Central open adjustable shelving | Three stacked open compartments support height-adjustable shelves for flexible storage | |
| Upper open display compartment | Full-width top open bay holds frequently used items, decor or reference materials | |
| Door opening function | Concealed hinges allow doors to open 110 degrees for full interior access | |
| Elevated leg design | Four angled tapered legs lift cabinet off floor to ease cleaning underneath | |
| Anti-tip safety feature | 2 wall anchor connectors secure cabinet to wall to prevent forward tipping | |
| Per lockable side door dimensions (W x H) | 430 x 620 mm | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Shipping carton dimensions (L x W x H) | 1260 x 540 x 140 mm | |
|---|---|---|
| Packaged gross weight | 45 kg | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Office open plan work areas | Placed along walkways or desk dividers for shared document and supply storage | |
|---|---|---|
| Private executive offices | Positioned behind or beside desks for mixed locked document and open display storage | |
| Small home office spaces | Compact footprint fits against residential walls for home file and supply organization | |
| Reception and waiting areas | Used to store brochures, office supplies and display reception decor | |
| Tea and break room areas | Stores cups, supplies and non-perishable refreshments | |
| Recommended matching configuration | Paired with 1200mm height adjustable desks and ergonomic office chairs for coordinated workspaces |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements for non-locking and locking storage units | |
|---|---|---|
| EN 14074:2004 | Test methods for office storage furniture strength, durability and stability | |
| EN 312:2010 | Performance specifications for particleboard used in furniture construction |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Performance standard for office storage units, applicable to load and stability testing | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Sustainability standard for furniture chemical emissions and material content |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to cabinet dimensional and structural tolerances | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, required for indoor office furniture compliance | |
| GB/T 4897.3-2015 | Performance requirements for particleboard used in furniture structural applications |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to cabinet dimensional and structural tolerances; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required for indoor office furniture compliance; 3. GB/T 4897.3-2015: Performance requirements for particleboard used in furniture structural applications; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
