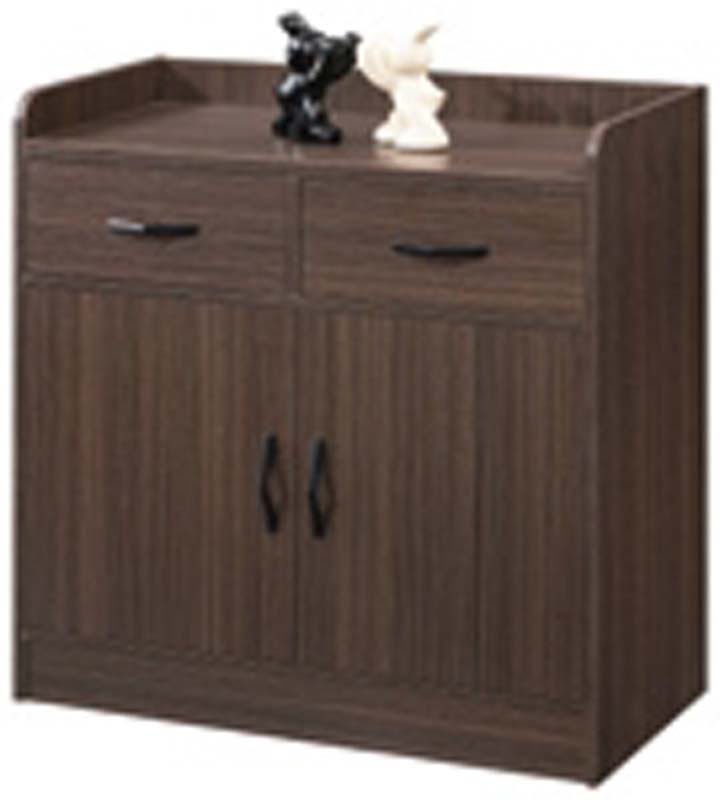

Product supplierDark Walnut Grain Freestanding Storage Cabinet with 2 Drawers, 2 Doors and Gallery Top, 15mm P2 grade MDF with walnut wood-grain melamine veneer
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 840 × 400 × 840 mm | |
|---|---|---|
| Top gallery rail height | 50 mm | |
| Single upper drawer internal dimensions | 380 x 340 x 90 mm | |
| Lower door compartment clear height | 520 mm | |
| Adjustable shelf depth | 360 mm | |
| Adjustable shelf thickness | 15 mm | |
| Door panel thickness | 15 mm | |
| Carcass side panel thickness | 15 mm | |
| Back panel thickness | 3 mm | |
| Edge band thickness | 1 mm | |
| Drawer handle length | 120 mm | |
| Door handle length | 90 mm | |
| Plinth height | 60 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Top surface static load capacity | 120 kg | |
|---|---|---|
| Unit net weight | 40 kg | |
| Recommended maximum user weight for top surface | 0 kg | |
| Hinge open/close cycle rating | 50000 cycles | |
| Drawer slide cycle rating | 30000 cycles | |
| Finish abrasion resistance | 2000 cycles | |
| Warranty period | 1 year | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass panels | 15mm P2 grade MDF with walnut wood-grain melamine veneer | |
|---|---|---|
| Top gallery rails | Same walnut-grain engineered wood as carcass, rounded top edges | |
| Drawer fronts | Walnut-grain MDF matching carcass, flush fit to drawer openings | |
| Lower door panels | Vertical fluted walnut-grain MDF, flush fit to cabinet frame | |
| Drawer handles | Powder-coated black steel horizontal bar pulls | |
| Door handles | Powder-coated black steel diamond-shaped vertical pulls | |
| Drawer slides | Cold-rolled steel side-mount 3/4 extension slides | |
| Door hinges | Cold-rolled steel concealed European-style hinges, 110-degree opening | |
| Back panel | 3mm hardboard with dark brown finish, stapled to carcass rear | |
| Adjustable shelves | 15mm matching walnut-grain MDF with metal shelf pins | |
| Surface finish | Clear urethane topcoat over wood grain, wipe-clean surface | |
| Edge banding | 1mm PVC matching walnut grain, applied to all exposed panel edges |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Two upper drawers | Provide separate closed storage for small items, operate on side-mount slides | |
|---|---|---|
| Two lower hinged doors | Open to expose main enclosed storage compartment, fitted with concealed hinges | |
| Adjustable interior shelf | Has 3 height positions on 32mm spacing, held by metal shelf pins | |
| 3-sided top gallery rail | Contains items placed on top to prevent sliding off rear and sides | |
| Flush plinth base | Sits directly on floor with no visible legs, eliminating under-cabinet gap | |
| Anti-tip wall anchor | Included with hardware to secure cabinet to wall and prevent tipping | |
| Doors open to 110 degrees | Allow full access to interior storage without blocking adjacent walls | |
| Drawers extend 3/4 of depth | Provide access to contents without full pullout stability risk | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential entryway use | Provides storage for keys, mail and entry accessories with contained top surface | |
|---|---|---|
| Home office side storage | Stores office supplies, files and documents next to a desk | |
| Living room accent storage | Holds media accessories, blankets or decor alongside decorative top items | |
| Dining room sideboard use | Stores table linens, cutlery and serving pieces with usable top surface | |
| Small space storage solution | Narrow 400mm depth fits tight hallways and compact rooms | |
| Recommended placement | Position against flat wall with anti-tip anchor secured to wall stud |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applies to safety requirements for domestic storage furniture | |
|---|---|---|
| EN 312:2010 | Applies to particleboard performance specifications for furniture use |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applies to general technical requirements for wooden furniture | |
|---|---|---|
| GB/T 4897.3-2003 | Applies to particleboard used for furniture structural use | |
| GB 18580-2017 | Applies to formaldehyde emission limits for wood-based panels |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applies to general technical requirements for wooden furniture; 2. GB/T 4897.3-2003: Applies to particleboard used for furniture structural use; 3. GB 18580-2017: Applies to formaldehyde emission limits for wood-based panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
