PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1780 × 460 × 820 mm
Overall unit dimensions	1780 x 460 x 820 mm
Raised top shelf height above main cabinet	140 mm
Closed door compartment width	1080 mm
Right open shelving section width	700 mm
Upper right open cubby internal height	360 mm
Lower right open cubby internal height	320 mm
Door panel thickness	18 mm
Open shelf panel thickness	25 mm
Plinth base height	40 mm
Internal cabinet shelf depth	420 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top surface maximum static load	65 kg
Open display shelf maximum static load	25 kg per shelf
Internal cabinet shelf maximum static load	30 kg
Unit net weight	64 kg
Recommended maximum total load	150 kg
Door hinge cycle rating	80000 open/close cycles
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main cabinet carcass	18mm thick engineered wood with dark wood-grain melamine finish
Frame and edge trim	Matte black powder-coated MDF/wood composite trim
Raised top shelf	25mm thick engineered wood with matching dark wood-grain finish
Door handles	Matte black finished metal vertical bar pulls
Open shelf surfaces	25mm thick engineered wood with matching dark wood-grain finish
Plinth base	Matte black finished engineered wood support base
Back panel	3mm thick hardboard with dark finish
Edge banding	1mm thick PVC edge banding matching body/trim colors
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Left double-door storage	Two hinged doors concealing one adjustable interior shelf
Right open display storage	Two fixed open cubbies for visible decor and tableware display
Raised top display shelf	Full-width elevated top surface for decorative items and tableware
Door operation	Hinged doors open 110 degrees with magnetic catch retention
Interior shelf adjustability	Internal cabinet shelf adjusts to 3 height positions
Anti-tip protection	Two wall-mounted anti-tip restraint connectors included
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room accent storage	Placed against sofa back or wall to store media accessories and display decor
Dining room sideboard	Positioned alongside dining tables to hold tableware, linens and serving pieces
Entryway console storage	Used in entryways to store entry essentials and display decorative items
Home office storage	Placed against office walls to store files, supplies and display desk accessories
Small apartment space optimization	Mixed open/closed storage reduces visual clutter in compact living spaces

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Applicable for safety and strength requirements for domestic storage furniture

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements of wooden furniture cabinets
GB 18584-2001	Applicable for limit of formaldehyde emission from wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture cabinets;
2. GB 18584-2001: Applicable for limit of formaldehyde emission from wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SIDE-ASY-1780-DW-BK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SIDE-ASY-1780-DW-BK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SIDE-ASY-1780-DW-BKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

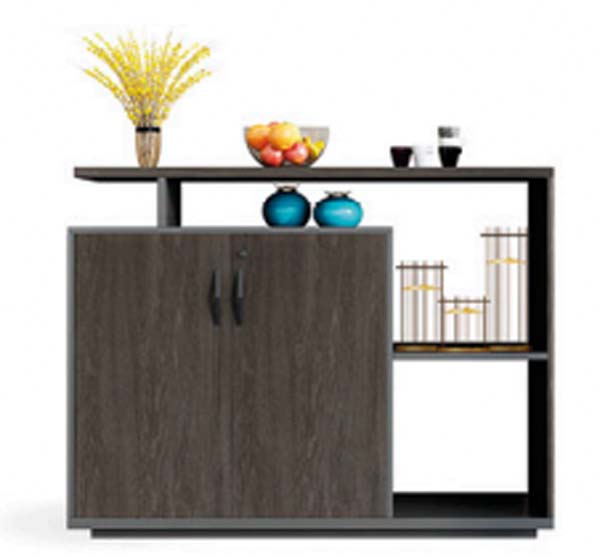

The Modern Asymmetric Two-Tone Storage Sideboard Cabinet is a sleek storage solution defined by its balanced asymmetric silhouette, pairing dark wood-grain surfaces with bold matte black accents for a contemporary, uncluttered aesthetic. The design features a full-width elevated top shelf sitting above the main cabinet body, with a left-side closed double-door compartment and a right-side open shelving section split into two stacked cubbies, creating a deliberate mix of concealed and visible storage space. A low matte black plinth base lifts the unit slightly off the floor, lending a light, streamlined profile despite its substantial storage capacity, while vertical matte black metal bar pulls on the closed doors reinforce the design’s clean, linear visual language. The cabinet is built for durable daily use, with an 18mm thick engineered wood carcass finished in dark wood-grain melamine for the main body and door panels. Frame and edge trim uses matte black powder-coated wood composite, while the raised top shelf and open shelf surfaces use 25mm thick engineered wood in the matching dark wood-grain finish. Matching PVC edge banding lines all exposed edges, a 3mm dark finished hardboard forms the unit’s back panel, and metal door pulls feature a uniform matte black coating. Hinged doors are rated for extended use with a high cycle count for open/close operations, and all load-bearing surfaces are engineered to support consistent static weight for regular household or light commercial use. Functionally, the unit balances concealed storage and open display flexibility. The left double-door compartment houses one adjustable interior shelf that can be set to three different height positions, with doors that open to a wide angle and stay secured with magnetic catches. The two fixed open right cubbies and full-width raised top shelf offer dedicated space for displayed items, while included wall-mounted anti-tip restraints add stability for installation in high-traffic areas. The unit also supports optional cable cutouts for media or electronic device integration if required during setup. This sideboard adapts seamlessly to both residential and light commercial spaces. It works as living room accent storage placed against a wall or sofa back to hold media accessories and display decor, as a dining room sideboard for tableware, linens and serving pieces, as an entryway console for entry essentials, or as home office storage for files, supplies and desk accessories. Its mixed open and closed storage design also makes it well suited for small apartment spaces, helping reduce visual clutter in compact layouts. For procurement planning, note that the unit ships in multiple cartons per set, with a straightforward assembly process suitable for two-person installation. The total packaged weight and volume should be factored into shipping and receiving logistics, and the anti-tip hardware should be installed immediately after assembly for safe use, particularly in spaces accessible to children or pets.

Modern Asymmetric Two-Tone Storage Sideboard Cabinet Specifications
