PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 800 mm
Overall cabinet size	1200 x 400 x 800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	44 kg
Top distributed load	45 kg
Shelf distributed load	20 kg per shelf
Total cabinet storage load	90 kg
Storage bays	3 lockable vertical bays
Storage levels per bay	2 levels
File capacity	42 standard suspension-file folders
Door swing rating	100000 open-close cycles
Recommended occupancy clear zone	450 mm in front
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Door panels	18 mm wood-grain laminated panel with vertical oak-look finish
Carcass and side panels	Melamine-laminated particle board with light grey exposed end panel
Top panel	25 mm matching wood-grain laminated board with edge banding
Back panel	8 mm melamine-laminated backing board
Adjustable shelves	18 mm melamine-laminated board with shelf-pin supports
Locks and hinges	Black three-digit combination locks with steel lock cylinders and concealed steel hinges

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Secured storage	Three hinged doors with vertical three-digit combination locks controlling individual office storage bays
Door operation	Side-opening hinged doors with 110-degree swing and two concealed hinges per leaf
Shelf adjustment	Shelf pins provide 32 mm vertical shelf-position increments on each bay side panel
Floor levelling	Four adjustable 20 mm feet compensate for uneven floors and keep the plinth raised for cleaning

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office and workstation storage	Suitable beside desks or along partition walls for binders, samples and personal-office materials because the 800 mm height keeps counters accessible.
Meeting, administration and staff support areas	Provides three lockable bays for shared documents, stationery and service items without blocking sightlines in medium-height storage zones.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16121:2013+A1:2017	Non-domestic storage furniture safety, strength, durability and stability requirements for office use.
EN 16122:2012+A1:2017	Test methods for storage furniture, applicable to shelf loading, door operation and stability verification.
EN 717-1:2004	Formaldehyde release determination by chamber method, recommended for laminated board emission acceptance.
EN 15372:2015+A1:2023	Durability and stability requirements for office storage furniture used in non-domestic environments.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA E3-2023	Storage furniture sustainability criteria, applicable if material, emissions and procurement reporting are required.
ANSI/BIFMA X5.9-2019 section review	Use shelf, lock and door-cycle clauses as factory acceptance references where the supplied edition is confirmed.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to dimensional accuracy, edge finishing and structural stability verification.
GB/T 3325-2017	Metal furniture hardware test methods, applicable to lock and hinge durability acceptance if hardware is supplied as metal furniture.
GB 18580-2017	Formaldehyde emission limit for wood-based panels, recommended for panel-substrate procurement and incoming inspection.
GB/T 10357.5-2011	Furniture mechanical surface test method, applicable to shelf and cabinet strength acceptance.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional accuracy, edge finishing and structural stability verification.;
2. GB/T 3325-2017: Metal furniture hardware test methods, applicable to lock and hinge durability acceptance if hardware is supplied as metal furniture.;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended for panel-substrate procurement and incoming inspection.;
4. GB/T 10357.5-2011: Furniture mechanical surface test method, applicable to shelf and cabinet strength acceptance.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSC-3D-1200400800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSC-3D-1200400800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSC-3D-1200400800Open Export Tool

Quick Actions

Post an RFQ

Product Description

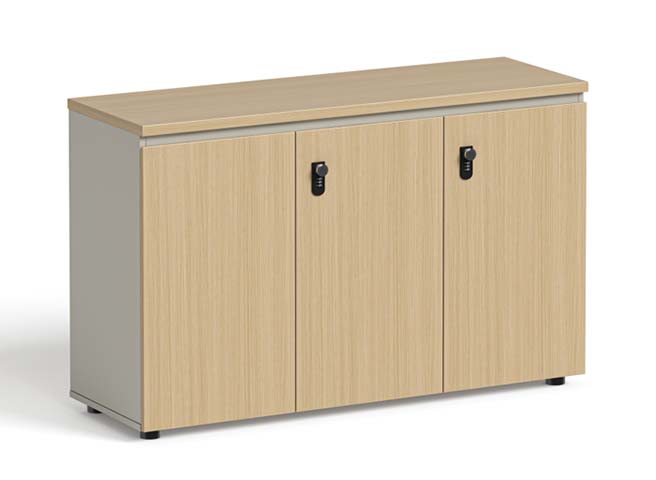

The Three-Door Low Lockable Storage Cabinet is an unbranded low storage cabinet, model LSC-3D-1200400800, designed for organized and individually secured storage in professional environments. Its overall size is 1200 x 400 x 800 mm, giving it a compact horizontal profile that can sit beside desks or along partition walls without creating a tall visual barrier. Visually, the cabinet combines a light grey melamine-laminated particle board carcass and exposed end panels with wood-grain laminate doors and a matching top. The door panels use an 18 mm laminated panel with a vertical oak-look finish, while the 25 mm top includes edge banding for a neat, coordinated appearance. Black three-digit combination locks and black levelling feet provide understated visual contrast. Three side-opening hinged doors form three separate vertical storage bays, each offering two storage levels. The doors swing through 110 degrees on two concealed steel hinges per leaf, supporting clear access while maintaining a clean exterior. Construction uses panel thicknesses suited to everyday office storage: 25 mm carcass panels, a 22 mm door or drawer front specification, 25 mm shelves in the overall specification, and a lightweight backing panel. Adjustable shelves are made from 18 mm melamine-laminated board and rest on shelf-pin supports, with 32 mm vertical position increments along each bay side panel. This allows interior height to be adapted for binders, stationery, samples, personal-office items, or suspension files. Across the cabinet, the file capacity is 42 standard suspension-file folders. Each bay is controlled by its own vertical three-digit combination lock with a steel lock cylinder, making the unit useful where staff or teams require separate lockable compartments. The stated top distributed load is 45 kg, each shelf supports a 20 kg distributed load, and total cabinet storage load is 90 kg. Four adjustable 20 mm feet compensate for uneven floors and raise the plinth to facilitate cleaning. The cabinet is well suited to offices, workstation clusters, administration areas, meeting support zones, and staff storage areas. Its low height keeps counters accessible and helps preserve sightlines in medium-height storage zones. It also fits residential studies, home offices, or utility spaces where a lockable three-compartment cabinet is needed. Procurement teams should plan for assembly, referenced at 40 minutes per set, and should verify packaging details at order placement because the logistics data includes both a two-carton reference and a three-carton packaged gross-weight reference. Suitable use should respect the stated shelf, top, and total storage loads, while buyers seeking a particular laminate appearance should review the oak-look and light grey finish before purchase.

Three-Door Low Lockable Storage Cabinet Specifications
