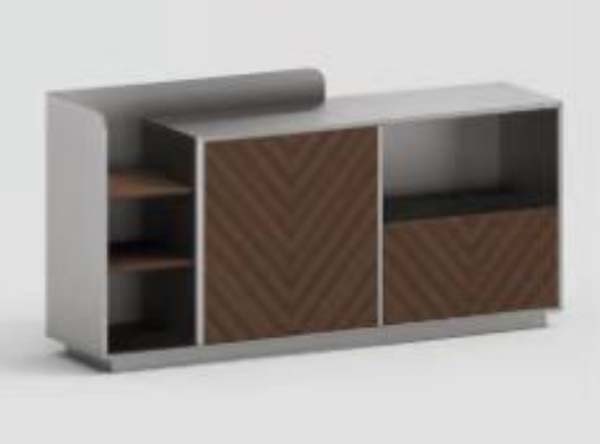

Name: Contemporary Chevron Door Low-Profile TV Media Console with Open Storage
Brand: QILISEN
SKU: RCCJS0

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2000 × 400 × 620 mm
Overall assembled dimensions	2000 x 400 x 620 mm
Left open bay width	450 mm
Open shelf internal height	160 mm
Center closed door width	700 mm
Right section width	850 mm
Right upper open shelf internal height	180 mm
Door panel thickness	18 mm
Top panel thickness	25 mm
Plinth base height	50 mm
Adjustable shelf thickness	15 mm
Curved left end radius	80 mm
Rear cable cutout diameter	60 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top surface maximum static load	165 lb
Open shelf maximum static load	22 lb
Closed cabinet shelf maximum load	20 lb
Recommended maximum TV size	85 in
Hinge cycle rating	50000 cycles
Product net weight	52 kg
Leveler adjustment range	10 mm
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main carcass frame	E1-grade engineered wood (MDF/particleboard core) with matte light grey laminate finish
Door panels	Chevron/herringbone patterned wood veneer over engineered wood core
Internal shelves	Matching engineered wood with wood-grain laminate finish
Plinth base	Matte grey engineered wood with wrapped finish, full-length perimeter support
Door hinges	Cold-rolled steel soft-close concealed hinges
Edge banding	PVC edge banding on all exposed panel edges
Curved end panel	Bent laminated engineered wood with matte grey finish
Anti-tip hardware	Powder-coated steel wall anchor kit
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management system	Three rear 60mm diameter cutouts route AV cords and power cables
Adjustable shelving	Two adjustable shelves in left open bay with 32mm increment height positions
Soft-close door mechanism	Concealed hinges slow door closure to prevent slamming and reduce wear
Mixed storage layout	Combines open AV-access bays and concealed cabinet storage for clutter-free media setup
Soundbar accommodation	Full-length flat top surface supports soundbars up to 1800mm width
Integrated levelers	Four adjustable feet at base corners stabilize unit on uneven flooring
Ventilation for AV equipment	Open shelf design provides passive airflow to prevent overheating of electronics
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room entertainment setup	Primary use as television stand for 85inch flat-screen TVs in residential living rooms
Home theater media center	Suitable for dedicated home theater spaces to house AV receivers, game consoles, and speakers
Modern open-plan living space	Contemporary chevron and matte grey finish complements minimalist, mid-century, and modern interior design
Commercial office lounge	Can be used in office break rooms, reception lounges, or waiting areas for display screens and media storage
Apartment and small-space installation	Low-profile depth fits against standard residential walls without protruding into walkways
Under-wall-mounted TV installation	Sits below wall-mounted televisions to hold soundbars, media players, and decorative items

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and performance requirements for domestic and kitchen storage furniture and worktops
EN 16121:2013	Storage furniture for non-domestic use - Safety, strength and durability requirements
EN 13986:2004	Wood-based panels for use in construction - Characteristics, conformity evaluation and marking

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2019	Storage furniture performance standard, applicable for commercial installation load and stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural and finish quality
GB 18584-2001	Limit of harmful substances in wood furniture for indoor use, applicable to formaldehyde emissions
GB/T 4893.4-2013	Surface wear resistance test for furniture surfaces, applicable to laminate and veneer finishes

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish quality;
2. GB 18584-2001: Limit of harmful substances in wood furniture for indoor use, applicable to formaldehyde emissions;
3. GB/T 4893.4-2013: Surface wear resistance test for furniture surfaces, applicable to laminate and veneer finishes;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TVC-CHV-GRY-2000

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TVC-CHV-GRY-2000

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TVC-CHV-GRY-2000Open Export Tool

Quick Actions

Post an RFQ

Product Description

The QILISEN Contemporary Chevron Door Low-Profile TV Media Console, model TVC-CHV-GRY-2000, presents a streamlined, modern silhouette anchored by a full-length matte grey plinth base that wraps the unit’s perimeter. Its facade balances clean lines with textural interest: soft curved end panels finished in matte grey frame a central cabinet door decorated with a chevron wood veneer pattern, while open storage bays sit to the left and right of the closed section for a balanced mixed open-and-closed storage layout.
Constructed primarily from E1-grade engineered wood with a matte light grey laminate finish, the console features a 25mm thick top panel, 18mm thick door panels, and internal shelves finished with a matching wood-grain laminate. All exposed panel edges are sealed with 2mm PVC edge banding, while curved end panels are formed from bent laminated engineered wood for smooth, seamless corners. Doors operate on cold-rolled steel soft-close concealed hinges rated for 50,000 open-close cycles, and a powder-coated steel anti-tip wall anchor kit is included for secure installation.
Functionally, the console supports flexible media organization. Three rear cable cutouts route power and AV cords to reduce tangling, while open shelf designs provide passive ventilation to prevent electronic overheating. The left open bay includes two adjustable shelves with set height increment positions, and the flat full-length top surface accommodates soundbars. Integrated corner levelers adjust to stabilize the unit on uneven flooring, with a defined adjustment range for consistent placement. The top surface supports a maximum static load of 165 lb, with rated weight limits for open and closed cabinet shelves to support media equipment and accessories. The unit is sized to hold televisions up to 85 inches, and its low-profile depth sits flush against standard walls without protruding into walkways.
This console fits a range of residential and commercial spaces: it works as a primary entertainment stand in residential living rooms, a media hub for dedicated home theaters, a complementary storage piece for modern open-plan living areas, and a functional media unit for office break rooms, reception lounges, and waiting areas. It also pairs well with wall-mounted televisions to hold soundbars, media players, and decorative items in apartment settings.
For procurement, note that each unit ships across multiple cartons, with a reference assembly time of 40 minutes per set. Facilities teams and residential buyers should account for the total packaged weight and volume when planning delivery and installation, and ensure wall mounting points are available to secure the included anti-tip hardware during setup.

Contemporary Chevron Door Low-Profile TV Media Console with Open Storage Specifications
