Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 800 x 400 x 1200 mm | |
|---|---|---|
| Upper open shelf internal height | 320 mm | |
| Upper open shelf internal depth | 360 mm | |
| Lower enclosed cabinet internal height | 780 mm | |
| Lower cabinet adjustable shelf height positions | 3 positions | |
| Door panel thickness | 18 mm | |
| Carcass side panel thickness | 16 mm | |
| Back panel thickness | 5 mm | |
| Base plinth height | 50 mm | |
| Top edge trim thickness | 20 mm | |
| Recessed horizontal handle length | 160 mm | |
| Edge banding thickness | 1 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Total static load capacity | 225 kg | |
|---|---|---|
| Door hinge open angle | 110 degrees | |
| Hinge cycle rating | 80000 cycles | |
| Door lock key differ count | 200 combinations | |
| Surface scratch resistance rating | 2000 revolutions | |
| Product net weight | 42 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery

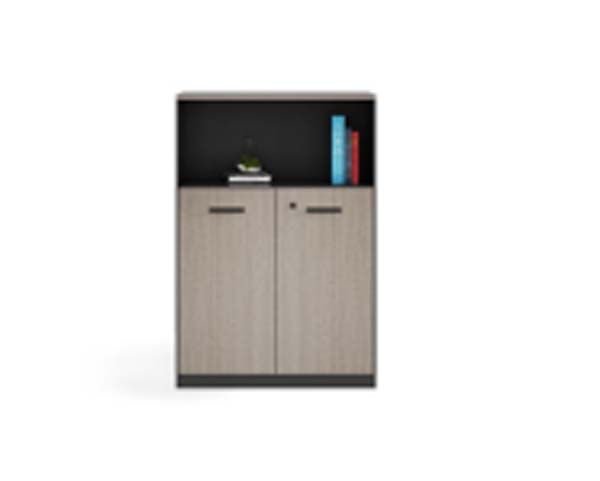

| Main cabinet carcass | 16mm E0 grade engineered wood particleboard with light oak woodgrain laminate | |
|---|---|---|
| Lower cabinet doors | 18mm E0 grade engineered wood with matching light woodgrain laminate, horizontal recessed handles | |
| Upper open shelf back panel | 5mm hardboard with matte black laminate finish | |
| Top and base trim | 20mm engineered wood with matte black powder-coated finish | |
| Door hardware | Cold-rolled steel concealed hinges with zinc plating | |
| Door lock | Zinc alloy cylinder lock with 2 included keys | |
| Handles | Integrated recessed horizontal pulls routed into door panels, matte black finish | |
| Adjustable shelves | 16mm engineered wood with matching light woodgrain laminate, metal shelf pins | |
| Edge banding | 1mm PVC edge banding matching light woodgrain finish, heat-sealed to panels | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Lockable lower storage | Central key lock secures both lower doors simultaneously for confidential document storage | |
|---|---|---|
| Adjustable lower shelf | 1 removable shelf adjusts to 3 vertical height positions to accommodate mixed office supply sizes | |
| Open upper display shelf | Fixed open upper compartment for frequently accessed items, books or decorative objects | |
| Recessed door pulls | Integrated horizontal recessed handles eliminate protruding hardware to reduce snag risk in high-traffic office areas | |
| Freestanding installation | Self-supporting unit requires no wall mounting for standard use, includes 2 anti-tip safety brackets | |
| Easy-clean surface | Laminate finish resists common office spills and stains, wipes clean with a dry or damp cloth | |
| Leveling feet | 4 adjustable plastic leveling feet at base to compensate for uneven office flooring | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Private executive offices | Positioned adjacent to desks for secure confidential file storage plus decorative display space | |
|---|---|---|
| Home office spaces | Compact footprint fits small home workspaces for home office document and supply organization | |
| Small meeting rooms | Stored meeting supplies and reference materials with open shelf for meeting room decor items | |
| Reception areas | Used behind reception counters for stored office materials and displayed branding or decor objects |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable for structural stability verification | |
|---|---|---|
| EN 14074:2004 | Office storage furniture test methods for strength and durability of moving parts | |
| EN 312:2010 | Particleboard performance requirements, applicable for core panel material verification |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structural quality checks | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use | |
| GB/T 4893.8-2013 | Surface abrasion resistance test method for furniture coatings, for surface durability verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structural quality checks; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use; 3. GB/T 4893.8-2013: Surface abrasion resistance test method for furniture coatings, for surface durability verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
