PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 400 × 800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	32 kg
Top surface static load capacity	50 kg
Total internal storage volume	0.21 m³
Adjustable foot leveling range	10 mm
Lock mechanism keyed differ count	200
Door open angle	110 degrees
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Door panels	Light oak wood grain melamine-faced particleboard
Side panels	White matte melamine-faced particleboard
Top panel	Light oak wood grain melamine-faced particleboard
Back panel	3mm hardboard
Handles	Brushed nickel-finish aluminum alloy
Adjustable feet	Injection-molded polypropylene
Lock cylinder	Zinc alloy with chrome finish
Hinges	Cold-rolled steel with nickel plating
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central locking system	Single key lock secures both doors simultaneously
Adjustable internal shelving	2 removable shelves support 3 configurable storage heights
Floor leveling function	4 adjustable feet compensate for uneven floor surfaces
Dual-door swing access	Two side-hinged doors open to provide full-width internal access
Scratch-resistant top surface	Melamine finish resists daily scuffs from placed objects
Wall anchor compatibility	Pre-drilled rear points allow anti-tip anchoring
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open office workstation storage	Placed under or beside desks for personal document and supply storage
Office reception area	Positioned against walls for decor display and visitor item storage
Home office study	Used as compact side storage for books and office essentials
Meeting room auxiliary storage	Placed at room corners for stationery and meeting supply storage
Small office entryway	Used for visitor shoe cover and entry supply storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Formaldehyde emission	EN 312 P2 grade
Surface abrasion resistance	EN 14322 Class 2
Stability verification	EN 14073:2004

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Panel formaldehyde emission	GB/T 18580E1 grade
Structural strength test	GB/T 10357.5
Hardware durability	GB/T 3324

Standardized tender description text

This product must meet the following technical requirements:
1. Panel formaldehyde emission: GB/T 18580E1 grade;
2. Structural strength test: GB/T 10357.5;
3. Hardware durability: GB/T 3324;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · STC-LWD800-2DL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · STC-LWD800-2DL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · STC-LWD800-2DLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

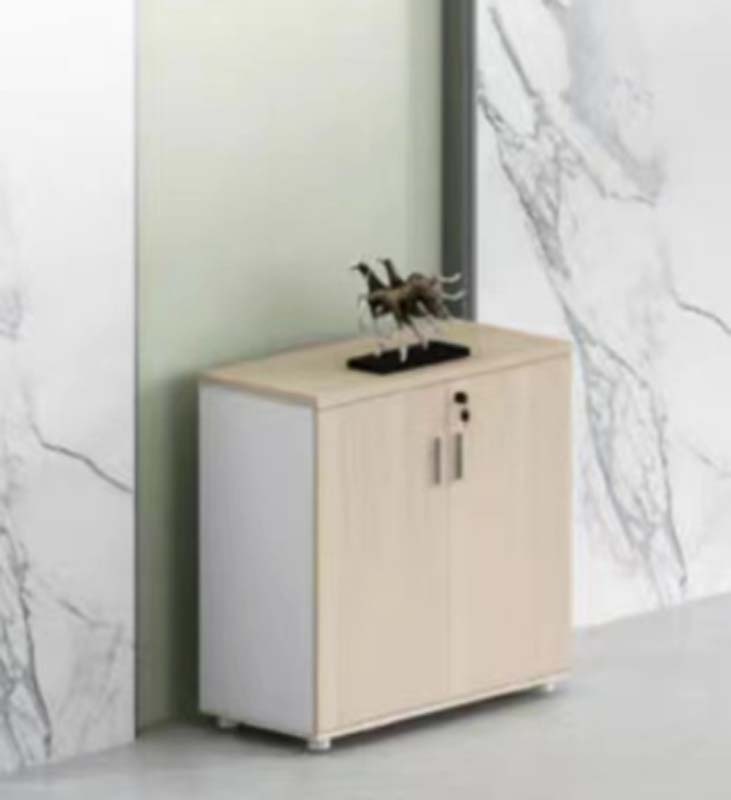

The Light Wood Grain Lockable Double-Door Office Storage Cabinet is a low-profile, freestanding storage solution designed to blend functional utility with understated visual appeal. Its balanced two-tone design pairs light oak wood-grain melamine finishes on the door panels and top surface with crisp white matte melamine side panels, accented by sleek brushed nickel-finish aluminum alloy handles that complement both contemporary and classic interior palettes. The compact, boxy form features two side-hinged doors that sit flush with the cabinet frame, creating a clean, uncluttered silhouette that fits unobtrusively in both work and living spaces. Constructed for durable daily use, the cabinet is built from melamine-faced particleboard, with 25mm thick carcass panels, 25mm thick shelves, 22mm thick door fronts, and a hardboard back panel, all finished with 2mm edge banding to protect against routine wear. Hardware components include nickel-plated cold-rolled steel hinges, a chrome-finished zinc alloy lock cylinder, injection-molded polypropylene adjustable feet, and standard metal connecting fasteners. The melamine top surface resists scuffs from everyday placed items, supporting stable placement of frequently used objects. Practical functionality is centered on accessible, secure storage: a single central key lock secures both doors at once, with enough unique key combinations to support multi-unit installations without unnecessary key overlap. The doors swing open to 110 degrees for full, unobstructed access to the interior, which holds two removable shelves that create three configurable storage heights to accommodate items of varying sizes. Four adjustable feet level the unit on uneven floor surfaces, while pre-drilled rear mounting points support anti-tip wall anchoring for added stability. This cabinet suits a wide range of spaces: it fits under or beside workstations in open offices for personal document and supply storage, stands against reception area walls for decor display and visitor item storage, serves as compact side storage for books and essentials in home office studies, tucks into meeting room corners for stationery and supply organization, and works in small office entryways to hold entry supplies and visitor accessories. Procurement teams should note the unit ships in multiple cartons per set, requires on-site assembly, and does not include wall anchor hardware or cable management openings as standard fittings. The unbranded design allows flexible integration with existing furniture schemes without conflicting with established brand aesthetics.

Light Wood Grain Lockable Double-Door Office Storage Cabinet Specifications
