PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 400 × 1200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	42 kg
Total static storage load	80 kg
Adjustable shelf load	25 kg
Top surface load	40 kg
File capacity	36 standard lever-arch files
Door cycle rating	50000 opening cycles
Leveling adjustment	10 mm
Color options	2 visible colors: light oak and warm grey
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main carcass	18 mm melamine-faced engineered wood board with grey exposed side panels
Door panels	Light oak vertical-grain melamine-faced board with matching edge banding
Top panel	Light oak melamine cap with sealed edge banding and slight perimeter overhang
Interior surfaces	Light grey melamine interior and open-shelf surfaces
Back panel	5 mm hardboard or melamine-lined backing panel set into a rear groove
Hardware	Black key lock, concealed hinges, four metal shelf pins and black adjustable glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open shelf storage	One fixed upper open bay, 380 mm high, for frequently used binders, magazines and retrieval trays
Locked lower storage	Two hinged doors secured by one central key lock for confidential files and office materials
Adjustable interior shelf	One 18 mm shelf uses four metal pins at 32 mm vertical intervals for binders or box files
Floor leveling	Four black adjustable glides provide 10 mm height correction and protect floor finishes

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	1 flat-pack carton
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office filing zone	Suitable beside workstations or in walk-up storage areas for A4 binders, folders and frequently accessed reference files
Administrative workspace	Suitable for reception back-offices, teacher rooms and administrative teams needing open retrieval plus lockable lower storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSC-800-400-1200-OD2

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSC-800-400-1200-OD2

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSC-800-400-1200-OD2Open Export Tool

Quick Actions

Post an RFQ

Product Description

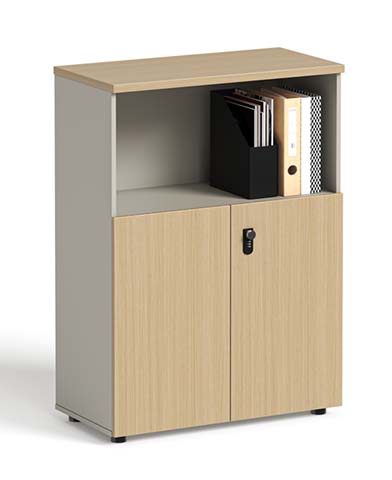

The Low Office Storage Cabinet with Open Shelf and Locked Double Doors is a floor-standing storage unit designed for organised office filing. Its low, horizontal form combines an open upper bay with a double-door lower compartment, creating a practical layout where frequently used items can remain visible while confidential materials are secured behind doors. The exterior pairs light oak-embossed melamine door panels and top cap with grey exposed side panels, finished with black hardware for a balanced commercial appearance. The cabinet is built from melamine-faced engineered wood, with a light grey melamine interior and open-shelf surfaces. The light oak door panels feature vertical grain and matching edge banding, while the top panel has sealed edge banding and a slight perimeter overhang. The back panel is set into a rear groove, and concealed hinges maintain a clean front elevation. Four black adjustable glides support the cabinet and allow 10 mm of height correction, helping the unit sit evenly while protecting floor finishes. A central black key lock secures both hinged doors. Functionally, the fixed upper open bay is suited to binders, magazines, retrieval trays and other regularly accessed items. Behind the double doors, the lower storage area includes one adjustable shelf supported by four metal pins at 32 mm vertical intervals, allowing the interior to be arranged for binders or box files. The cabinet provides file capacity for 36 standard lever-arch files and carries a total static storage load of 80 kg, with the adjustable shelf rated for 25 kg and the top surface for 40 kg. The doors are rated for 50000 opening cycles, supporting regular daily use in busy work environments. This model is well suited to office filing zones beside workstations, walk-up storage areas, reception back-offices, teacher rooms and administrative workspaces that require both quick retrieval and lockable lower storage. It also works in residential studies or home offices where documents and office materials need a tidy, accessible home. Procurement teams should note that the product is unbranded and supplied as a flat-pack item. Reference logistics indicate possible packing variations, so carton count, package dimensions and gross weight should be confirmed for each delivery batch before arranging freight or site handling. Assembly time is referenced at 40 minutes per set. Specifiers should also review load requirements, door access, floor levelling conditions and whether the grey carcass with light oak fronts complements the intended interior scheme.

Low Office Storage Cabinet with Open Shelf and Locked Double Doors Specifications
