PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	900 × 400 × 800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	38 kg
Shelf static load	30 kg per shelf
Top static load	40 kg
Total cabinet static load	100 kg
Recommended storage capacity	12 standard A4 archive boxes
Door cycle rating	50,000 operations
Adjustable foot leveling range	10 mm
Color options	2 colors
Warranty period	3 years
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass	Cold-rolled steel with grey powder-coated exterior and formed box-frame edges
Doors	White powder-coated steel flush panels with a narrow central reveal
Internal shelf	Steel shelf with four corner rests or side-panel supports
Hinges	Concealed or side-fixed steel hinges with pivot action
Lock	Black key-operated cylinder lock securing both doors
Feet	Black hard-plastic rectangular adjustable glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Door operation	Two side-hinged doors open from the central seam for full-width access to the enclosed storage bay
Locking function	One front key lock secures both doors and includes two removable keys
Shelf adjustment	One internal shelf supports two storage zones and can be moved at 32 mm side-panel increments
Floor installation	The cabinet is freestanding on four leveling glides and does not require wall anchoring for normal office use

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight	42 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office storage	Suitable beside workstations or in administrative areas for binders, files, consumables and personal items
Utility and pantry storage	Can store cups, cleaning supplies, catalogs or backup equipment while providing a restrained display surface

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSC-900-400-800-2D

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSC-900-400-800-2D

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSC-900-400-800-2DOpen Export Tool

Quick Actions

Post an RFQ

Product Description

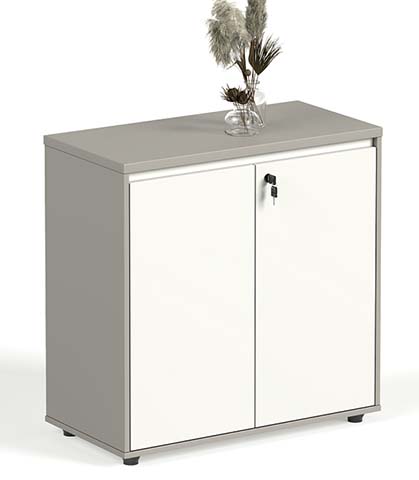

The Low Lockable Two-Door Office Storage Cabinet, model LSC-900-800D, is an unbranded low metal cabinet designed for organized, accessible storage in professional and domestic interiors. Its floor-standing form presents a compact rectangular profile with a grey powder-coated steel carcass and contrasting white flush steel doors. A narrow central reveal separates the two doors, while a black key-operated cylinder lock provides a discreet functional accent at the front. Formed box-frame edges give the cabinet a structured appearance, and four black hard-plastic rectangular glides support the unit with a restrained, practical visual finish. Construction is based on cold-rolled steel, with a grey powder-coated exterior on the carcass and white powder-coated steel door panels. The overall dimensions are 900 x 400 x 800 mm. The carcass panels and internal shelf are 25 mm thick, the back panel is 9 mm thick, and the door fronts are 22 mm thick. The cabinet uses concealed or side-fixed steel pivot hinges, while the single internal steel shelf rests on four corner supports or side-panel supports. Shelf height can be adjusted in 32 mm increments, allowing the interior to be arranged as two storage zones suited to different item heights. The two side-hinged doors open from the central seam, giving full-width access to the enclosed storage bay. One front key lock secures both doors and is supplied with two removable keys, making the cabinet suitable for storing documents, supplies, or personal belongings that need controlled access. The adjustable glides provide a 10 mm leveling range to help the cabinet sit steadily on uneven floors. It is freestanding and does not require wall anchoring for normal office use. Rated capacity supports typical office storage rather than heavy equipment: each shelf has a static load rating of 30 kg, the top supports 40 kg, and the total cabinet static load is 100 kg. The recommended storage capacity is 12 standard A4 archive boxes, and the door mechanism carries a 50,000-operation cycle rating. The cabinet weighs 38 kg net. This model works well beside workstations, in administrative zones, or in open-plan and private offices for binders, files, consumables, and personal items. It can also serve in utility areas or pantries for cups, cleaning supplies, catalogs, or backup equipment, with its top offering a restrained display or staging surface. Procurement teams should plan for floor space, door clearance, and delivery handling. Reference logistics indicate split packaging, so buyers should confirm final carton count, packaged weight, and assembly arrangements before ordering; the listed reference assembly time is 40 minutes per set.
