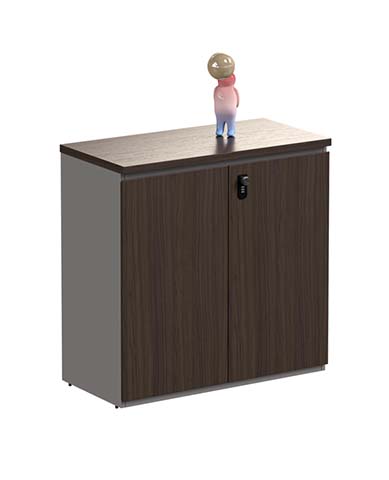

Product supplierDark Ribbed Two-Door Lockable Office Storage Cabinet, 18 mm melamine-faced particleboard with sealed exposed edges
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 800 × 400 × 800 mm | |
|---|---|---|
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total distributed top load capacity | 40 kg | |
|---|---|---|
| Base and carcass total static storage capacity | 80 kg | |
| Hinge service life | 100,000 door-opening cycles | |
| Door maximum opening angle | 110 degrees | |
| Electronic lock service life | 50,000 code-operated cycles | |
| Shelf support retention load | 12.5 kg per support | |
| Anti-tip restraint rated pull-out force | 500 N | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg | |
| Recommended Procurement Warranty | Frame 10 years; hardware 5 years; upholstery 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass sides and deck | 18 mm melamine-faced particleboard with sealed exposed edges | |
|---|---|---|
| Top panel | 25 mm light neutral melamine-faced wood-based panel with 2 mm black PVC edge band | |
| Door panels | 18 mm dark brown melamine-faced board with vertical ribbed laminate surface | |
| Back panel | 9 mm hardboard or melamine-faced HDF set into a framed rear rebate | |
| Shelf | 18 mm melamine-faced particleboard with 1 mm PVC edge band on all four edges | |
| Edge protection | 2 mm PVC edge band on top and exposed front edges, 1 mm on internal parts |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Two-door locked storage | paired ribbed doors swing open to 110 degrees and lock together at the central stile | |
|---|---|---|
| Electronic code entry | keypad unlocks the cabinet with user-set numeric codes and a mechanical override backup | |
| Adjustable shelf positioning | one shelf supports storage on two levels using 32 mm pitch holes and four steel pins | |
| Internal file storage | clear compartment accepts A4 and foolscap folders in upright orientation across a 748 mm shelf width |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | place beside desks for binders, consumables, and personal items secured by user code | |
|---|---|---|
| Manager or supervisor room | use under a side wall or adjacent to a desk for confidential documents and locked stationery |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 General Technical Requirements for Wooden Furniture | use for panel fit, dimensional stability, and finish acceptance. | |
|---|---|---|
| GB/T 3325-2017 General Technical Requirements for Metal Furniture | apply to steel base, hinges, brackets, and coated metal parts. | |
| GB 18580-2017 Formaldehyde Emission for Wood-Based Panels | require supplier panel declaration for indoor air-quality acceptance. | |
| GB/T 10357.5-2011 Furniture Mechanical Tests for Storage Units | recommended for shelf, door, and structural load testing. |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017 General Technical Requirements for Wooden Furniture: use for panel fit, dimensional stability, and finish acceptance.; 2. GB/T 3325-2017 General Technical Requirements for Metal Furniture: apply to steel base, hinges, brackets, and coated metal parts.; 3. GB 18580-2017 Formaldehyde Emission for Wood-Based Panels: require supplier panel declaration for indoor air-quality acceptance.; 4. GB/T 10357.5-2011 Furniture Mechanical Tests for Storage Units: recommended for shelf, door, and structural load testing.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
