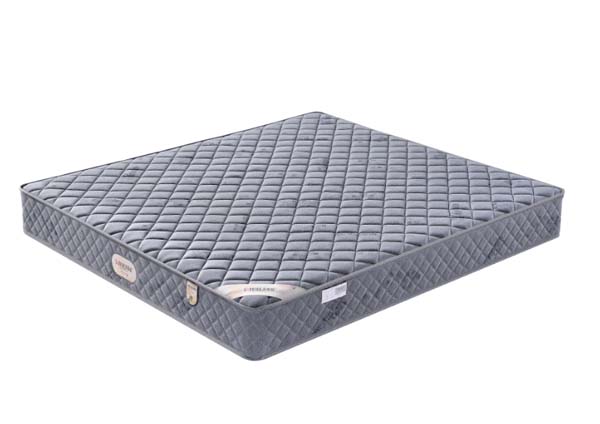

Product supplierGrey Square-Quilted Medium Profile Innerspring Bed Mattress, Charcoal grey knitted polyester ticking, square-quilted
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1530 × 2040 × 230 mm | |
|---|---|---|
| Top quilted square cushion size | 80 x 80 mm | |
| Side diamond-quilt border stitch pitch | 45 mm | |
| Quilted comfort layer thickness | 25 mm | |
| Core support unit thickness | 180 mm | |
| Bottom padding layer thickness | 25 mm | |
| Corner radius | 50 mm | |
| Side handle length (visible tag area) | 120 mm | |
| Border fabric height | 230 mm | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight | 32 kg | |
|---|---|---|
| Static sleep load capacity | 360 kg | |
| Firmness rating | Medium (6/10) | |
| Coil wire gauge | 2.3 mm | |
| Pressure test cycle rating | 80000 cycles | |
| Compressed recovery time | 72 hours | |
| Comfort layer foam density | 25 kg/m³ | |
| Cover fabric abrasion resistance | 30000 cycles | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Top sleep surface cover | Charcoal grey knitted polyester ticking, square-quilted | |
|---|---|---|
| Side border fabric | Matching grey polyester fabric, diamond-quilted for edge reinforcement | |
| Quilted comfort padding | 25mm polyurethane foam + 200g/m² polyester wadding | |
| Support core | Tempered steel innerspring open coil unit | |
| Edge binding | Stitched polypropylene tape reinforcement along all perimeter seams | |
| Carry handles | Reinforced fabric webbing handles stitched to side border | |
| Product labels | Woven brand/care/fire safety labels stitched to side border | |
| Bottom surface fabric | Non-slip grey polyester base fabric | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Double-sided usable design | Symmetrical top/bottom padding allows rotation and flipping for even wear | |
|---|---|---|
| Vacuum roll packaging compatibility | Compressible core allows compressed, rolled, boxed delivery for easy transport | |
| Breathable air circulation | Quilted fabric cover and open coil core promote airflow to reduce heat buildup | |
| Edge support perimeter | Stitched reinforced border reduces edge sag when sitting on mattress sides | |
| Pressure distribution | Coil core and quilted padding distribute body weight across full sleep surface | |
| Motion transfer reduction | Connected coil unit provides moderate motion isolation for shared sleep surfaces | |
| Hypoallergenic ticking treatment | Fabric treated to resist dust mite and allergen buildup | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential bedrooms | Suitable for queen size bed frames in master or guest bedrooms | |
|---|---|---|
| Medium-term rental accommodation | Durable construction fits 5 year use cycle for furnished rental properties | |
| Back and side sleepers | Medium firmness provides balanced support for common sleep positions | |
| Bed frame compatibility | Fits standard slatted, platform, or box spring bed frames with queen dimensions | |
| Children/teen bedrooms | Durable stitched cover resists abrasion from regular use in youth rooms | |
| Budget hotel standard rooms | Meets basic fire safety and durability requirements for economy accommodation |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Domestic mattress safety | BS EN 597:2015 | |
|---|---|---|
| Mattress performance testing | BS EN 1957:2012 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Mattress fire safety | GB 20400 | |
|---|---|---|
| Soft furniture durability | GB/T 33282 |
Standardized tender description text
This product must meet the following technical requirements: 1. Mattress fire safety: GB 20400; 2. Soft furniture durability: GB/T 33282; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
