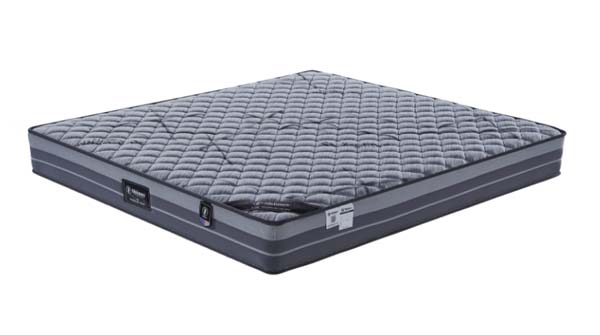

Product supplierCharcoal Grey Quilted Grid Medium-Profile Innerspring Mattress, 350 gsm double-knit polyester charcoal ticking
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1524 × 2032 × 254 mm | |
|---|---|---|
| Quilted top comfort layer thickness | 76 mm | |
| Support core thickness | 152 mm | |
| Base support layer thickness | 26 mm | |
| Side border wall thickness | 70 mm | |
| Corner radius | 38 mm | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity | 272 kg | |
|---|---|---|
| Net product weight (queen size) | 41 kg | |
| Firmness rating | 6/10 (medium-firm) | |
| Motion isolation rating | 4/5 | |
| Edge support static load capacity | 113 kg per edge | |
| Recommended sleeper weight per side | 136 kg | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg | |
| Recommended Procurement Warranty | Frame 10 years; hardware 5 years; upholstery 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Top cover fabric | 350 gsm double-knit polyester charcoal ticking | |
|---|---|---|
| Quilted comfort layer | 28 kg/m³ high-density polyurethane padding | |
| Support core | Individually pocketed steel innerspring coils | |
| Edge encasement | 32 kg/m³ high-resilience foam border | |
| Side border fabric | Woven polyester ticking with horizontal contrast piping | |
| Tape edge binding | Reinforced woven polyester edge tape | |
| Internal layer adhesive | Low-VOC water-based lamination adhesive | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Sleep surface design | Quilted grid tufted top to secure internal padding layers | |
|---|---|---|
| Edge support system | Full perimeter foam encasement to prevent edge roll-off | |
| Motion transfer control | Individually wrapped pocket coils to isolate movement between sleepers | |
| Design orientation | One-sided no-flip construction with single designated sleep surface | |
| Air ventilation | Porous knit cover and border fabric to enable air circulation through layers | |
| Compatibility | Fits standard full/queen size bed frames, slatted bases, platform beds and box springs | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential primary bedrooms | Suitable for queen/full size beds for dual or single adult sleepers | |
|---|---|---|
| Guest bedrooms | Durable, low-maintenance option for occasional guest use | |
| Rental and furnished properties | Cost-effective, durable construction suitable for high-turnover accommodation | |
| Platform bed and slat base setups | Compatible with solid slat, sprung slat and platform support structures | |
| All sleep positions | Balanced medium-firm support for back, side and stomach sleepers |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1957:2012 | Applicable standard for domestic mattresses, testing functional performance and durability | |
|---|---|---|
| EN 1334:1996 | Applicable standard for mattress cover fabric abrasion and pilling resistance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 26706-2011 | Applicable standard for flexible polyurethane foam for furniture, testing density and resilience | |
|---|---|---|
| GB 18401-2010 | Applicable national safety code for textile products, formaldehyde and pH limits | |
| GB/T 35607-2017 | Applicable standard for mattress and upholstered furniture VOC emission limits |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 26706-2011: Applicable standard for flexible polyurethane foam for furniture, testing density and resilience; 2. GB 18401-2010: Applicable national safety code for textile products, formaldehyde and pH limits; 3. GB/T 35607-2017: Applicable standard for mattress and upholstered furniture VOC emission limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
