PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1500 × 2000 × 200 mm
Top quilt panel thickness	20 mm
Perimeter border height	180 mm
Corner radius	30 mm
Piping width	10 mm
Edge support width	70 mm
Label placement offset	250 mm from corner
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static weight capacity	300 kg
Firmness rating	Medium firm
Net product weight	37 kg
Compressed roll package expansion time	72 hours
Coil count (double size)	396
Seam stitch pitch	3 stitches per cm
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Top cover fabric	Grey grid-patterned knitted polyester
Side border fabric	Navy blue woven polyester
Edge piping	Light grey stitched fabric binding
Support core	13.5 gauge steel Bonnell innerspring coils
Comfort fill layers	20mm high-resilience polyurethane foam
Edge support	High-density polyurethane foam encasement
Quilt backing	Non-woven polyester scrim
Label material	Woven fabric and coated paper tags
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Surface support	Even coil-supported sleeping surface with zoned pressure distribution
Edge reinforcement	Foam encasement prevents perimeter sag when seated on mattress edges
Care rotation	Periodic 180-degree rotation recommended to equalize wear
Compressed delivery compatibility	Suitable for vacuum roll-pack shipping for domestic delivery
Breathable surface	Knit quilt top allows air circulation to reduce heat buildup
Fit compatibility	Designed to rest on standard slatted, platform or box spring bed frames
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Domestic bedroom use	Suitable for master, guest or teenager bedrooms on standard double bed frames
Bunk bed compatible	200mm low profile fits height-restricted bunk and loft bed installations
Rental property furnishing	Durable medium-firm support suits high-turnover residential rental applications
Hotel budget room fit	Meets basic domestic durability requirements for mid-scale budget hotel rooms
Dormitory use	Sturdy coil construction supports regular daily use in student accommodation
Platform bed installation	Functions without a separate box spring on solid or slatted platform bases

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1957:2012	Furniture – Mattresses and bed bases – Test methods for functional performance
EN 597-1:2015	Furniture – Assessment of ignitability of mattresses – Ignition by smouldering cigarette
EN 597-2:2015	Furniture – Assessment of ignitability of mattresses – Ignition by match flame equivalent

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 20400-2006	Leather and fur safety; applicable if any leather components are used in border details
GB/T 26706-2011	General technical requirements for furniture mattresses; mandatory baseline for domestic Chinese market
GB 18401-2010	National general safety technical code for textile products; applies to cover fabrics

Standardized tender description text

This product must meet the following technical requirements:
1. GB 20400-2006: Leather and fur safety; applicable if any leather components are used in border details;
2. GB/T 26706-2011: General technical requirements for furniture mattresses; mandatory baseline for domestic Chinese market;
3. GB 18401-2010: National general safety technical code for textile products; applies to cover fabrics;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MAT-QT-NAVY-200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MAT-QT-NAVY-200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MAT-QT-NAVY-200Open Export Tool

Quick Actions

Post an RFQ

Product Description

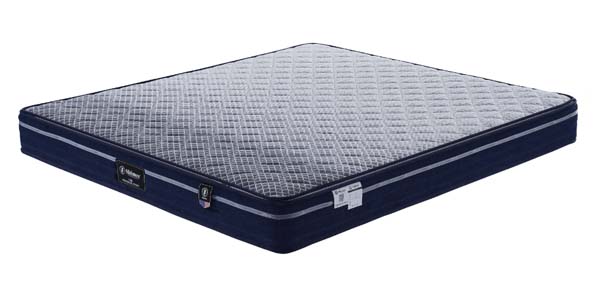

The Low Profile Quilted Grid Knit Innerspring Mattress with Navy Piped Border, model MAT-QT-NAVY-200, is an unbranded rectangular sleep solution with a clean, streamlined visual profile. The grey grid-patterned knitted polyester top panel features 10mm light grey stitched fabric piping along its perimeter, meeting a deep navy blue woven polyester side border for a crisp, modern look. Its 200mm total profile includes gently rounded 30mm corners, with woven fabric and coated paper identification tags positioned 250mm from each corner for unobtrusive branding visibility. Built for consistent long-term use, the mattress features a core of 13.5 gauge steel Bonnell innerspring coils, with 396 coils for this double size, encased in 70mm wide high-density polyurethane foam edge supports reinforced with 40mm thick side rails. The 20mm quilted top sits over 20mm high-resilience polyurethane foam comfort fill, backed by non-woven polyester scrim, with seams stitched at 3 stitches per cm for durable construction. The mattress supports a 300kg static weight capacity, with a medium firm feel, and weighs 37kg net. At delivery, the product arrives vacuum roll-packed, and requires 72 hours to fully expand before use. Functionally, the evenly arranged coils deliver zoned pressure distribution across the sleep surface, while the foam encasement prevents perimeter sag when users sit on mattress edges. The breathable knitted quilt top allows consistent air circulation to reduce heat buildup during rest. Users are advised to rotate the mattress 180 degrees periodically to equalize wear over time. It is designed to fit standard slatted, platform, or box spring bed frames, including bases with 15mm thick bent plywood or solid timber slats, and does not require a separate box spring for installation on solid or slatted platform bases. This mattress suits a wide range of residential and light commercial spaces. Its low 200mm profile makes it ideal for height-restricted bunk and loft beds, while its durable construction works well in master, guest, and teenager bedrooms, high-turnover residential rental properties, mid-scale budget hotel guest rooms, and student dormitories. Procurement teams should note the product ships as one set split across two cartons, with a total packaged gross weight of 130kg and 0.9m³ total packaging volume, requiring 40 minutes per set for assembly. It supports up to 5 controlled assembly cycles for repositioning or reinstallation needs, and should be matched to appropriate double size bed frames with 1500mm by 2000mm sleep surface dimensions for proper fit.

Low Profile Quilted Grid Knit Innerspring Mattress with Navy Piped Border Specifications
