PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 2000 × 280 mm
Pillow top comfort layer thickness	50 mm
Support core thickness	230 mm
Corner radius	50 mm
Tufting grid spacing	200 mm
Side border height	230 mm
Seam width between pillow top and core	8 mm
Edge support width	70 mm
Minimum under-bed clearance required	200 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	60 kg
Static load capacity	500 kg
Recommended user weight per sleeper	150 kg
Firmness rating	Medium (6/10)
Spring coil count (queen size)	960
Spring wire diameter	2.0 mm
Comfort foam density	25 kg/m³
Fabric abrasion resistance	50000 cycles
Expected structural lifespan	10 years
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Top sleeping surface fabric	400g/㎡ white knitted polyester ticking
Pillow top filling	40mm high-elastic polyurethane foam + 10mm glue-free cotton padding
Support core unit	Independent pocketed innerspring coils encased in non-woven fabric
Perimeter edge support	High-density foam encasement
Side border fabric	Textured woven polyester border fabric
Tufting fasteners	Polyester twine tufts securing internal layers
Isolation layer between foam and springs	60g/㎡ non-woven fabric pad
Bottom surface fabric	Non-slip woven polyester base fabric
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Internal layer stabilization	Uniform grid tufting secures all upper comfort layers to prevent shifting
Edge seating support	Reinforced foam perimeter provides consistent support when sitting on bed edges
Motion isolation	Individually wrapped pocket coils reduce cross-bed motion transfer for undisturbed sleep
Breathability design	Knitted ticking and woven side border promote air circulation to reduce heat buildup
Surface compatibility	Fits standard slatted, platform, and adjustable bed frames without additional foundation
Maintenance requirement	Rotate 180 degrees every 6 months to equalize wear for extended lifespan
Unpacking expansion	Reaches full thickness within 72 hours after unpacking if vacuum roll-packed
No-flip design	Single-sided sleep surface eliminates need for regular flipping
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Shipping carton dimensions (compressed roll pack)	400 x 400 x 1900 mm
Gross shipping weight	65 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential master bedroom	Queen size suitable for couples as primary sleep surface in standard bedrooms
Hotel guest rooms	Durable medium-firm design suitable for high-turnover hospitality accommodation
Apartment rental furnishing	Neutral white finish and standard sizing fit most rental property bed frames
Adjustable bed base setups	Flexible innerspring construction works with motorized adjustable bed frames
Guest bedroom use	Balanced comfort works for occasional guests with varying sleep preferences

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1957:2012	Test methods for mattresses and bed bases, functional performance measurement

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB 18401-2010 Category B	National safety technical code for textile products, direct skin contact class

Standardized tender description text

This product must meet the following technical requirements:
1. GB 18401-2010 Category B: National safety technical code for textile products, direct skin contact class;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · PTIM-180200-W

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · PTIM-180200-W

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · PTIM-180200-WOpen Export Tool

Quick Actions

Post an RFQ

Product Description

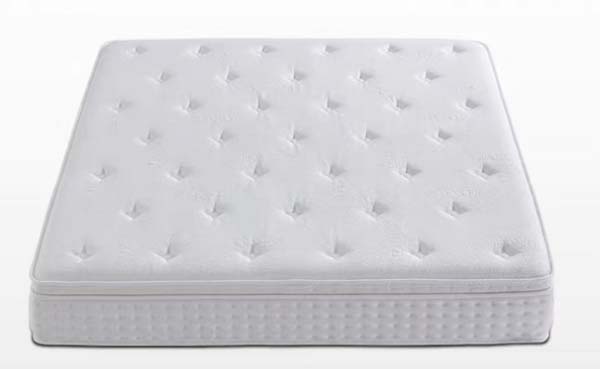

The White Tufted Pillow Top Innerspring Mattress, model PTIM-180200-W from an unbranded line, presents a clean, timeless sleep surface tailored for broad furnishing applications. Its Queen size measures 1800 x 2000 x 280 mm, with softly rounded 50 mm corners and a crisp white upholstered finish. A uniform tufting grid spaced 200 mm apart creates a structured, tailored appearance across the top surface, with an 8 mm clean seam separating the 50 mm pillow top layer from the 230 mm support core, finished with a textured woven polyester side border for a polished, cohesive look. Construction prioritizes lasting comfort and structural integrity. The top sleeping surface uses 400g/㎡ white knitted polyester ticking, covering a pillow top filled with 40 mm high-elastic polyurethane foam and 10 mm glue-free cotton padding. A 60g/㎡ non-woven fabric pad separates comfort layers from the support core, which holds 960 independent pocketed innerspring coils encased in non-woven fabric, constructed with 2.0 mm diameter spring wire. The core is surrounded by 70 mm wide high-density foam encasement for reinforced perimeter support, while polyester twine tufts secure all upper layers to prevent shifting. The base uses non-slip woven polyester fabric, and the unit is designed for use with 15 mm bent plywood or solid timber slats. Functional design supports consistent, restful use. The mattress carries a medium firmness rating of 6/10, with 25 kg/m³ comfort foam delivering balanced cushioning. Individually wrapped pocket coils reduce cross-bed motion transfer to minimize sleep disruption for partners, while the knitted ticking and woven side border promote air circulation to reduce heat buildup. The reinforced foam perimeter delivers even support when sitting on bed edges, and the mattress fits standard slatted, platform, and adjustable bed frames without an additional foundation. It supports a 500 kg total static load, with a 150 kg recommended weight limit per sleeper, and requires 180-degree rotation every 6 months to equalize wear. If delivered in vacuum roll-pack, it reaches full thickness within 72 hours of unpacking. This mattress suits residential master bedrooms as a primary sleep surface for couples, high-turnover hotel guest rooms, furnished rental apartments due to its neutral finish and standard sizing, adjustable bed base setups, and home guest bedrooms for visitors with varied sleep preferences. For procurement, note that shipping options include a compressed roll pack, with alternative non-compressed packaging available for orders that require immediate use. The unit requires 40 minutes of assembly time per set, and matching bed frames should be confirmed to accommodate the standard Queen size dimensions for a proper fit.

White Tufted Pillow Top Innerspring Mattress Specifications
