PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1830 × 2030 × 270 mm
Pocket spring core height	200 mm
Top comfort layer stack height	70 mm
Perimeter edge trim width	30 mm
Side border panel height	240 mm
Quilted indent row count (width direction)	9 rows
Quilted indent column count (length direction)	11 columns
Top surface quilted fabric thickness	2 mm
Bottom non-woven base layer thickness	1 mm
Dimensional tolerance	±10 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total net weight	46 kg
Maximum static user load (single sleeper)	159 kg
Total distributed static bed load	227 kg
Firmness rating	Medium
Motion isolation rating	High
Cover fabric abrasion resistance	30000 cycles
Warranty period	10 years
Foam density (comfort layers)	30 kg/m³
Spring wire diameter	2.2 mm
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Top cover fabric	Quilted white knitted polyester fabric
Comfort layer 1	35 mm wave-shaped pressure-relief foam
Comfort layer 2	30 mm high-density support foam
Spring isolation layer	200 g/sqm polyester felt pad
Core support system	5-zone individually wrapped pocket coil springs
Edge support	Foam-encapsulated perimeter with black reinforced binding trim
Side border fabric	Vertical stitched striped woven polyester fabric
Bottom base layer	120 g/sqm black non-woven fabric
Edge trim binding	Woven black polyester webbing
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Zoned support system	5-zone pocket spring alignment for head, shoulder, lumbar, hip, leg support
Edge support function	Foam-encapsulated perimeter prevents edge sag and roll-off when sitting or sleeping near edges
Pressure relief function	Contoured wave foam top distributes body weight to reduce pressure points on shoulders and hips
Motion isolation function	Individually wrapped pocket coils minimize motion transfer between sleep partners
Breathability function	Knitted top cover and 3D side border fabric promote airflow to reduce heat buildup
Compatibility function	Flat universal base fits standard platform beds, slatted frames, box springs, and adjustable bed bases
Post-unpacking expansion	Fully expands to rated thickness within 72 hours of unpacking for compressed roll-packed units
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	20 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential master bedroom	Suitable for queen or double size beds in home primary bedrooms for adult sleep use
Hotel guest rooms	Durable medium-firm hybrid construction fits mid-range to premium hotel guest room furnishing
Rental and furnished apartments	Long warranty and universal compatibility make it suitable for furnished residential rental properties
Adjustable bed base setups	Flexible hybrid construction is compatible with electric adjustable bed frames
Platform and slatted bed frames	Rigid base works with all standard platform, slatted, and box spring support systems
Dual-sleeper use	Motion isolation design reduces disturbance between two adult sleep partners

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1957:2012	Applicable European standard for domestic furniture, mattresses and bed bases test methods
EN 597-1:2015	Applicable European standard for mattress ignitability resistance to smouldering cigarettes

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X7.1-2021	Applicable standard for formaldehyde and VOC emissions from furniture and furnishings
ANSI/BIFMA E3-2019	Applicable sustainability standard for mattress products including material and performance requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 26706-2011	Applicable standard for furniture, spring soft mattresses, dimensional and durability requirements
GB 18401-2010	Applicable national safety standard for textile products, formaldehyde and harmful substance limits
GB/T 35607-2017	Applicable standard for green product assessment of furniture, volatile organic compound limits

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 26706-2011: Applicable standard for furniture, spring soft mattresses, dimensional and durability requirements;
2. GB 18401-2010: Applicable national safety standard for textile products, formaldehyde and harmful substance limits;
3. GB/T 35607-2017: Applicable standard for green product assessment of furniture, volatile organic compound limits;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · PM-Q270-P

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · PM-Q270-P

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · PM-Q270-POpen Export Tool

Quick Actions

Post an RFQ

Product Description

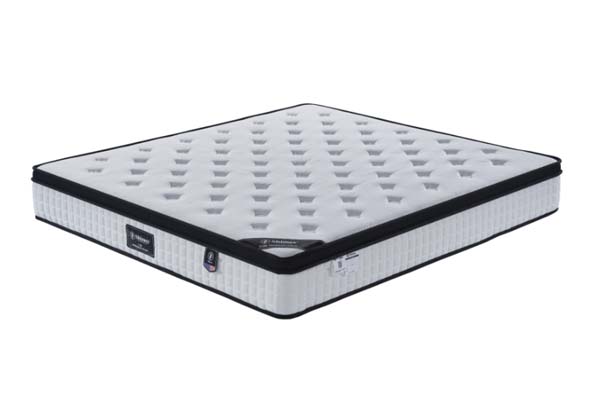

The Quilted Pocket Spring Hybrid Sleep Mattress (model PM-Q270-P, unbranded) is a purpose-built sleep surface designed to balance comfort, support, and long-term durability across residential and commercial settings. Its queen size iteration measures 1830 x 2030 x 270 mm, presenting a clean, structured visual profile anchored by a white quilted knitted polyester top cover marked with 9 width-direction rows and 11 length-direction columns of evenly spaced indentations for a tailored, polished look. Vertical stitched striped woven polyester forms the 240 mm tall side border, finished with 30 mm wide reinforced black woven polyester webbing trim that creates a crisp, defined perimeter between the top surface and base layer.
Construction follows a layered hybrid structure, starting with a 2 mm thick quilted top cover over a 70 mm comfort stack: 35 mm of wave-shaped pressure-relief foam sits above 30 mm of high-density support foam, separated from the 200 mm tall 5-zone individually wrapped pocket coil core by a 200 g/sqm polyester felt pad. The perimeter uses foam encapsulation paired with the reinforced black binding for structured edge support, while the base consists of a 120 g/sqm black non-woven fabric layer. The total net weight of the queen size unit is 46 kg, with a cover fabric abrasion resistance rating of 30000 cycles, medium firmness, high motion isolation, and a 10-year warranty.
Core functional benefits include targeted zoned support aligned to the head, shoulders, lumbar region, hips, and legs, with the contoured wave foam layer distributing body weight to reduce pressure points on common high-tension areas. Individually wrapped coils minimize motion transfer between sleep partners, while the knitted top cover and woven side border promote steady airflow to cut down on heat buildup during sleep. The foam-encapsulated edge prevents sagging or roll-off when users sit or rest near the mattress perimeter, and the flat universal base fits standard platform beds, slatted frames, box springs, and electric adjustable bed bases. Compressed roll-packed units fully expand to their rated 270 mm thickness within 72 hours of unpacking.
This mattress is suited for residential master bedrooms serving adult sleepers, mid-range to premium hotel guest rooms, furnished rental apartments, and setups paired with adjustable bed frames, as well as dual-sleeper arrangements where reduced cross-surface motion transfer is a priority. For procurement teams and individual buyers, note that each set is shipped across 2 cartons, with a total packaged gross weight of 20 kg and total packaging volume of 0.9 m³; assembly and placement take an 40 minutes per set. The maximum static load for a single sleeper is 159 kg, with a total distributed static bed load of 227 kg, so buyers should confirm weight requirements align with intended use cases before purchase.

Quilted Pocket Spring Hybrid Sleep Mattress Specifications
