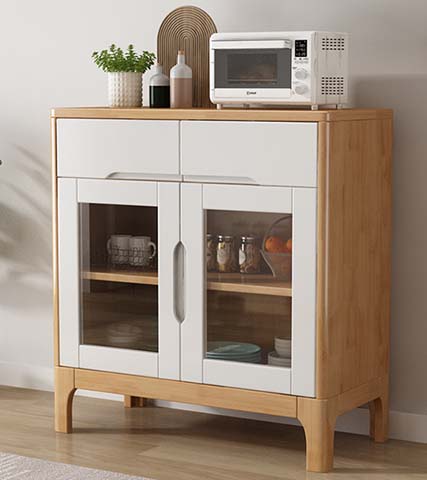

Product supplierTwo-Tone Light Wood and White 2-Drawer 2-Glass-Door Kitchen Storage Sideboard, Solid rubberwood with natural matte wood finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 400 × 900 mm | |
|---|---|---|
| Overall assembled dimensions | 1200 x 400 x 900 mm | |
| Countertop overhang thickness | 25 mm | |
| Upper drawer face height | 180 mm | |
| Upper drawer internal dimensions (per drawer) | 560 x 340 x 130 mm | |
| Lower glass door height per panel | 480 mm | |
| Internal shelf depth | 350 mm | |
| Adjustable shelf height positions per compartment | 4 positions | |
| Leg height from floor to lower cabinet base | 140 mm | |
| Clear glass insert thickness | 5 mm | |
| Central vertical stile width between doors | 80 mm | |
| Drawer slide extension length | 350 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Countertop static load capacity | 100 kg | |
|---|---|---|
| Total cabinet net weight | 35 kg | |
| Door hinge open angle | 110 degrees | |
| Hinge cycle rating | 50000 open/close cycles | |
| Drawer slide cycle rating | 30000 open/close cycles | |
| Recommended number of users | 6person household | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer frame and side panels | Solid rubberwood with natural matte wood finish | |
|---|---|---|
| Leg assembly | Solid rubberwood angled legs with rounded edge detailing, connected by lower stretcher rail | |
| Drawer and door outer panels | 18mm thick E1 grade MDF with matte white paint finish | |
| Lower door glass inserts | 5mm thick clear tempered safety glass | |
| Internal storage shelves | 15mm thick engineered wood with matching light wood veneer finish | |
| Drawer slides | Cold-rolled steel three-section ball-bearing slides | |
| Door hinges | Cold-rolled steel adjustable concealed hinges with optional soft-close | |
| Edge banding | 1mm thick PVC edge banding on all engineered wood cut edges | |
| Integrated door pull | Recessed grooved aluminum alloy pull with matte silver finish | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Upper drawer storage | Two equal-width fully extending drawers for cutlery, napkins and small kitchen accessories | |
|---|---|---|
| Lower cabinet storage | Two glass-door compartments each with 4-position height-adjustable shelves for dishes, glassware and dry goods | |
| Countertop appliance placement | Flat reinforced solid wood top designed for microwave, coffee maker or toaster oven placement | |
| Door operation | Two doors open via single central recessed pull, swinging outward to expose full compartment width | |
| Floor clearance access | 140mm under-cabinet clearance allows robot vacuum cleaning underneath the base | |
| Anti-tip safety | Two included wall anchor straps secure cabinet to wall to prevent tipping when loaded | |
| Display function | Clear glass door panels allow display of decorative tableware while keeping contents dust-free | |
| Leveling adjustment | 4 adjustable foot pads under each leg compensate for uneven floor surfaces | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Dining room buffet server | Positioned along dining room wall to hold serving ware, table linens and display decorative pieces | |
|---|---|---|
| Small apartment pantry storage | Compact 1200mm width fits narrow dining or kitchen spaces in small urban apartments | |
| Entryway console storage | Used in entryways to store keys, mail and entry essentials with decor display on top | |
| Open-plan living divider | Placed behind a sofa in open-plan layouts to provide hidden storage and a decorative surface |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units and worktops safety and performance requirements | |
|---|---|---|
| EN 12150-1:2015 | Tempered soda lime silicate safety glass for door insert specifications | |
| EN 312:2010 | Particleboard and MDF panel performance requirements for cabinet carcase use |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel dimensional stability and finish quality | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture, formaldehyde emission ≤1.5mg/L | |
| GB/T 9286-1998 | Paint film adhesion test for painted door panels, minimum grade 2 adhesion requirement | |
| GB 15763.2-2005 | Safety glazing materials for tempered glass door inserts, mandatory impact resistance requirement |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel dimensional stability and finish quality; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture, formaldehyde emission ≤1.5mg/L; 3. GB/T 9286-1998: Paint film adhesion test for painted door panels, minimum grade 2 adhesion requirement; 4. GB 15763.2-2005: Safety glazing materials for tempered glass door inserts, mandatory impact resistance requirement; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
