Name: Integrated Electric Tea Brewing Coffee Table with White Stone Top and Black Metal Frame
Brand: JUESHANGDA
SKU: AF6XFE

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1300 × 800 × 560 mm
Tabletop thickness	25 mm
Frame metal tube wall thickness	1.5 mm
Lower storage shelf height from floor	200 mm
Lower water bucket compartment clearance	400 x 400 x 400 mm
Side vertical slat spacing	30 mm
Tea boiler recessed zone dimensions	350 x 250 mm
Floor clearance under bottom frame	20 mm
Middle storage shelf depth	400 mm
Frame leg section size	40 x 40 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Tabletop distributed static load	100 kg
Integrated tea boiler heating power	1500 W
Recommended maximum user capacity	4 people
Unit net weight reference	80 kg
Metal frame static load capacity	150 kg
Boiler water boiling time per liter	5 minutes
Frame warranty period	3 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop	White polished natural marble or sintered stone, heat-resistant surface
Frame structure	Black powder-coated square steel tube, rust and scratch resistant finish
Lower storage shelf	Black matte powder-coated steel sheet, welded to frame
Side decorative panels	Vertical black powder-coated steel slats, open ventilated design
Integrated tea boiler base	Black tempered glass heating panel, electric induction heating zone
Included water pump	Food-grade silicone water supply tube, automatic water feed mechanism
Frame weld joints	Full penetration welded joints, ground smooth before powder coating
Surface finish coating thickness	80 um
Included tea kettle	Food-grade 304 stainless steel body, heat-resistant bakelite handle
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Automatic water feeding	Built-in electric pump draws water directly from 18.9L bottled water stored in lower compartment, one-button operation
Integrated tea boiling	Recessed electric heating zone supports boiling water and tea sterilization, independent temperature control
Drainage system	Hidden tabletop drain channel connects to removable waste water tray under tea zone
Open lower storage	Left raised shelf holds books and tea accessories, right open compartment holds water bucket and small waste bin
Scratch-resistant tabletop	Stone tabletop supports direct placement of hot teapots up to 180°C without damage
Ventilated frame design	Vertical slat side panels allow air circulation to prevent moisture buildup around water bucket
Floor protection	Bottom frame fitted with non-slip rubber feet to prevent floor scratching
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room center placement	Suitable for placement in front of sofas in home living rooms for daily tea serving and guest reception
Office reception area use	Suitable for executive office reception areas to serve tea to visiting clients
Hotel lounge placement	Suitable for hotel suite lounges and public tea areas for guest use
Tea room application	Suitable for dedicated home or small commercial tea rooms for kung fu tea brewing
Recommended pairing	Pairs with 4 low backless tea stools for complete tea serving set for 4 users
Surface care note	Stone tabletop requires daily cleaning with soft cloth, avoid abrasive cleaning tools to protect finish

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12521:2015	Domestic furniture strength and durability requirements for tables, applicable for load verification
EN 60335-2-15:2019	Safety requirements for electric heating appliances for liquids, applicable to tea boiler
EN 13722:2004	Furniture surface finish durability test standard, applicable for coating quality

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden and metal furniture, applicable for structural safety verification
GB 4706.1-2005	Safety requirements for household electrical appliances, applicable to integrated electric tea boiler
GB/T 19001-2016	Quality management system standard, applicable for production quality acceptance reference

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden and metal furniture, applicable for structural safety verification;
2. GB 4706.1-2005: Safety requirements for household electrical appliances, applicable to integrated electric tea boiler;
3. GB/T 19001-2016: Quality management system standard, applicable for production quality acceptance reference;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TEA-CT-13080-MBLK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TEA-CT-13080-MBLK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TEA-CT-13080-MBLKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

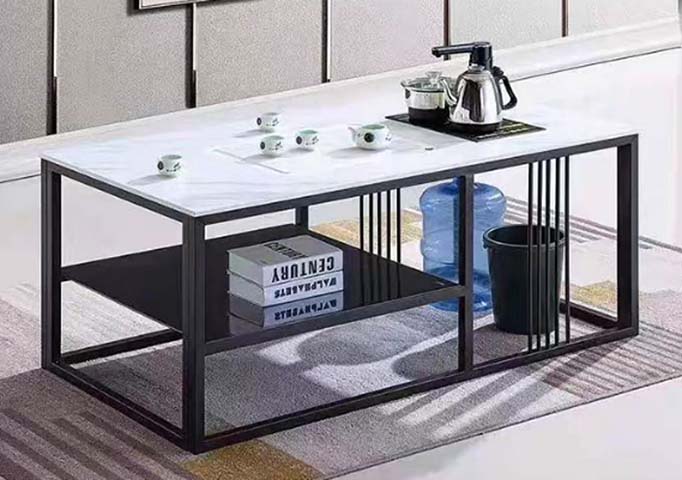

The JUESHANGDA Integrated Electric Tea Brewing Coffee Table (model TEA-CT-13080-MBLK) fuses modern and industrial design sensibilities for seamless beverage service in casual and semi-formal settings. Its balanced silhouette pairs a smooth white polished sintered stone or natural marble tabletop with a rigid black powder-coated square steel tube frame, accented by vertical black steel slats along the sides with evenly spaced gaps that form an open, ventilated visual profile. The recessed tea heating zone sits flush with the tabletop, while the lower level splits into a raised open shelf and dedicated side compartment, creating a clean, uncluttered layout without protruding hardware or disjointed components. Constructed for long-term durability, the table features full penetration welds ground smooth before coating, with an 80 um powder coat finish that resists rust and scratching across the frame, lower steel storage shelf, and side slats. The 25 mm thick stone tabletop offers heat resistance up to 180°C, supporting direct placement of hot teapots without surface damage, while non-slip rubber feet on the frame base prevent floor scuffing. The integrated tea brewing system uses a black tempered glass induction heating panel with 1500W power, boiling one liter of water in 5 minutes, paired with a food-grade 304 stainless steel tea kettle with a heat-resistant bakelite handle, a food-grade silicone tube automatic water feed pump, and a hidden tabletop drain leading to a removable waste water tray under the service zone. A one-button control activates the pump to draw water from an 18.9L bottled water stored in the lower compartment, which also fits a small waste bin, while the adjacent raised shelf holds books and tea accessories. Open slat side panels promote air circulation to prevent moisture buildup around stored water supplies. With a maximum capacity for 4 users, the table suits placement as a central living room piece in front of sofas for daily use and guest reception, in executive office reception areas for client service, in hotel suite lounges and public tea spaces, and in dedicated home or small commercial tea rooms for kung fu tea preparation; it pairs optimally with 4 low backless tea stools for a coordinated serving set. Procurement teams should note the unit ships in 2 cartons with a 40-minute assembly time per set, carries a 3-year warranty for the frame, requires daily cleaning of the stone surface with a soft cloth and non-abrasive products to preserve the finish, and supports 100 kg distributed static load on the tabletop and 150 kg static load on the metal frame for regular use.

Integrated Electric Tea Brewing Coffee Table with White Stone Top and Black Metal Frame Specifications
