PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1300 × 700 × 500 mm
Tabletop thickness	50 mm
Lower storage shelf thickness	18 mm
Lower shelf vertical clearance from floor	220 mm
Vertical clearance between tabletop and lower shelf	230 mm
Tabletop edge overhang past leg frame	30 mm
Control button panel length	120 mm
Floor contact pad diameter per leg	20 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Tabletop static load capacity	136 kg
Heating system maximum power	2500 W
Product net weight	34 kg
Heating temperature adjustment levels	9
Surface scratch resistance rating	Grade 2
Auto shutoff safety timer	2 hours
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop substrate	Solid wood core with natural wood veneer
Structural legs	Solid square hardwood block legs
Lower storage shelf	Solid wood veneered engineered wood panel
Surface finish	Heat-resistant matte polyurethane lacquer
Heating element enclosure	High-temperature resistant aluminum alloy liner
Floor protection pads	Non-slip rubber pads fitted to each leg base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated far-infrared heating	Multi-zone under-table heating controlled via edge buttons
Fixed height structure	Non-lift, non-folding rigid four-leg frame
Open lower storage shelf	Full-width flat shelf for storing magazines, remote controls
Edge-mounted button controls	Right-side top edge control panel for power and temperature

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room center table	Placed in front of sofas for serving drinks, decor and ambient heating
Office reception area low table	Positioned between guest seating in reception lounges for refreshments

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12521:2015	Furniture - Strength, durability and safety for domestic tables, applicable to living room coffee tables
EN 60335-1:2012	Safety standard for household electrical appliances, applicable to integrated heating elements
EN 60335-2-30:2009	Particular requirements for room heaters, applicable to under-table heating systems

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to solid wood living room tables
GB 4706.1-2005	Safety standard for household electrical appliances, applicable to integrated heating components
GB 4706.29-2008	Particular safety requirements for portable electric heating appliances, applicable to heated table systems

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to solid wood living room tables;
2. GB 4706.1-2005: Safety standard for household electrical appliances, applicable to integrated heating components;
3. GB 4706.29-2008: Particular safety requirements for portable electric heating appliances, applicable to heated table systems;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CT-WD-1300-RB-HEAT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CT-WD-1300-RB-HEAT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CT-WD-1300-RB-HEATOpen Export Tool

Quick Actions

Post an RFQ

Product Description

A full-width open lower shelf sits between the leg assembly, creating balanced visual weight that anchors seating arrangements without appearing bulky, finished in a warm red-brown tone that complements both classic and contemporary interior palettes.
Constructed for reliable long-term use, the table features a solid wood frame paired with a tabletop built from a solid wood core overlaid with natural wood veneer, coated in a heat-resistant matte polyurethane lacquer that carries a Grade 2 scratch resistance rating. The lower storage shelf uses a solid wood veneered engineered wood panel, while the integrated heating element is housed in a high-temperature resistant aluminum alloy liner for safe operation. Each leg base is fitted with non-slip rubber floor protection pads to prevent surface scuffing and reduce movement during regular use.
Functional design prioritizes everyday utility and comfort: the fixed-height rigid frame holds the table at a stable working height, with a 136 kg static load capacity for the tabletop and 30 kg distributed load capacity for the lower shelf. The open lower shelf provides easily accessible space for magazines, remote controls, and small everyday items. An integrated multi-zone far-infrared under-table heating system is operated via a 120 mm edge-mounted button panel on the right top edge, offering 9 temperature adjustment levels, 2500W maximum power, and a 2-hour auto shutoff safety timer for peace of mind.
This piece is suitable for use as a central living room table placed in front of sofas to hold drinks, decorative items, and provide gentle ambient heating, as well as a low table in office reception areas positioned between guest seating to serve refreshments. For procurement planning, note that each set ships across cartons with a total packaged gross weight of 100 kg, total packaging volume of 0.65 m³, and requires 40 minutes of on-site assembly. The fixed non-folding, non-lift structure requires sufficient clearance for delivery access to installation sites.

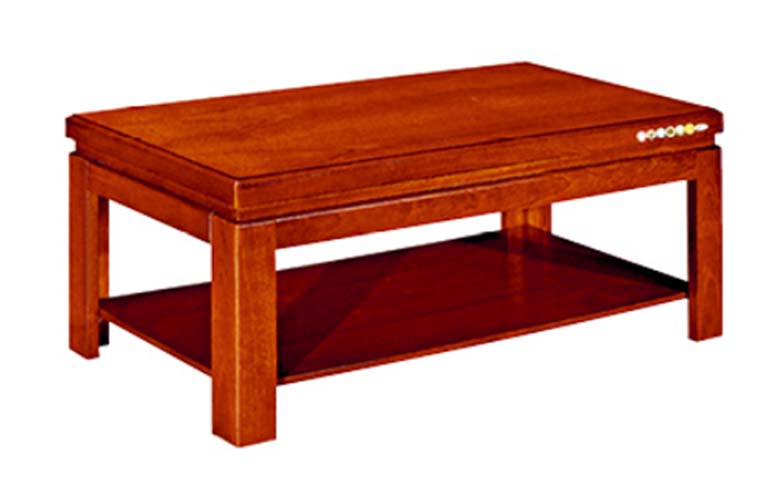

Red-Brown Solid Wood Heated Rectangular Coffee Table with Open Lower Storage Shelf
