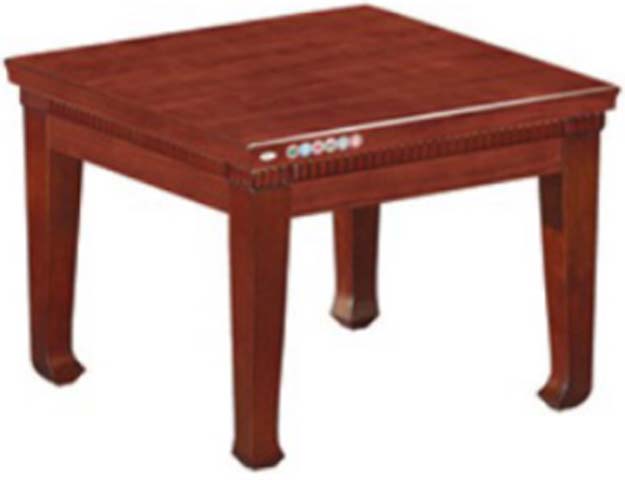

Red Brown Solid Wood Automatic Mahjong Dining Table (model AMT-SQ1040-RW) is listed under Traditional Coffee Table, with overall dimensions of 1040 × 1040 × 810 mm, a net weight of 141 kg and main material of MDF. Load capacity: 150 kg. Certifications: Traditional,Chinese,style,fixed,four-leg,structure,dining-convertible,automatic,gaming,table. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1040 x 1040 x 810 mm | |
|---|---|---|
| Seated knee clearance under apron | 660 mm | |
| Leg section size | 80 x 80 mm | |
| Apron height | 120 mm | |
| Control strip length | 300 mm | |
| Foot base footprint per leg | 60 x 60 mm | |
| Tabletop edge thickness | 50 mm | |
| Internal mechanism core thickness | 135 mm | |
| Compatible tile size | 48 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static tabletop load capacity | 150 kg | |
|---|---|---|
| Shuffle and tile lift cycle time | 3 seconds | |
| Operating noise level | 65 dB | |
| Included tile sets | 2 sets | |
| Tiles per set | 144 pieces | |
| Warranty period for core mechanism | 12 months | |
| Power cord length | 1.5 m | |
| Mechanical shuffle cycle rating | 30000 cycles | |
| Seating capacity per side | 1 person | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer frame and legs | Solid red-brown hardwood with stained lacquer finish | |
|---|---|---|
| Tabletop surface | Smooth laminated solid wood wear-resistant top | |
| Internal mechanism frame | High-carbon steel with anti-rust spray coating | |
| Control panel buttons | ABS plastic with colored function indicators | |
| Support feet pads | Non-slip rubber pads to protect flooring | |
| Carved apron trim | Solid wood dentil molded edge detail |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Automatic tile shuffling | Dual-motor low-noise system shuffles and stacks tiles automatically at button press | |
|---|---|---|
| One-touch dice control | Integrated LED electronic dice roller activated via edge control strip | |
| Dining table conversion | Flat closed tabletop functions as a standard square dining surface for daily use | |
| Tile storage compartment | Internal enclosed compartment stores 2 full tile sets when not in use |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Home game room | Suitable for 4-player mahjong play in private residential recreation spaces | |
|---|---|---|
| Dining area | Functions as a formal square dining table for daily meals when not used for gaming |
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture – Strength, durability and safety for domestic dining tables, applicable for dining use load | |
|---|---|---|
| EN 16121:2013 | Safety requirements for non-domestic storage furniture, applicable if used in public game rooms |
Standards applicable to China-market projects
| GB 28007-2011 | Applies to safety requirements for children's furniture, non-applicable for this adult gaming table | |
|---|---|---|
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to solid wood frame quality | |
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing |
This product must meet the following technical requirements: 1. GB 28007-2011: Applies to safety requirements for children's furniture, non-applicable for this adult gaming table; 2. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to solid wood frame quality; 3. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
