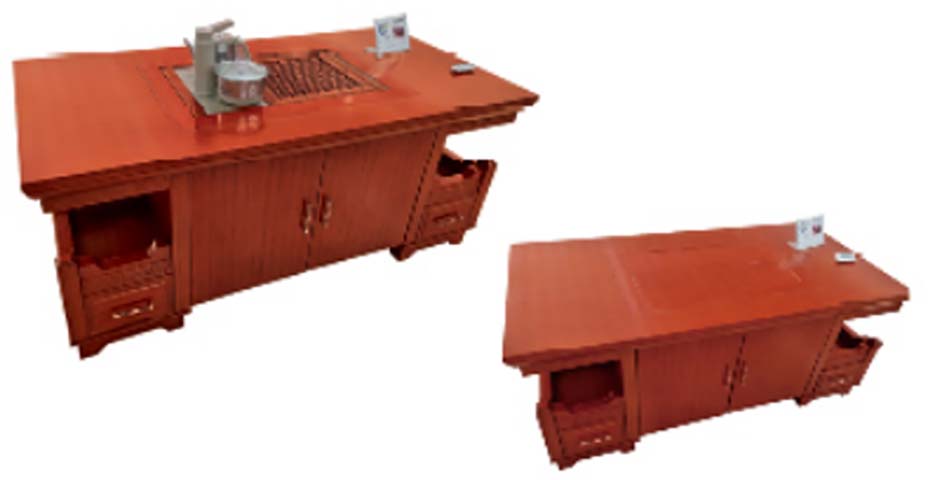

Red Lacquer Integrated Kung Fu Tea Brewing Table with Storage Cabinets and Drawers (model KT-RED-1800) is listed under Traditional Coffee Table, with overall dimensions of 1800 × 800 × 750 mm and main material of MDF. Load capacity: 150 kg. Certifications: Chinese,traditional,style,cabinet,base,integrated,tea,brewing,function,seated,use,design. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W*D*H) | 1800 x 800 x 750 mm | |
|---|---|---|
| Tabletop thickness | 45 mm | |
| Seated knee clearance width | 550 mm | |
| Seated knee clearance height | 600 mm | |
| Central double-door cabinet internal dimensions | 600 x 450 x 500 mm | |
| End drawer internal dimensions (per drawer) | 350 x 350 x 150 mm | |
| Recessed tea drain tray dimensions | 600 x 400 mm | |
| Perimeter raised edge height | 15 mm | |
| Base foot height | 60 mm | |
| Open side shelf dimensions (above left drawer) | 350 x 300 x 200 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static load capacity | 150 kg | |
|---|---|---|
| Surface water stain resistance | Grade 1 | |
| Indicative net weight | 120 kg | |
| Recommended seating capacity | 6 users | |
| Surface abrasion resistance | 2000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop and cabinet body | Solid hardwood with red lacquer water-based finish | |
|---|---|---|
| Tea drain tray | Slotted solid wood or composite stone insert | |
| Water boiler unit | Stainless steel heating element with plastic pump housing | |
| Hardware (handles, slides, hinges) | Brass-finish zinc alloy | |
| Support feet | Solid wood shaped feet | |
| Drain pipe fitting | Food-grade flexible plastic |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated tea drainage system | Recessed slotted tray drains waste water via hidden pipe to under-cabinet bucket | |
|---|---|---|
| Auto water boiler system | Built-in electric pump draws water for boiling with push-button control | |
| Storage configuration | Central double-door cabinet, two end drawers per side, open side shelf | |
| Cable management | Hidden channel for boiler power cord routed to rear table edge |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Packaging carton dimensions | 1900 x 900 x 900 mm | |
|---|---|---|
| Gross packaged weight | 140 kg | |
| On-site assembly time | 30 minutes | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office reception area | Formal tea service for business guest reception, with integrated storage for supplies | |
|---|---|---|
| Private tea room | Dedicated space for traditional kung fu tea brewing for small group gatherings |
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture - Strength, durability and safety for domestic tables, applicable to structural load testing | |
|---|---|---|
| EN 13722:2004 | Furniture - Test methods for surface resistance to cold liquids, applicable to lacquer spill resistance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural performance and finish quality | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to formaldehyde and heavy metal content verification | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable if engineered wood components are used in cabinet construction |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural performance and finish quality; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde and heavy metal content verification; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable if engineered wood components are used in cabinet construction; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
