PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 800 × 560 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top surface static distributed load	120 kg
Lower shelf static load capacity	40 kg
Paint film hardness	3H
Paint film abrasion resistance	2000 cycles
Net product weight	35 kg
Standard commercial warranty	2 years
Available color options	3
Lower shelf load surface height from floor	280 mm
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Top surface finish	0.6mm AAA grade red-brown wood veneer
Core substrate	E1 grade medium density fiberboard
Coating system	PE primer with PU topcoat, five base three top coats
Support panels	Engineered wood with matching veneer wrap
Lower shelf panel	Veneer-faced engineered wood with matching edge banding
Assembly hardware	Zinc-plated steel confirmat screws

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Full-width lower open shelf
Edge safety design	Continuous rounded bullnose edge molding
Surface performance	Stain-resistant high-gloss closed finish
Base stability	Wide stepped plinth feet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office lounge placement	Positioned in front of office sofas for guest tea service and document placement
Reception area use	Suited for company front waiting areas to hold reading materials and refreshments

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 15372:2008	Strength and durability requirements for non-domestic furniture, applicable for commercial office use
EN 12521:2015	Safety, strength and durability requirements for tables, for structural load verification

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to dimensional and structural acceptance
GB 18580-2017	Formaldehyde emission limits for wood-based panels, E1 grade ≤0.124mg/m³ required for panel substrate
GB/T 4893.1-2005	Surface film abrasion resistance test method, required for finish durability verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural acceptance;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade ≤0.124mg/m³ required for panel substrate;
3. GB/T 4893.1-2005: Surface film abrasion resistance test method, required for finish durability verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-1680-RB-DT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-1680-RB-DT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-1680-RB-DTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

Its visual design leans into classic traditional aesthetics, with a rich red-brown wood grain finish rendered in a high-gloss sheen, paired with a wide stepped plinth base that delivers a grounded, substantial silhouette. The double-tier open layout keeps sightlines clean while adding functional display and storage space, with continuous rounded bullnose edge molding lending a polished, soft profile that eliminates sharp corners. Construction centers on durable, commercial-grade materials: a core of E1-grade medium density fiberboard is clad in 0.6mm AAA grade red-brown wood veneer across the top, support panels, and lower shelf, with matching veneer edge banding for a seamless look. The coating system uses five layers of PE primer and three layers of PU topcoat to create a stain-resistant closed finish, with 3H paint film hardness rated to withstand 2000 abrasion cycles. Solid wood panel supports join to a hidden 80mm metal support section with 2mm wall thickness, secured with zinc-plated steel confirmat screws for structural integrity. The table measures 1600 x 800 x 560 mm overall, with a 45mm thick finished top, and holds 120kg of static distributed load on the top surface and 40kg on the full-width lower open shelf. An 80mm diameter cable opening with a 120mm deep integrated cable tray keeps cord management tidy for small devices, while the wide plinth feet ensure steady, wobble-free placement. This table is ideally positioned in executive office lounges, placed directly in front of office sofas to support guest tea service and temporary document placement. It also suits corporate front reception waiting areas, where its lower shelf can hold reading materials and the top surface accommodates refreshments for visiting guests. It offers 680mm of knee clearance height and 900mm of clearance width per main seat to support comfortable seated use. It is available in 3 color options, backed by a 2-year standard commercial warranty. Procurement teams should note that each unit ships in 2 cartons with a total packaged gross weight of 90kg, requires 40 minutes of on-site assembly per set, and offers 3 total color options to match existing office decor schemes.

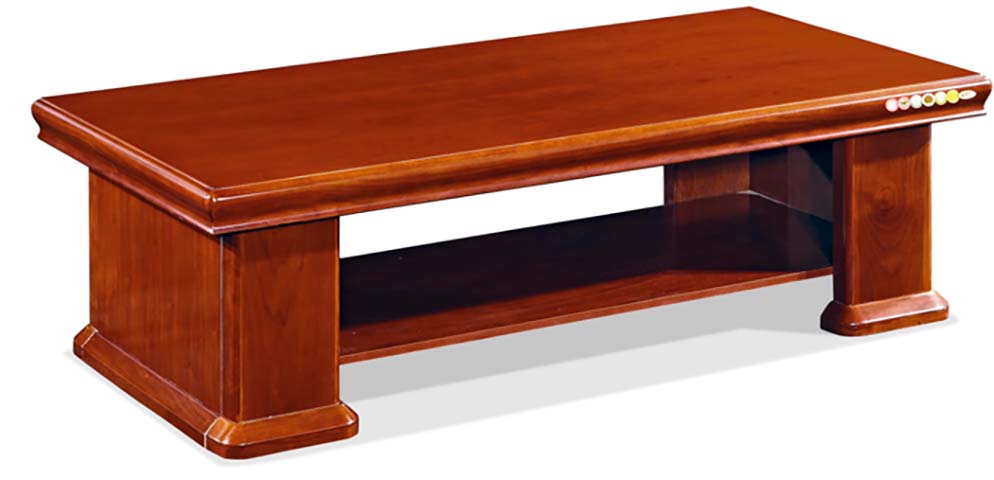

Traditional Red-Brown Wood Veneer Double-Tier Office Coffee Table
