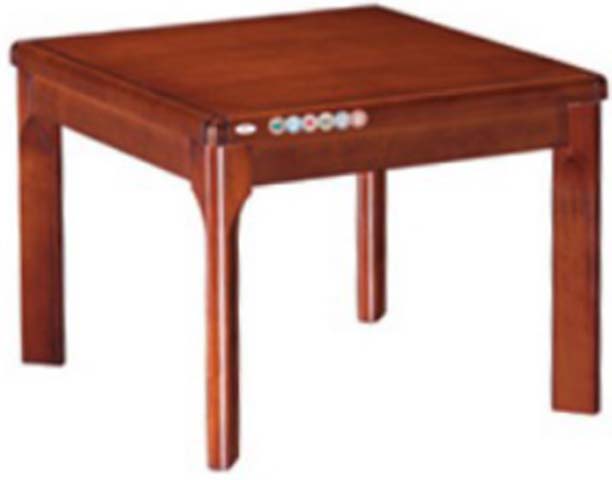

Four-Seat Solid Wood Convertible Automatic Mahjong Dining Table (model AMT-WD-4S-1000) is listed under Traditional Coffee Table, with overall dimensions of 1000 × 1000 × 800 mm and main material of MDF. Load capacity: 100 kg. Certifications: New,Chinese,style,four-seat,layout,dining-convertible,structure,apron-mounted,control,panel. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall table dimensions | 1000 x 1000 x 800 mm | |
|---|---|---|
| Net square playfield size | 880 x 880 mm | |
| Tabletop perimeter lip height | 15 mm | |
| Leg cross-section dimension | 80 x 80 mm | |
| Under-table leg clearance height | 680 mm | |
| Apron control panel length | 320 mm | |
| Apron height from floor to apron bottom | 680 mm | |
| Leg vertical height from floor to apron | 650 mm | |
| Cover panel thickness (dining use) | 20 mm | |
| Corner transition radius at leg joint | 30 mm | |
| Control button diameter | 18 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Assembled product weight | 150 kg | |
|---|---|---|
| Static tabletop load capacity (dining use) | 100 kg | |
| Seating capacity | 4 players | |
| Tile push/deal cycle time | 3 seconds | |
| Operating noise level | 42 dB | |
| Mechanism jam-free operating cycles | 120000 cycles | |
| Compatible mahjong tile size | 48 mm | |
| Rated operating power | 320 W | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer frame and legs | Solid rubber wood with walnut-brown matte finish | |
|---|---|---|
| Internal mechanism chassis | Powder-coated steel frame with copper-wound motors | |
| Tabletop play surface | Wear-resistant flocked fabric over rigid composite base | |
| Control panel buttons | ABS plastic with labeled color-coded tops | |
| Dining conversion cover | Solid wood veneer over E0-grade MDF core | |
| Corner and edge trim | Solid wood edge banding matching frame finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Automatic operation | One-button control for shuffle, deal, and dice roll via apron panel | |
|---|---|---|
| Dual-use functionality | Removable dining cover converts table to standard dining surface | |
| Tile dehumidification | Built-in low-heat dehumidifier to prevent tile warping | |
| Four-port tile dealing | Simultaneous tile push to four player positions |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Home game room | Four-person casual mahjong play with family and friends | |
|---|---|---|
| Combined dining area | Convertible use as a formal dining table when not playing mahjong |
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Safety, strength and durability for domestic dining tables, applicable to dual-use function | |
|---|---|---|
| EN 60335-1:2012 | Safety for household electrical appliances, applicable to electric shuffle mechanism |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to solid wood frame | |
|---|---|---|
| GB 4706.1-2005 | Safety requirements for household electrical appliances, applicable to electric mechanism |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to solid wood frame; 2. GB 4706.1-2005: Safety requirements for household electrical appliances, applicable to electric mechanism; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
