PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 760 × 760 mm
Desktop thickness	25 mm
Edge band thickness	2 mm
Left storage pedestal dimensions	420 x 550 x 630 mm
Right storage pedestal dimensions	420 x 550 x 630 mm
Central knee clearance width	760 mm
Central knee clearance height	620 mm
Central knee clearance depth	480 mm
Cable grommet diameter	60 mm
Individual drawer front dimensions	340 x 150 mm
Right cabinet interior dimensions	380 x 500 x 580 mm
Drawer pull length	120 mm
Pedestal panel thickness	18 mm
Desktop overhang	30 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	100 kg
Drawer slide cycle rating	50000 cycles
Net product weight	120 kg
Recommended user weight capacity	150 kg
Finish abrasion resistance	2000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	18mm MDF core with 0.6mm red wood veneer, high-gloss polyurethane topcoat
Edge banding	2mm thick impact-resistant PVC, matched red wood grain finish
Pedestal panels	16mm particleboard substrate with matching red wood grain melamine laminate
Hardware pulls and locks	Polished chrome plated zinc alloy, drawer lock on top left drawer
Drawer slides	Cold-rolled steel full-extension ball-bearing slides
Leveling glides	Nylon base with steel threaded stem, adjustable height 10mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Three stacked left drawers plus right side CPU storage compartment with door
Cable management	One round desktop cable grommet for routing monitor and device power cords
Drawer locking	Integrated key lock secures all three left pedestal drawers for document security
Floor leveling	Adjustable base glides compensate for uneven floor surfaces to stabilize the desk

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Fits senior management private offices with formal traditional aesthetic
Traditional style government or corporate workspace	Matches formal solid wood style interiors for institutional office environments

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements for commercial workspace furniture
EN 13722:2004	Furniture strength and durability requirements for storage units integrated into desks

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for structural performance, durability and safety testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk structural safety and finish quality
GB/T 4897.3-2003	Particleboard for furniture use, applicable to pedestal panel substrate performance requirements
GB 18584-2001	Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk structural safety and finish quality;
2. GB/T 4897.3-2003: Particleboard for furniture use, applicable to pedestal panel substrate performance requirements;
3. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-RV-1600-DP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-RV-1600-DP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-RV-1600-DPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The 1600 mm wide, 760 mm deep desktop sits at 760 mm height, with matching full-height storage pedestals positioned on both left and right sides to frame a central knee clearance zone that accommodates standard executive seating. A polished chrome hardware palette complements the glossy red finish, with color-matched edge banding creating a seamless, refined visual profile suitable for high-profile workspaces. The desk is constructed with durable layered materials tailored for regular office use. The desktop features an 18mm MDF core surfaced with 0.6mm red wood veneer, sealed under a high-gloss polyurethane topcoat, with a total desktop thickness of 25 mm finished with 2mm impact-resistant, red wood grain matched PVC edge banding. Pedestal panels use 16mm particleboard substrate covered in matching red wood grain melamine laminate. Hardware includes polished chrome-plated zinc alloy pulls and a lock on the top left drawer, cold-rolled steel full-extension ball-bearing drawer slides, and nylon leveling glides with steel threaded stems for stability. The desktop supports a 100 kg static load, with a 150 kg uniformly distributed top load reference, while each drawer slide pair holds 45 kg and is rated for 50000 open-close cycles, and the finish resists abrasion across 2000 cycles. Built-in functional features support organized executive workflow: the left pedestal houses three stacked drawers secured by an integrated key lock for confidential document storage, while the right pedestal includes an enclosed CPU compartment with a door. A single round desktop cable grommet routes monitor and device cords to reduce visual clutter, and adjustable base glides compensate for uneven floors to keep the work surface stable. This desk is designed for private senior management offices, as well as traditional style government and corporate workspaces with formal, classic solid wood-aligned interiors. Procurement teams should note the desk ships across cartons per set, requires 40 minutes of assembly per unit, has a net weight of 120 kg and packaged gross weight of 180 kg, and supports a maximum recommended user weight of 150 kg.

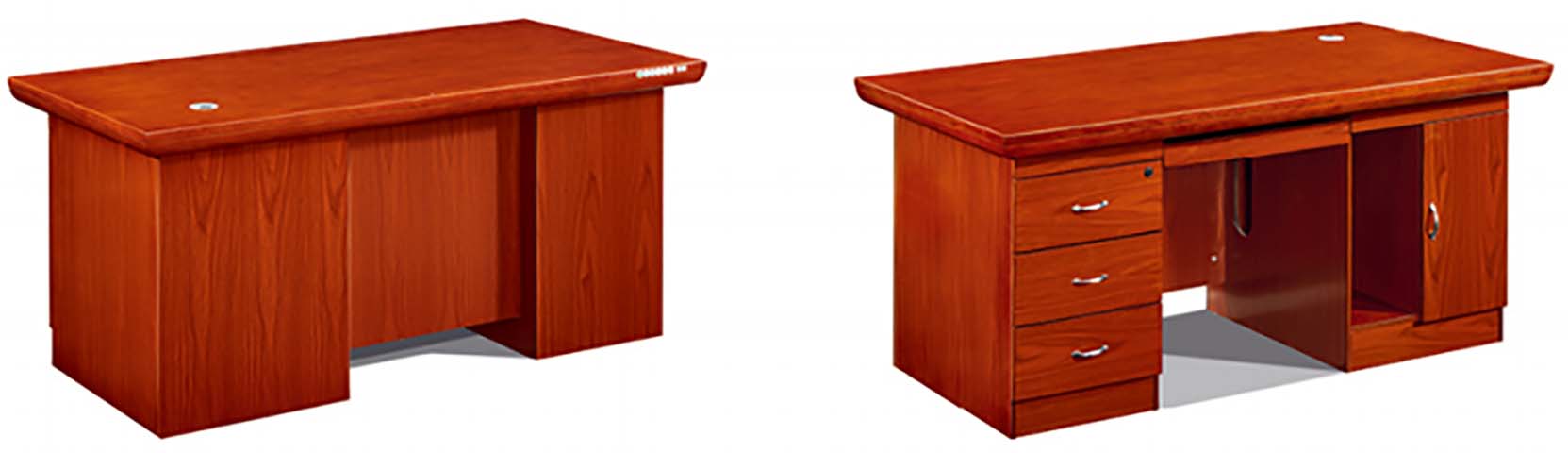

Double Pedestal Glossy Red Wood Veneer Executive Office Desk
