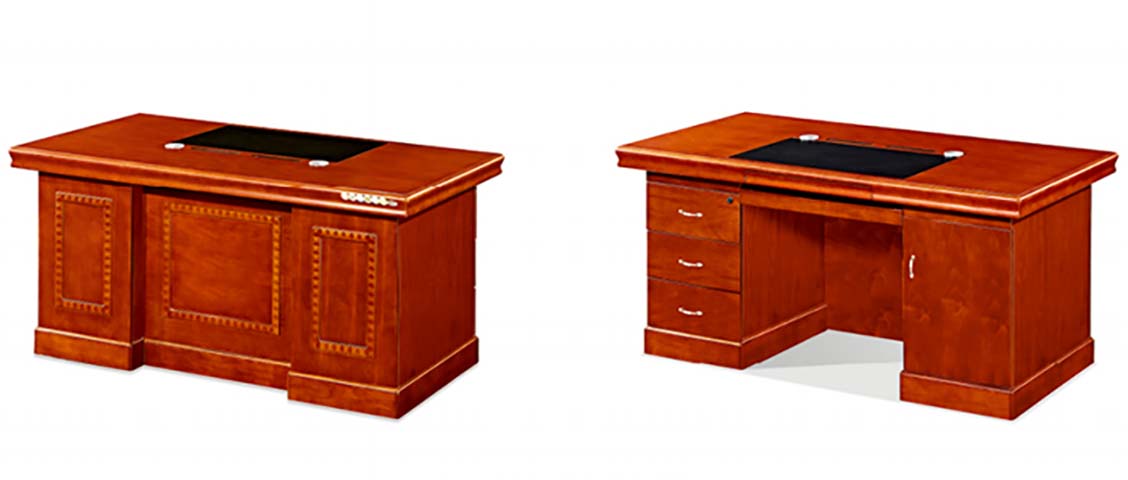

Product supplierTraditional Red-Brown Veneer Double-Pedestal Executive Office Desk, 18mm MDF/hardwood composite core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1943 × 914 × 762 mm | |
|---|---|---|
| Overall desk dimensions | 1943 x 914 x 762 mm | |
| Desktop thickness | 38 mm | |
| Inset writing panel size | 900 x 400 mm | |
| Cable grommet diameter | 60 mm | |
| Seated knee clearance height | 610 mm | |
| Seated knee clearance width | 686 mm | |
| Left pedestal width | 650 mm | |
| Right cabinet pedestal width | 600 mm | |
| Drawer front height | 140 mm | |
| Plinth base height | 100 mm | |
| Edge band thickness | 2 mm | |
| Desktop overhang | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 136 kg | |
|---|---|---|
| Desk net weight | 177 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Locking drawer count | 4 | |
| Finish abrasion resistance | 2000 cycles | |
| Leveler adjustment range | 12 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | 18mm MDF/hardwood composite core | |
|---|---|---|
| Desktop finish | Cherry-toned wood veneer with high-gloss polyurethane coating | |
| Inset writing surface | Black leather-look laminate writing pad | |
| Drawer hardware | Polished chrome-plated steel pull handles | |
| Drawer slides | Cold-rolled steel full-extension ball-bearing slides | |
| Frame and plinth | Solid wood framing with veneered MDF paneling |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Two 60mm desktop grommets route power/data cables | |
|---|---|---|
| Drawer locking system | Integrated cylinder lock secures left pedestal drawers | |
| Storage configuration | Three utility drawers, one right-side storage cabinet, central knee well | |
| Floor leveling | Adjustable glides under plinth base correct for uneven floors |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Formal traditional aesthetic for senior management private workspaces | |
|---|---|---|
| Corporate boardroom adjunct | Provides auxiliary workspace adjacent to formal meeting rooms |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements for commercial use | |
|---|---|---|
| EN 527-2:2016 | Office work tables, safety, strength and durability test methods | |
| EN 13722:2004 | Furniture, strength and durability of storage units for office use |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for strength and operational durability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural integrityAcceptance | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for substrate material performance | |
| GB 18584-2001 | Indoor decoration material formaldehyde emission limit for wooden furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural integrityAcceptance; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for substrate material performance; 3. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
