Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall product dimensions | 1400 x 700 x 760 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop evenly distributed static load capacity | 136 kg | |
|---|---|---|
| Metal drawer slide operation cycle rating | 10000 cycles | |
| Product net weight | 75 kg | |
| Surface scratch resistance rating | 2H pencil hardness | |
| Warranty period for structural parts | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | MDF engineered wood core | |
|---|---|---|
| Desktop surface finish | Red-brown wood veneer with PU paint coating | |
| Structural panel substrate | Particleboard core for cabinet panels | |
| Hardware: drawer pulls | Zinc alloy with brushed nickel finish | |
| Hardware: drawer slides | Full-extension cold-rolled steel ball-bearing slides | |
| Hardware: locks | Brass keyed cylinder locks with paired keys |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Two recessed circular desktop grommets for monitor/peripheral wiring | |
|---|---|---|

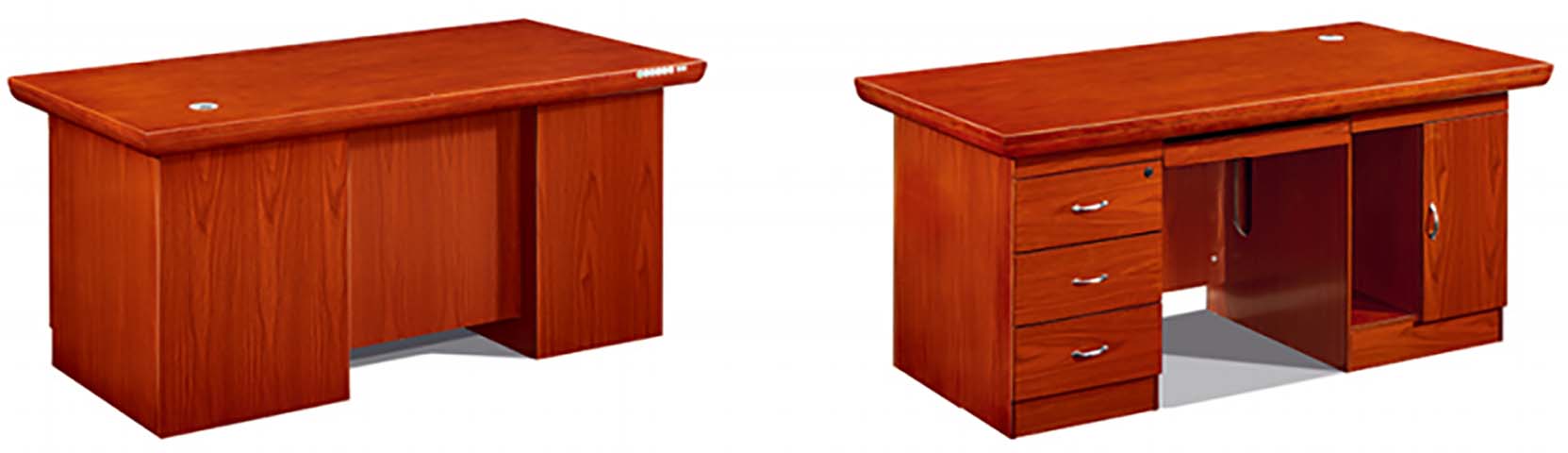

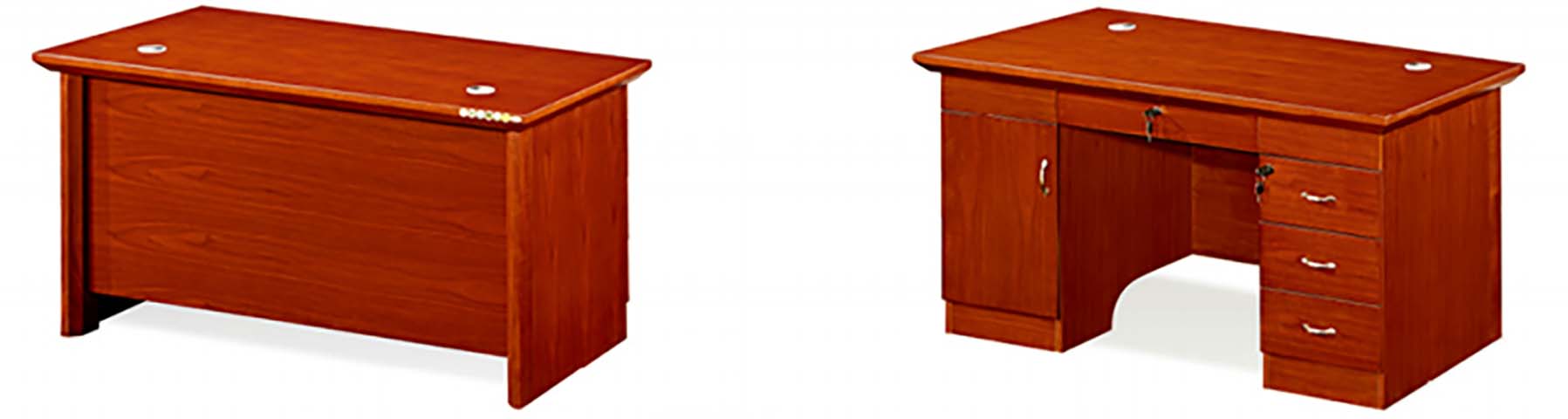

| Storage configuration | Left hinged door cabinet, central lockable pencil drawer, three right lockable drawers | |
| Leveling adjustment | Threaded adjustable feet at base corners to compensate for uneven floors | |
| Locking mechanism | Keyed locks secure top pencil drawer and bottom file drawer for document security |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private individual office use | Single-user seated workstation for managers or administrative staff | |
|---|---|---|
| Standard office workstation layout | Fits cubicle or private office with standard task chair placement |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements for commercial use | |
|---|---|---|
| EN 13722:2004 | Furniture, assessment of surface resistance to abrasion for work surfaces | |
| EN 12521:2015 | Furniture, strength, durability and safety for seating-adjacent work tables |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products, standard for performance and structural durability testing | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for low-emission office furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural performance | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for cabinet panel substrate | |
| GB 18584-2001 | Formaldehyde emission limit for interior wooden furniture, mandatory compliance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural performance; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for cabinet panel substrate; 3. GB 18584-2001: Formaldehyde emission limit for interior wooden furniture, mandatory compliance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
