PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1680 × 800 × 760 mm
Desktop thickness	80 mm
Edge band thickness	2 mm
Knee clearance width	620 mm
Knee clearance height	620 mm
Knee clearance depth	480 mm
Cable grommet diameter	60 mm
Left cabinet internal width	420 mm
Right drawer stack height	600 mm
Single drawer internal dimensions	380 x 450 x 150 mm
Keyboard tray travel	350 mm
Toe kick height	100 mm
Pedestal side panel thickness	25 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	80 kg
Drawer slide open/close cycle rating	50000 cycles
Cabinet hinge open/close cycle rating	80000 cycles
Surface abrasion resistance	2000 cycles
Product net weight	95 kg
Recommended maximum user weight for seating clearance	136 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	E0-grade high-density fiberboard
Desktop surface	0.6 mm red walnut wood veneer with PU lacquer finish
Edge trim	Solid wood molding with rounded profile
Hardware components	Zinc alloy drawer pulls, steel ball-bearing slides, steel concealed hinges
Cable grommet	ABS plastic round wire management port
Pedestal panels	18 mm thick melamine-backed particleboard core with veneer overlay

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Pull-out keyboard tray	Center-mounted three-section slide tray extends forward for keyboard placement
Cable management	Single desktop grommet routes monitor and peripheral wires to under-desk space
Storage configuration	Left hinged door cabinet for CPU/large items, right three stacked drawers for supplies
Locking provision	Pre-drilled mounting point for central drawer lock on right pedestal

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suitable for manager/supervisor individual workspaces with formal traditional aesthetic
Leadership meeting side work area	Supports document review and small in-office meeting discussions

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables - Part 1: Dimensions, applicable to desk ergonomic clearance requirements
EN 527-2:2002+A1:2003	Office work tables - Part 2: Mechanical safety requirements and test methods
EN 13722:2004	Furniture - Office storage furniture - Strength and durability requirements for cabinets and drawers

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products - Standard for safety, durability, and structural performance of office desks
ANSI/BIFMA X5.9-2019	Storage Units - Standard for office storage cabinet and drawer performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk structural performance
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture
GB/T 10357.1-2013	Furniture mechanical performance test for tables: static load and stability verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk structural performance;
2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture;
3. GB/T 10357.1-2013: Furniture mechanical performance test for tables: static load and stability verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EXD-VNR-1680-PED-KT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EXD-VNR-1680-PED-KT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EXD-VNR-1680-PED-KTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

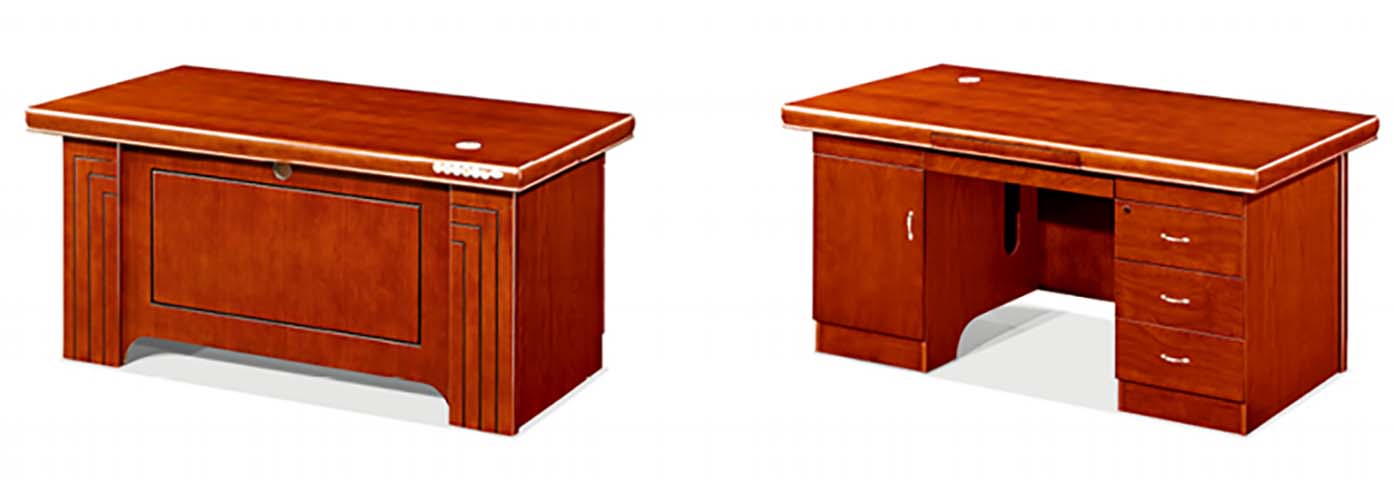

This traditional Chinese-style executive office desk features a stately double-pedestal fixed structure, defined by its rich red walnut-toned wood aesthetic that anchors formal workspace design. Its silhouette balances classic visual weight with functional proportions, presenting a thick, solid-appearing desktop finished with rounded solid wood edge molding that softens the desk’s substantial profile for a refined, intentional look. The two supporting pedestals sit evenly beneath the desktop to frame a generous knee clearance zone, creating a balanced, symmetrical layout aligned with classic formal office design sensibilities. The desk’s desktop is constructed from an E0-grade high-density fiberboard substrate, overlaid with a red walnut wood veneer finished with smooth PU lacquer. Pedestal panels use a particleboard core with matching veneer overlay and a durable melamine backing, fitted with zinc alloy drawer pulls, steel ball-bearing drawer slides, and steel concealed hinges. An ABS plastic round cable grommet sits flush with the desktop surface, while all structural connections use robust metal hardware for long-term regular use. Core practical features support focused executive work: a center-mounted pull-out keyboard tray on three-section slides extends forward to hold input devices, keeping the main desktop clear for documents and meeting materials. The integrated cable grommet routes monitor and peripheral cords cleanly to the under-desk space to reduce surface clutter. Storage is split between a left hinged-door cabinet sized to hold CPUs or large work items, and three stacked right-side drawers for office supplies, with a pre-drilled mounting point to add a central drawer lock for secure storage of sensitive materials. This desk is well suited for private executive offices for managers or supervisors seeking a formal traditional aesthetic, as well as side work areas in leadership meeting spaces to support document review and small in-office discussions. For procurement planning, note that the desk ships in separate cartons, requires on-site assembly, and has a substantial packaged weight that will influence delivery coordination and placement planning. Teams should also account for needed lock hardware separately, as the central drawer lock is not included with the base unit.

Chinese-style Veneer Pedestal Executive Office Desk with Keyboard Tray and Cable Grommet
