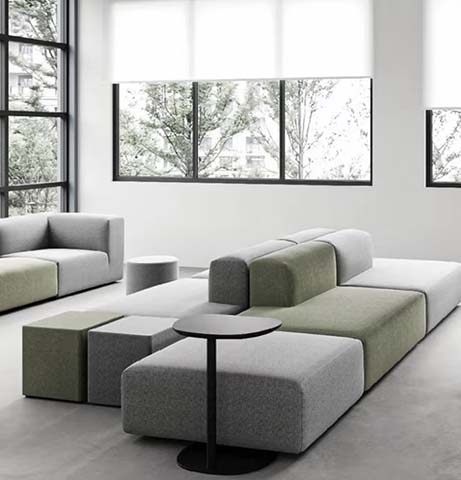

Product supplierModular Block Fabric Lounge Sectional Sofa with Ottomans, Textured woven polyester performance fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4140 × 780 × 870 mm | |
|---|---|---|
| Overall assembled configuration (6-unit layout with ottomans) | 4140 x 780 x 870 mm | |
| Seat height from floor to top of seat cushion | 450 mm | |
| Seat depth from front edge to back cushion face | 600 mm | |
| Single armless seat module dimensions | 1000 x 780 x 450 mm | |
| Back cushion thickness | 180 mm | |
| Ottoman/seat stool module dimensions | 500 x 500 x 400 mm | |
| Integrated C-shape side table dimensions | 400 mm diameter top, 700 mm total height | |
| Seat cushion thickness | 150 mm | |
| Plinth base clear height above floor | 5 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-seat static load capacity | 136 kg | |
|---|---|---|
| Upholstery fabric abrasion resistance | 72500 Martindale cycles | |
| Cushion foam density (seat) | 40 kg/m³ | |
| Cushion foam rebound rate | 60% | |
| Total net weight (6-unit configuration with side tables) | 138 kg | |
| Seam stitching pitch | 30 mm | |
| Structural frame warranty | 3 years | |
| Number of supported standard color finishes | 6 | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Textured woven polyester performance fabric | |
|---|---|---|
| Seat cushion core | High-resilience polyurethane foam with fiber wrap | |
| Back cushion fill | Blown polyester fiber wrap over foam core | |
| Internal load frame | Kiln-dried hardwood and 12mm plywood, corner-blocked and doweled | |
| Support base | Upholstery-wrapped engineered wood plinth, floor-mounted | |
| Side table support structure | 20mm diameter powder-coated black steel tube and base plate | |
| Side table top surface | Matte light grey laminated engineered stone | |
| Modular connecting hardware | Zinc-plated steel alignment clips between adjacent modules | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular reconfiguration | Armless seat, corner, ottoman and side table modules connect with steel clips to form linear, L-shaped or island layouts | |
|---|---|---|
| Cushion design | Loose, non-integrated seat and back cushions rest on plinth base for easy repositioning | |
| Cushion cover maintenance | Hidden zippered cushion covers allow removal for spot cleaning or replacement | |
| Floor protection | Full-length felt glides applied to plinth bottom to prevent floor scratching, no integrated feet or legs | |
| Accessory integration | Freestanding C-shaped side tables slide under seat units to hold beverages or devices without fixed attachment | |
| Ottoman function | Low upholstered ottoman modules serve as footrests, extra casual seating, or impromptu side tables when used with a tray | |
| Sitting posture | Low seat height and deep seat depth support relaxed, reclined casual lounge seating rather than upright task posture | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open office co-working lounge zones | Provides flexible casual seating for informal meetings, breaks and collaborative work | |
|---|---|---|
| Corporate reception and waiting areas | Low-profile modular layout creates welcoming, contemporary guest seating without obstructing sightlines | |
| Residential open-plan living spaces | Reconfigurable units adapt to different room layouts and seating needs for modern homes | |
| Public break-out spaces in education and public buildings | Durable soft seating supports high-traffic casual use by students and visitors | |
| Hospitality lobby and lounge areas | Two-tone neutral finish matches modern hotel and cafe interior design schemes | |
| Showroom and gallery waiting zones | Minimalist block form complements curated display environments without visual clutter | |
| Recommended configuration | Combine seat modules, ottomans and side tables to match space capacity, starting at 4 seats for small lounges |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1022:2018 | Domestic and contract furniture seating stability test standard | |
|---|---|---|
| EN 12520:2015 | Furniture seating strength, durability and safety requirements for contract use | |
| EN 14465:2004 | Upholstery fabric abrasion and performance classification for furniture |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2021 | Lounge seating standard for stability, strength and durability in commercial spaces | |
|---|---|---|
| ANSI/BIFMA X7.1-2021 | Standard for formaldehyde and VOC emissions from office furniture systems | |
| ANSI/BIFMA E3-2019 | Sustainability standard for furniture multi-attribute assessment |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal frame construction | |
|---|---|---|
| GB 20400-2006 | Limit of harmful substances in leather and fabric upholstery, applicable for textile testing | |
| GB/T 19001-2016 | Quality management system guidance for production consistency |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal frame construction; 2. GB 20400-2006: Limit of harmful substances in leather and fabric upholstery, applicable for textile testing; 3. GB/T 19001-2016: Quality management system guidance for production consistency; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
