MOD-OTTO-ARROW-06

Code：1MXB73V1
Request supplier quotes

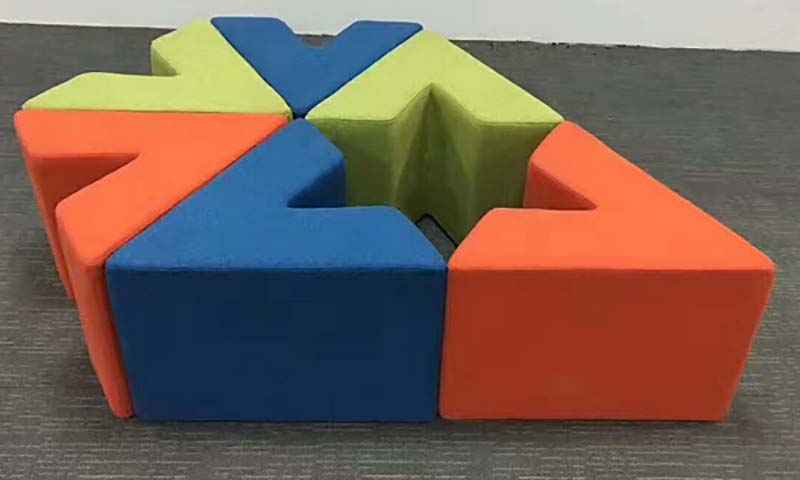

Arrow-Shaped Modular Puzzle Ottoman Set (6-Piece) Key Specifications 2026-08-02 17:41

Popularity: 1
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

MOD-OTTO-ARROW-06

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall assembled set footprint1800 x 1200 x 450 mm
Single ottoman module seat height450 mm
Single arrow-shaped module maximum width700 mm
Single arrow-shaped module maximum depth550 mm
Upholstered seat cushion thickness100 mm
Base frame height below cushion350 mm
Gap between adjacent assembled modules10 mm
Floor contact footprint per module650 x 500 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Per-seat static load capacity120 kg
Total set weight reference48 kg
Sitting positions in assembled configuration6
Foam density reference30 kg/m³
Expected fabric abrasion resistance40000 rubs
Module stackability for storage2 tiers
Total set net weight48 kg
Max concurrent seated users in star layout6 users
Seat foam core density30 kg/m³
Upholstery fabric Martindale abrasion resistance40000 rubs
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer upholsteryPolyester blend woven fabric, solid color
Seat cushion coreHigh-resilience polyurethane foam
Internal structural framePlywood and solid wood frame
Base bottom panelNon-woven fabric dust cover with plastic glides
Edge reinforcementFoam edge banding with sewn fabric piping
Module connector systemFriction-fit puzzle geometry without hardware
Color set composition2x royal blue, 2x lime green, 2x orange
Top and side upholsteryPolyester blend woven fabric with matte finish, full-wrap sewn construction
Module bottom panelBlack non-woven fabric dust cover with stapled edge attachment
Module interlock interfacePrecision-cut foam and frame matching arrow profile, friction-fit contact without hardware
Bottom floor protectionHDPE plastic circular glides, 4 units per module, press-fitted to frame bottom
Upholstery seam constructionDouble-stitched locked seam at all fabric joints, 5mm stitch pitch
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Modular reconfiguration6 independent arrow-shaped units can be rearranged into star, linear, L-shaped or scattered layouts
Multi-person casual seatingSupports up to 6 adults in the full assembled star configuration
Footrest functionEach unit doubles as a low footrest for lounge seating
Temporary table useFlat rigid top can hold trays or light objects when used with a table mat
Tool-free assemblyModules are placed and aligned by hand; no fasteners or assembly hardware needed
Indoor use onlyFabric and foam construction is intended for dry interior environments
Color-block visual brandingThree-color arrangement supports custom corporate or space theme color schemes
Footrest auxiliary useEach unit serves as a low footrest compatible with standard lounge chairs and sofas
Temporary light-load table useFlat rigid top surface supports trays, laptops or light items when paired with a rigid table mat
Tool-free deploymentModules are aligned and joined by hand, no assembly hardware or tools required for set formation
Indoor dry-environment useFabric and foam construction is designed for climate-controlled dry interior spaces
Custom color configurationMulti-color modular design supports customized color combinations to match space branding
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Single carton dimensions800 x 600 x 500 mm
Single carton gross weight18 kg
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Office breakout and lounge areasIdeal for casual meeting, waiting and collaborative huddle spaces in open-plan offices
School and library common zonesSuitable for student collaboration, reading corners and activity areas
Exhibition hall and lobby waitingWorks as feature seating in reception areas, trade show booths and museum lobbies
Co-working and maker spacesSupports ad-hoc team discussions and flexible workspace layout changes
Retail store customer rest areasProvides compact colorful seating in fashion stores, bookshops and electronics showrooms
Open-plan office breakout and lounge areasSuitable for casual meetings, waiting breaks and small collaborative huddles in modern office spaces
School and library common activity zonesIdeal for student group discussions, reading corners and interactive activity areas in educational facilities
Exhibition hall and lobby reception areasWorks as feature waiting seating in building lobbies, trade show booths and museum public areas
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1021-12014 Furniture - Assessment of the ignitability of upholstered furniture - Part 1: Ignition source: smouldering cigarette
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.
STANDARD S3

China GB Standards

Standards applicable to China-market projects

No standards data is available for this market.
Standard Tender Description
This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
