PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4800 × 2200 × 720 mm
Single curved seating module dimensions	1200 x 1000 x 420 mm
Seat height from finished floor	420 mm
Integrated divider/backrest height above seat	300 mm
Seat cushion usable depth per position	680 mm
Seat width per individual seating position	600 mm
Matching round pedestal side table dimensions	500 x 500 x 500 mm
Floor clearance under seating modules	0 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single seating module static load capacity	227 kg
Seat cushion foam density	35 kg/m³
Backrest/divider foam density	25 kg/m³
Foam rebound rate	45%
Foam compression permanent deformation	10%
Fabric abrasion resistance	50000 double rubs
Total seating capacity for full assembled set	8 persons
Modular connector connection strength	50 kg per connector
Full set net weight	280 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and divider upholstery fabric	Commercial grade two-tone wear-resistant breathable fabric, 1mm thickness
Seat cushion core filling	High-resilience polyurethane foam, 120mm thickness
Backrest/divider filling	High-density polyurethane foam, 100mm thickness
Internal support frame	Powder-coated 1.2mm thick steel tube inner frame
Base contact layer	3mm thick non-slip silicone floor protection pads
Inter-module connectors	PP plastic locking alignment clips with metal reinforcement
Matching side table top	15mm thick matte white painted MDF with rounded edges
Side table support structure	30mm diameter powder-coated white steel pole with round weighted steel base
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular configuration capability	Interlocking modules reconfigure into linear, arc, S-shape or custom serpentine layouts
Seating orientation support	Double-sided seating with integrated curved dividers separating adjacent positions
Floor protection feature	Full perimeter non-slip silicone base pads prevent scratching polished hard floors
Assembly requirement	Modules connect via aligned push-lock clips with no tools required for reconfiguration
Seating ergonomic support	420mm seat height supports relaxed casual lounge posture for extended waiting periods
Matching table integration	Portable pedestal side tables position adjacent to seating for placing drinks or devices
Edge safety design	All upholstered edges feature 50mm radius rounded soft padding to eliminate sharp impact points
Upholstery maintenance	Stain-resistant fabric surface allows spot cleaning with mild detergent for high-traffic public areas
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Commercial office lobby waiting areas	Serpentine layout accommodates multiple visitors without blocking circulation paths
Public exhibition and event spaces	Modular reconfiguration supports flexible temporary seating layouts for events
Creative co-working open lounge zones	Two-tone modern design complements casual collaborative work spaces
Shopping mall and retail customer rest zones	Low-profile soft seating provides comfortable rest stops for high-traffic retail areas
Medical and service center waiting areas	Durable easy-clean upholstery and spaced dividers support public waiting use
Education campus common areas	Flexible configuration adapts to student gathering and informal study spaces
Hotel and hospitality reception zones	Curved organic form creates welcoming non-formal seating for guests
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 13759:2012	Domestic and contract furniture — Seating — Test methods for safety, strength and durability
EN 1021-1:2014	Upholstered furniture — Assessment of ignitability — Cigarette ignition source

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2020	Standard for lounge seating, applicable to public/reception seating strength and durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to inner structural components
GB 18584-2001	Limit of harmful substances for wooden furniture, applicable to formaldehyde emission limits
GB/T 1952.1-2012	General technical requirements for upholstered sofas, applicable to seating durability and safety
GB 20286-2006	Fire performance requirements for upholstered furniture in public places, applicable to flame retardant standards

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to inner structural components;
2. GB 18584-2001: Limit of harmful substances for wooden furniture, applicable to formaldehyde emission limits;
3. GB/T 1952.1-2012: General technical requirements for upholstered sofas, applicable to seating durability and safety;
4. GB 20286-2006: Fire performance requirements for upholstered furniture in public places, applicable to flame retardant standards;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LS-SER-OGG-8MOD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LS-SER-OGG-8MOD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LS-SER-OGG-8MODOpen Export Tool

Quick Actions

Post an RFQ

Product Description

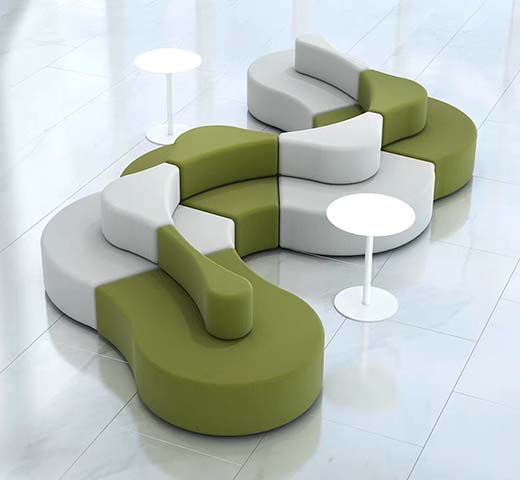

This two-tone olive green and light grey serpentine modular lounge seating set delivers a streamlined, low-profile, legless public seating solution defined by soft curved forms and flexible layout potential. When assembled as a full S-shaped configuration, it forms a continuous, flowing seating arrangement with integrated curved dividers that separate individual positions, supporting double-sided access without obstructing surrounding circulation paths. Matching round pedestal side tables finished in coordinated painted metal and matte white rounded-edge tops complement the seating’s modern aesthetic, positioned adjacent to seats to hold personal items. Each set seats 8 people in its full S-shaped form. The seating is built for high-traffic public use, with a 1.2mm thick powder-coated steel tube internal frame supported by 14mm bent plywood seat boards, upholstered in 1mm thick commercial-grade two-tone wear-resistant breathable fabric. Seat cushions are filled with 120mm thick high-resilience polyurethane foam, while backrests and integrated dividers use 100mm thick high-density polyurethane foam, with all upholstered edges finished in 50mm radius rounded soft padding to eliminate sharp impact points. Interlocking PP plastic clips with metal reinforcement connect individual modules, secured without tools for reconfiguration, and full perimeter 3mm thick non-slip silicone pads line the base to prevent scratches on polished hard floors, with zero floor clearance under units for a grounded, stable profile. The included side tables feature a 15mm thick matte white painted MDF top supported by a 30mm diameter powder-coated white steel pole and weighted round steel base for stable placement. Users can reconfigure interlocking modules into linear, arc, S-shape, or custom serpentine layouts to suit evolving space needs. The 420mm seat height supports relaxed, casual posture for extended waiting, while the fabric surface is durable and easy to clean for frequent public use. This set is well suited for a wide range of commercial and shared spaces, including commercial office lobby waiting areas, public exhibition and event spaces, creative co-working open lounge zones, shopping mall and retail customer rest zones, medical and service center waiting areas, and education campus common areas that support student gathering and informal study. For procurement planning, note that each set ships in 2 cartons, with a reference assembly time of 40 minutes per unit, allowing for efficient deployment across multiple sites or flexible rearrangement as space demands change.

Two-Tone Olive Green Light Grey Serpentine Modular Lounge Seating Set Specifications
